General Specifications

General Specifications

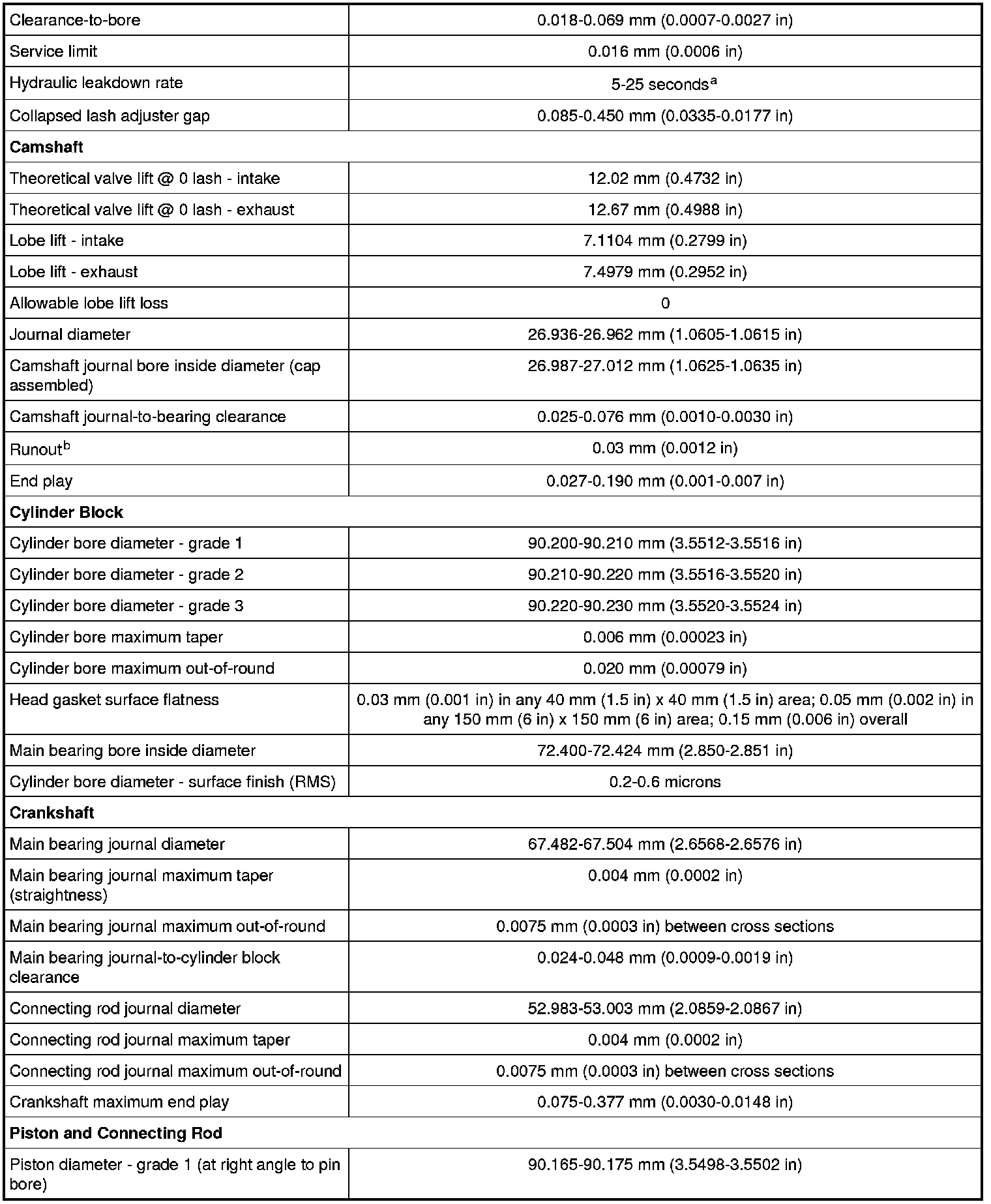

a Time required for the plunger to leak down 1.6 mm of travel with 222 N force and leak-down fluid in the lash adjuster.
b Full indicator measurement on all journals when supported on front and rear journals (4 places).
