Home >> Ford >> 2009 >> Taurus FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

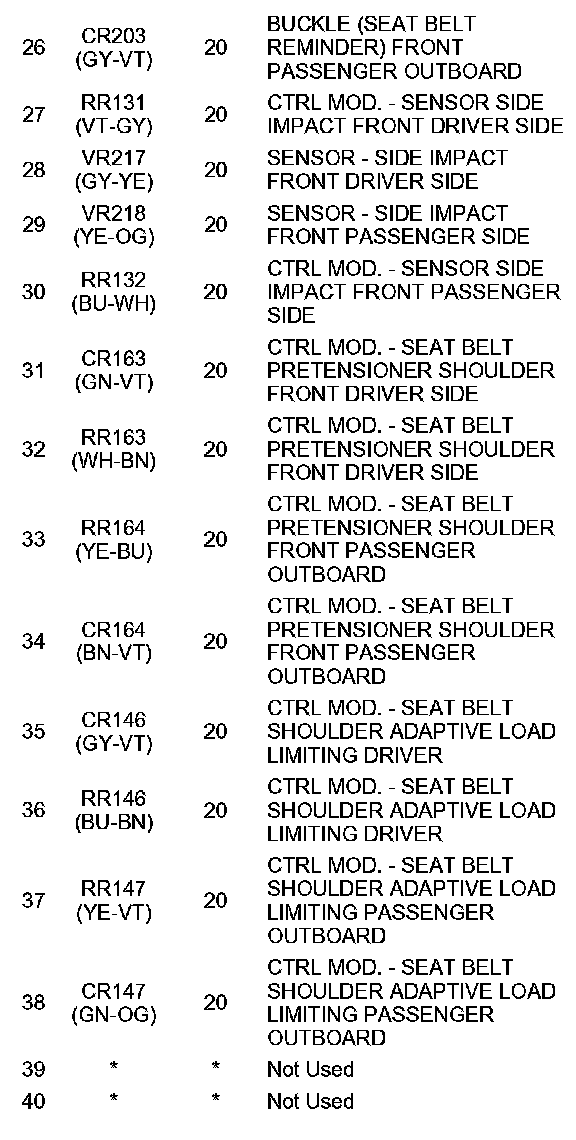

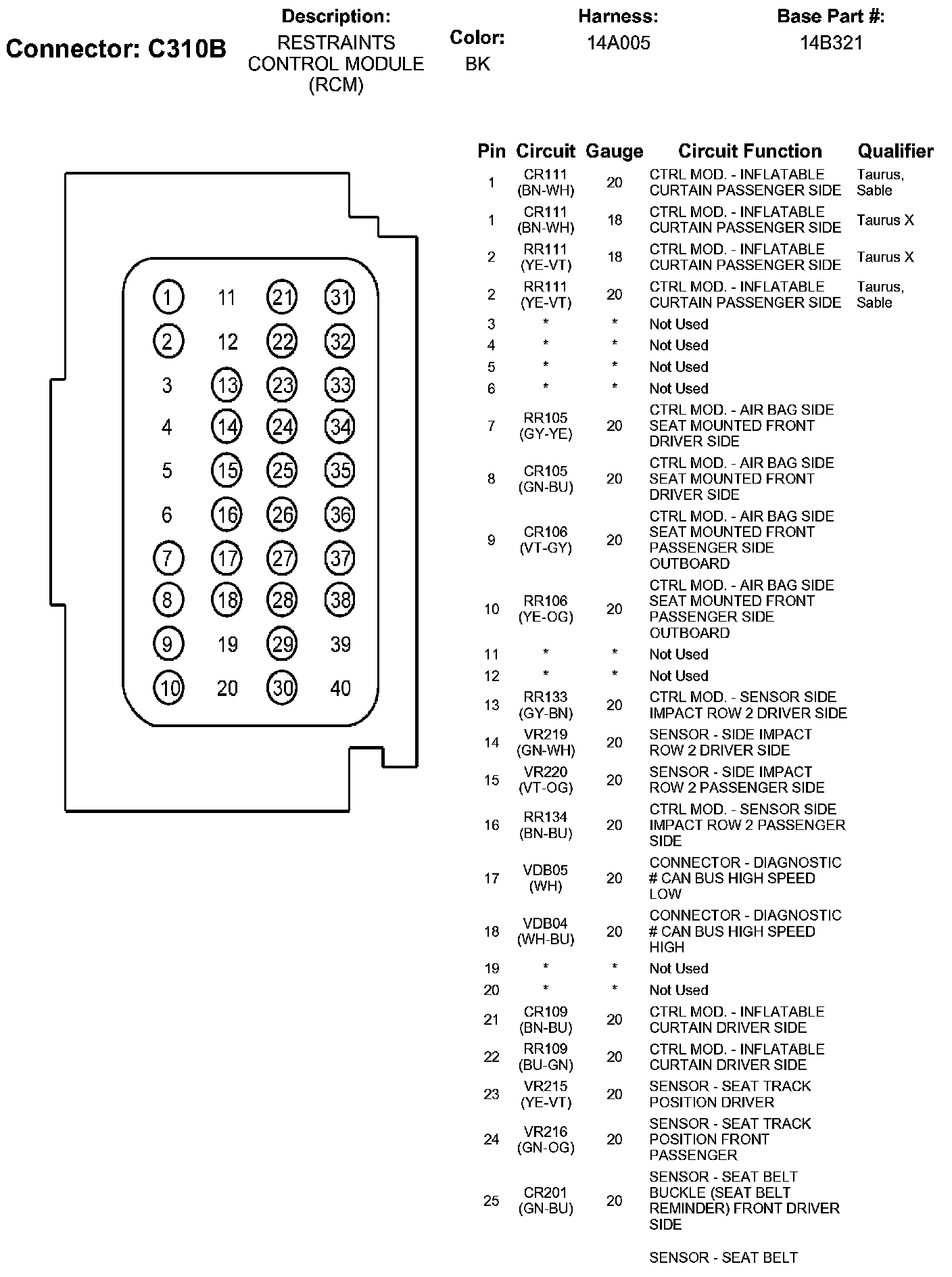

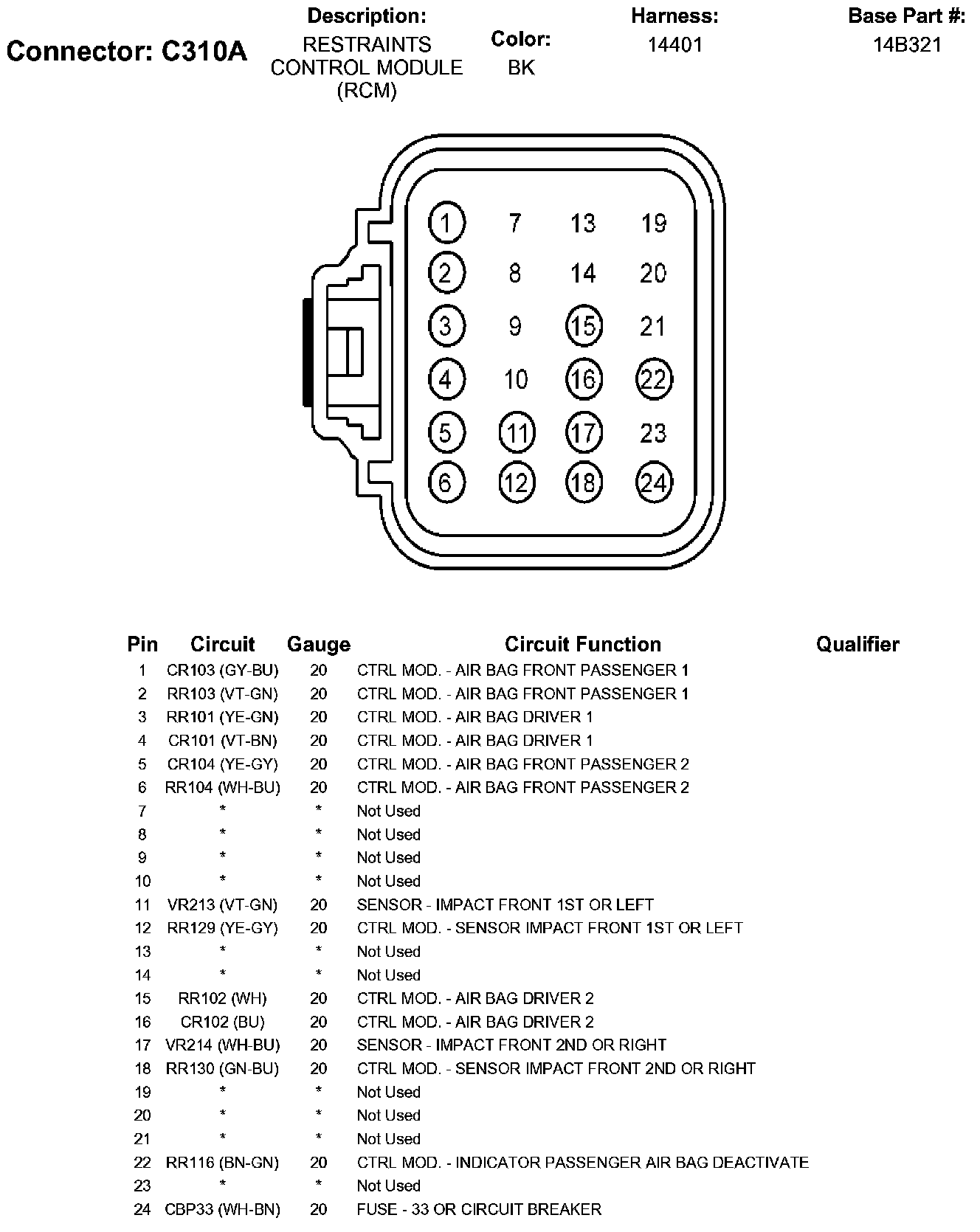

Part 1:



Part 2:
