Home >> Ford >> 2009 >> Ranger 2WD L4-2.3L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

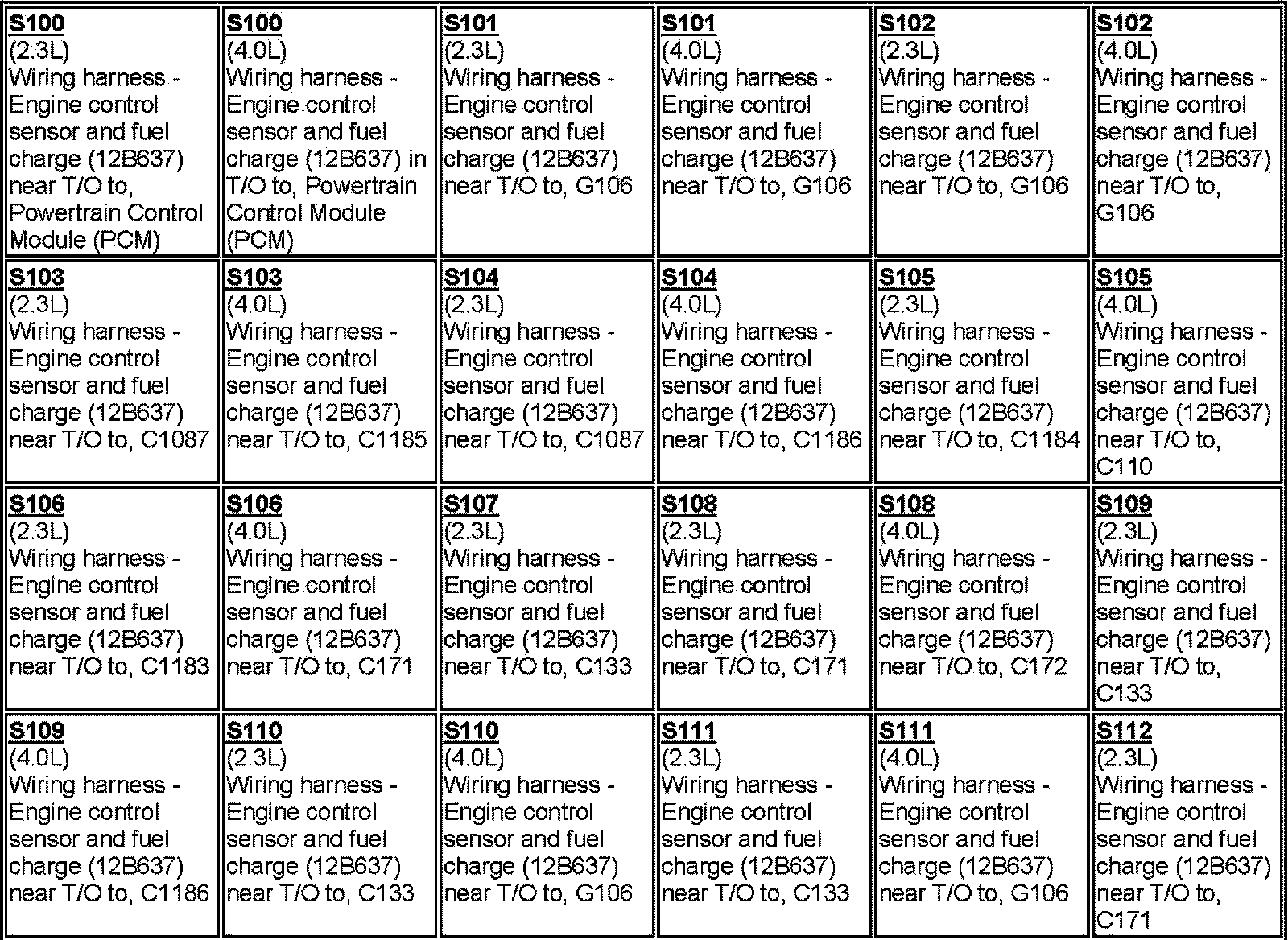

S100-S112:

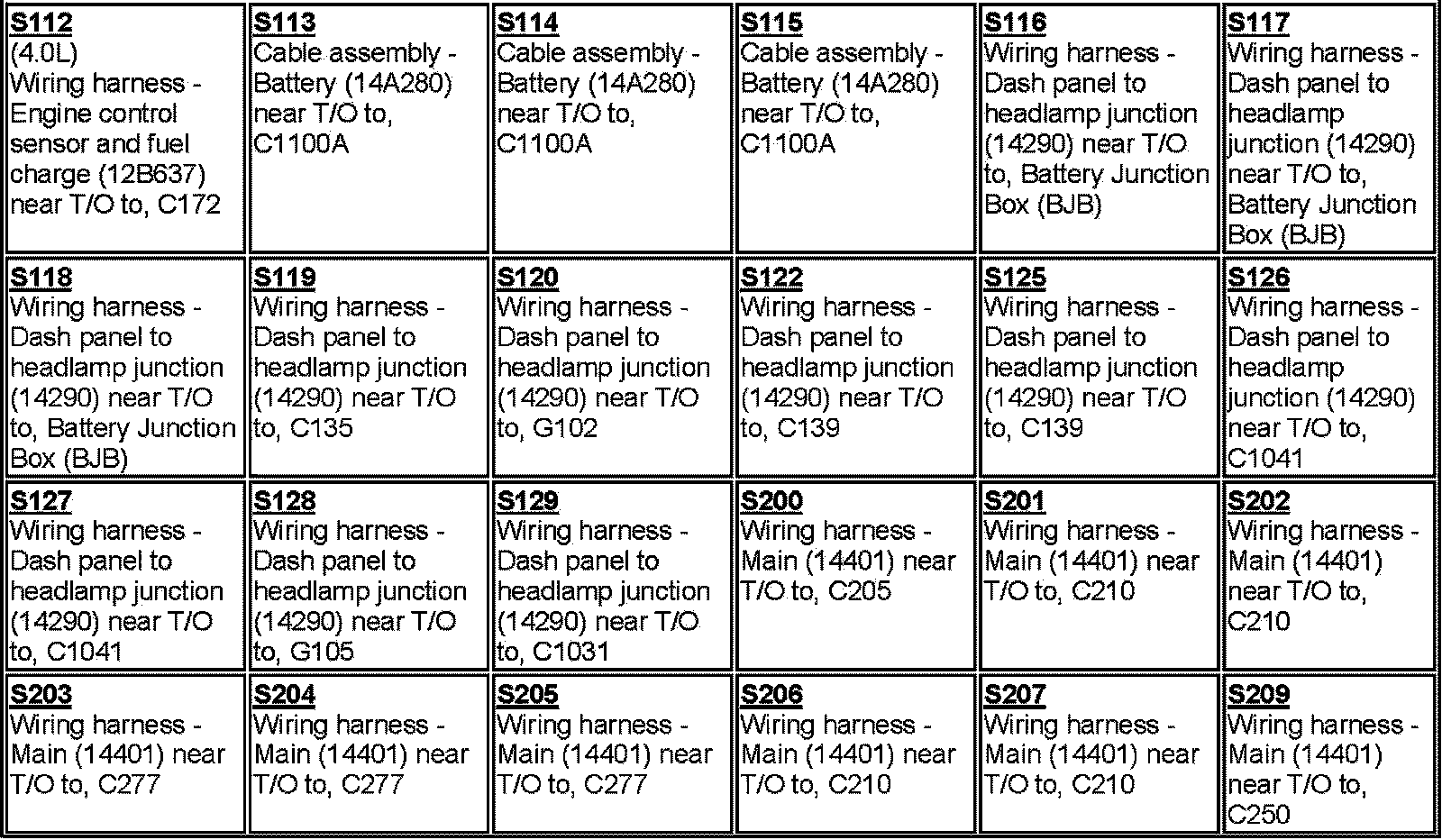

S112-S209:

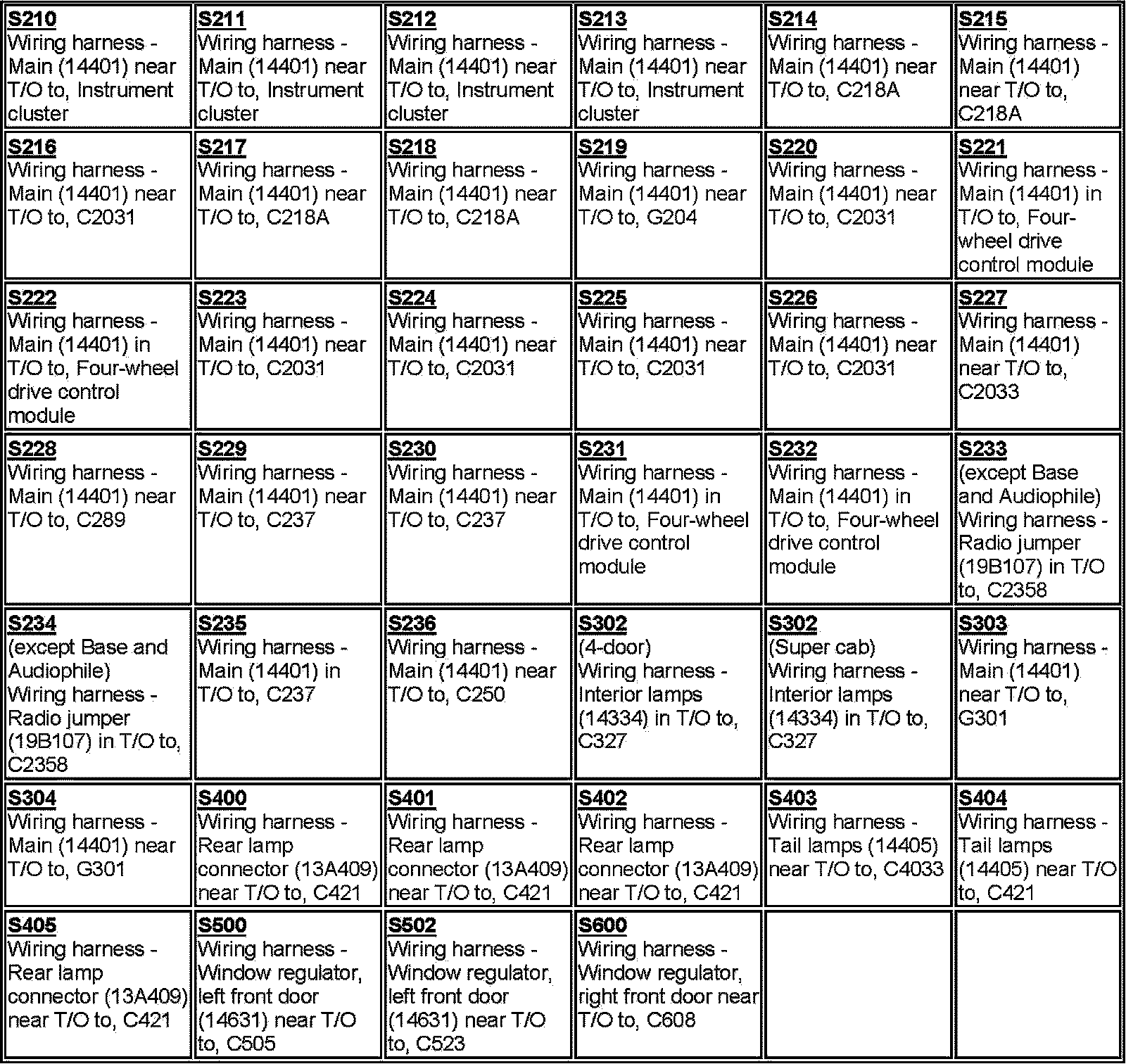

S210-S600:
