Engine Ignition Components - Exploded View




Engine Ignition Components - Exploded View

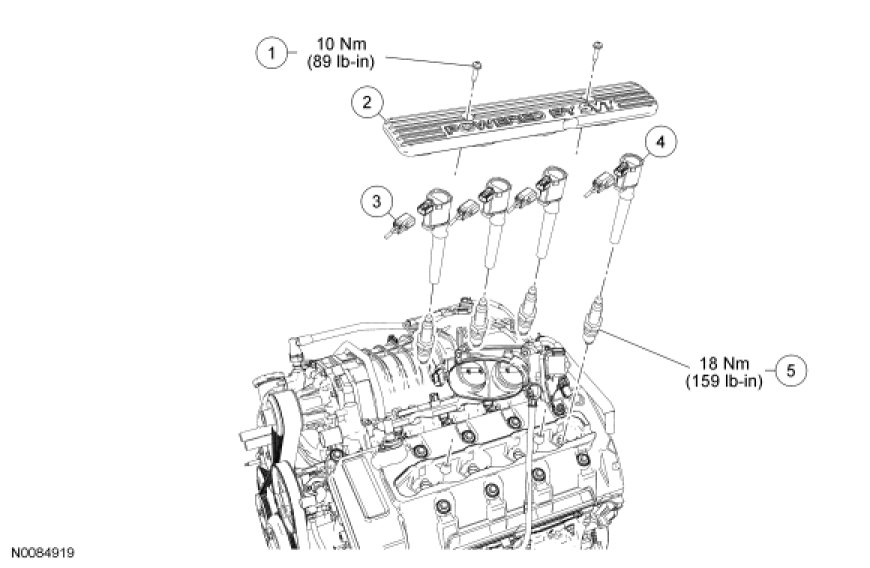

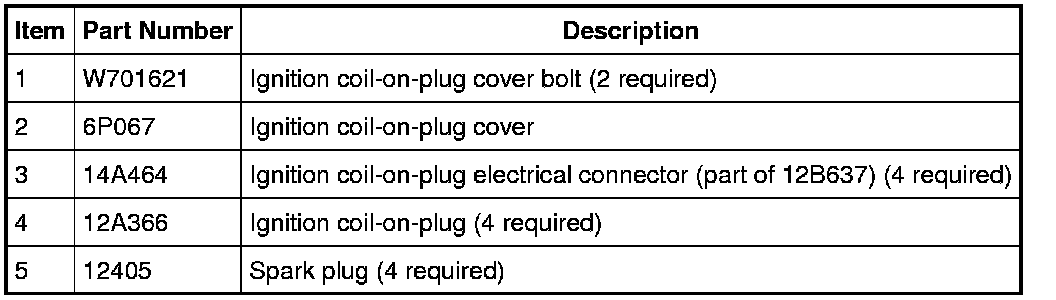

LH Ignition Components

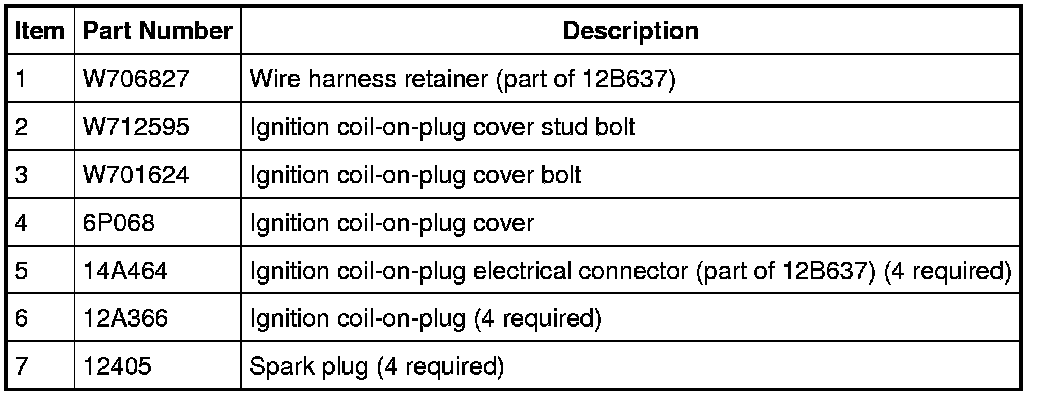

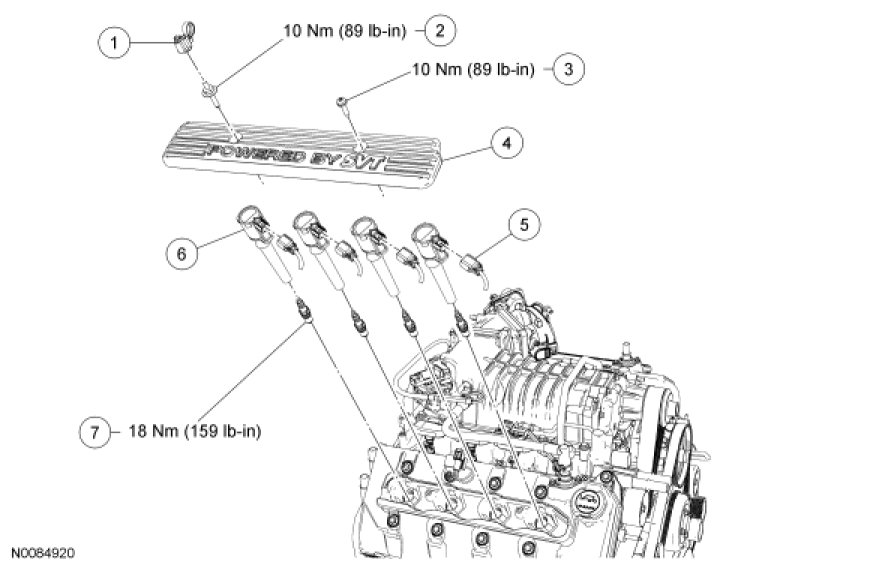

RH Ignition Components









1. For additional information, refer to the procedures.
