Seat Temperature Control Module: Service and Repair

Seat - Exploded View, Front

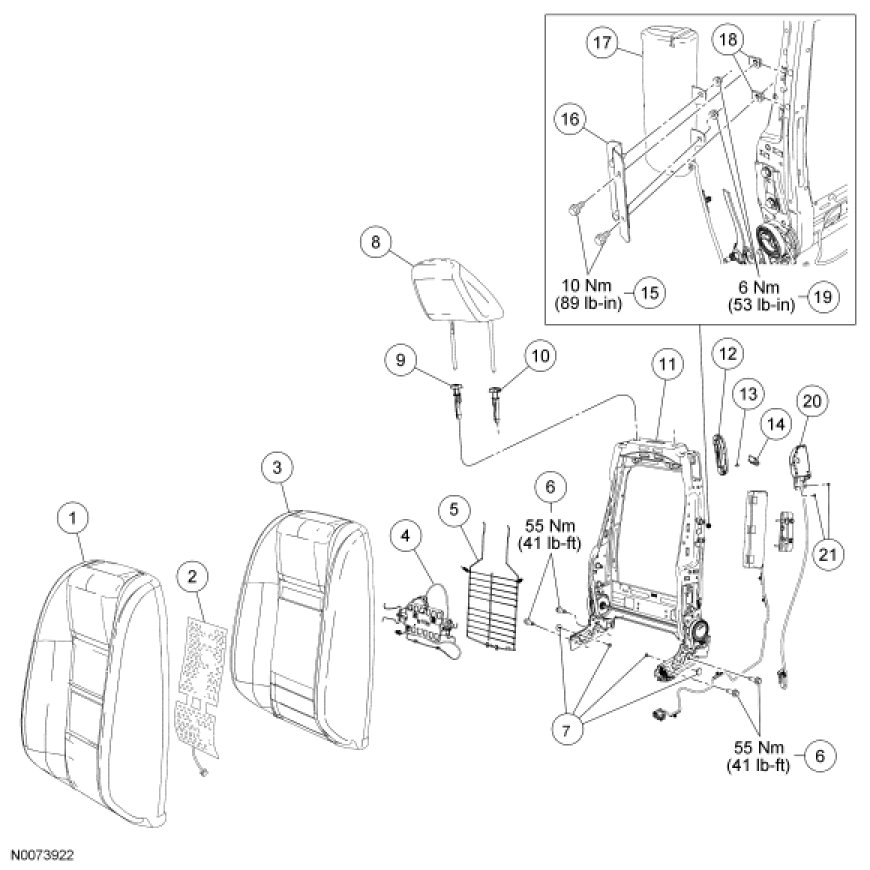

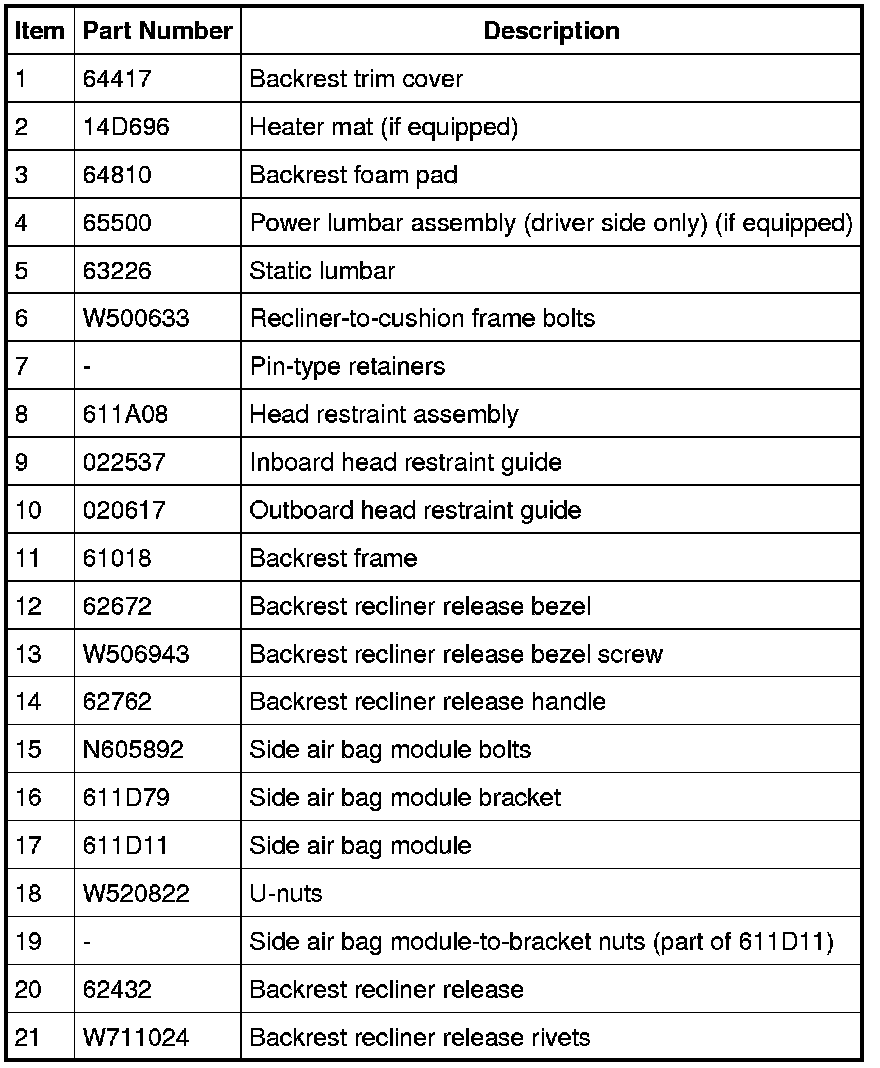

Front Seat Backrest

NOTE: LH shown, RH similar.

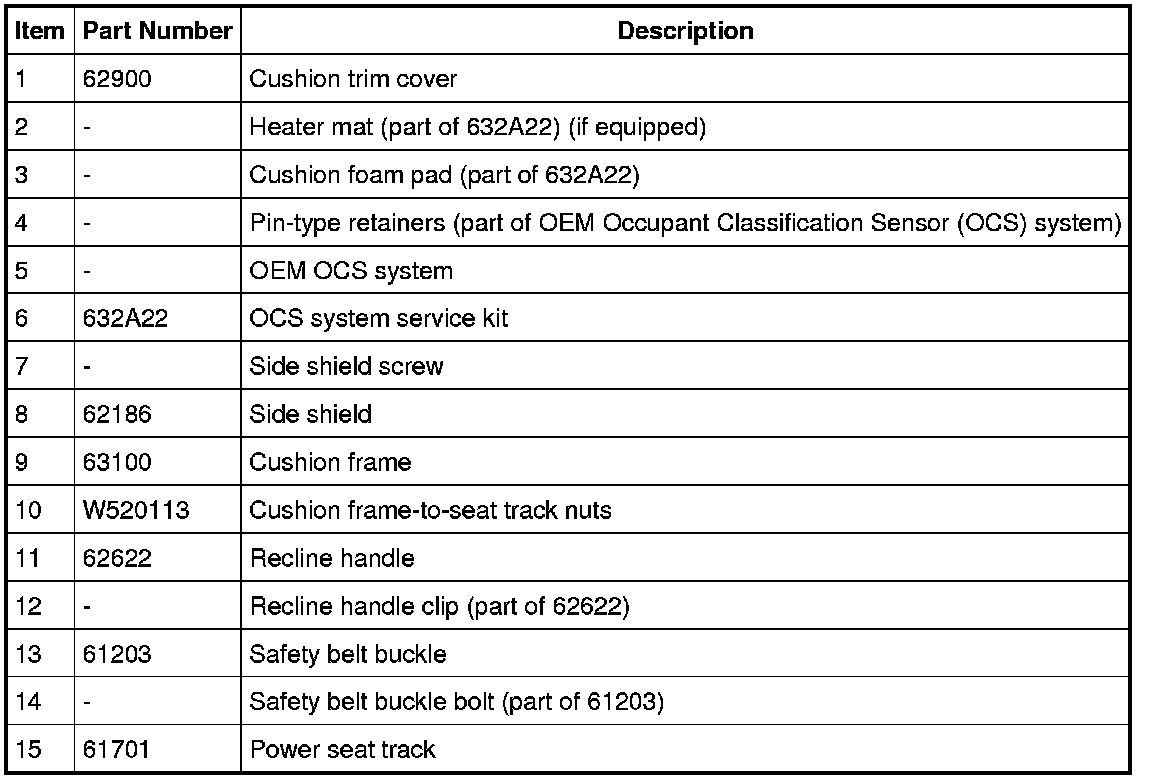

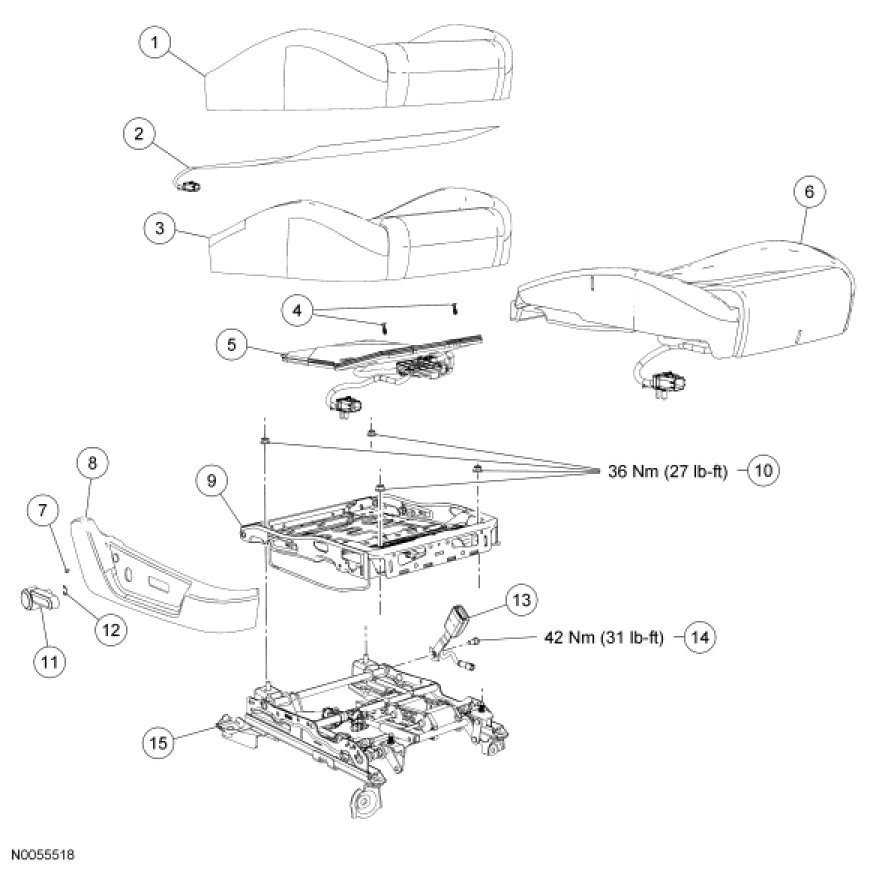

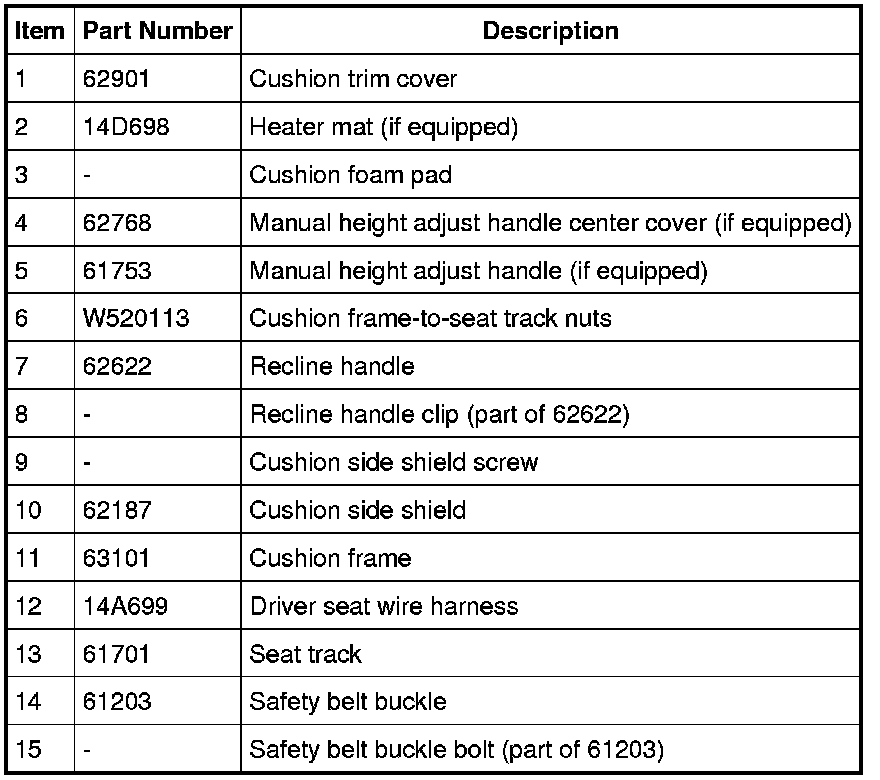

Driver Power Front Seat Cushion

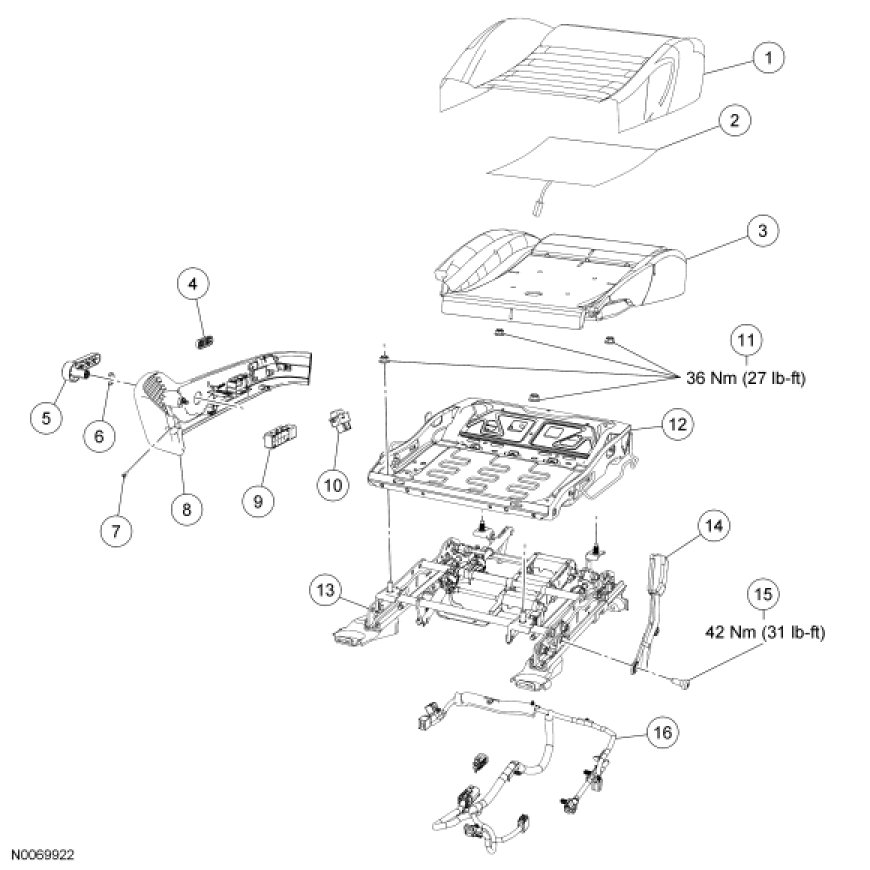

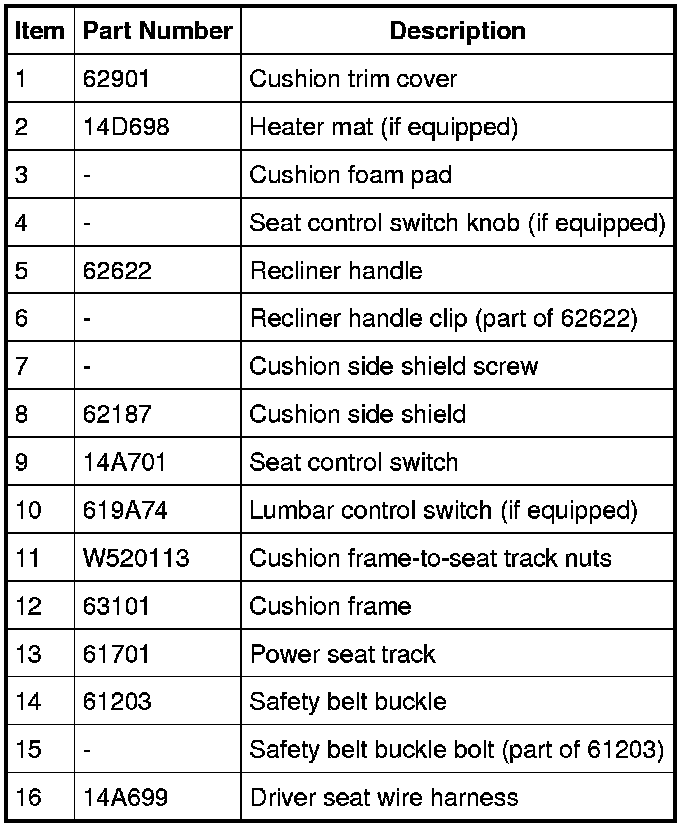

Driver Manual Front Seat Cushion

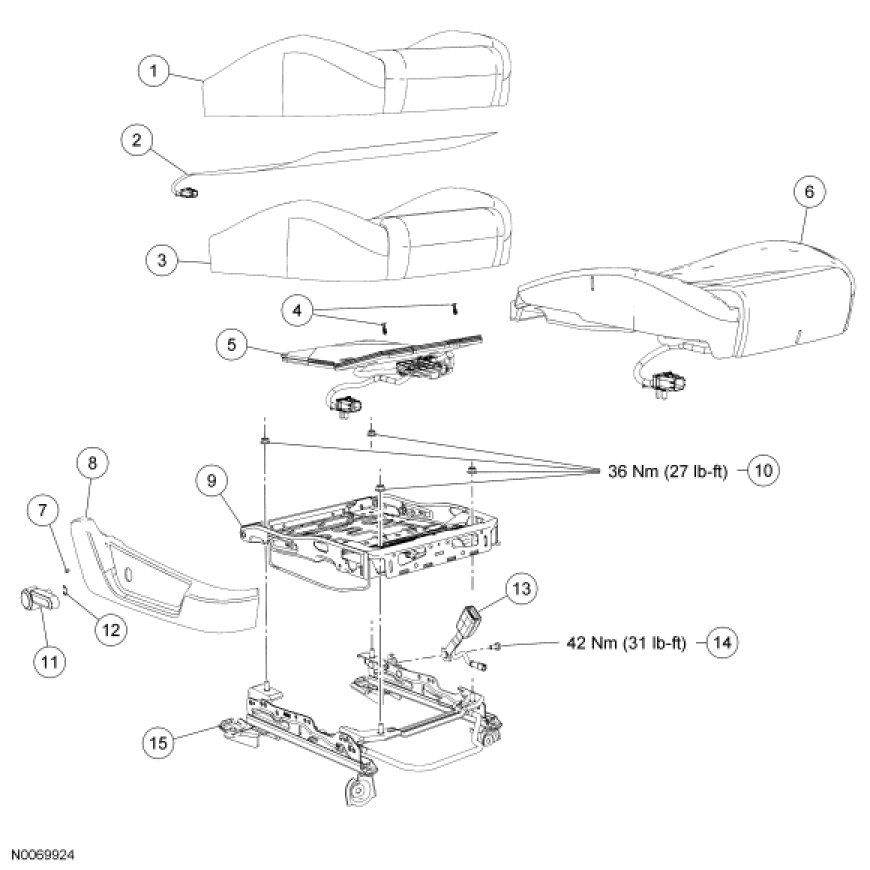

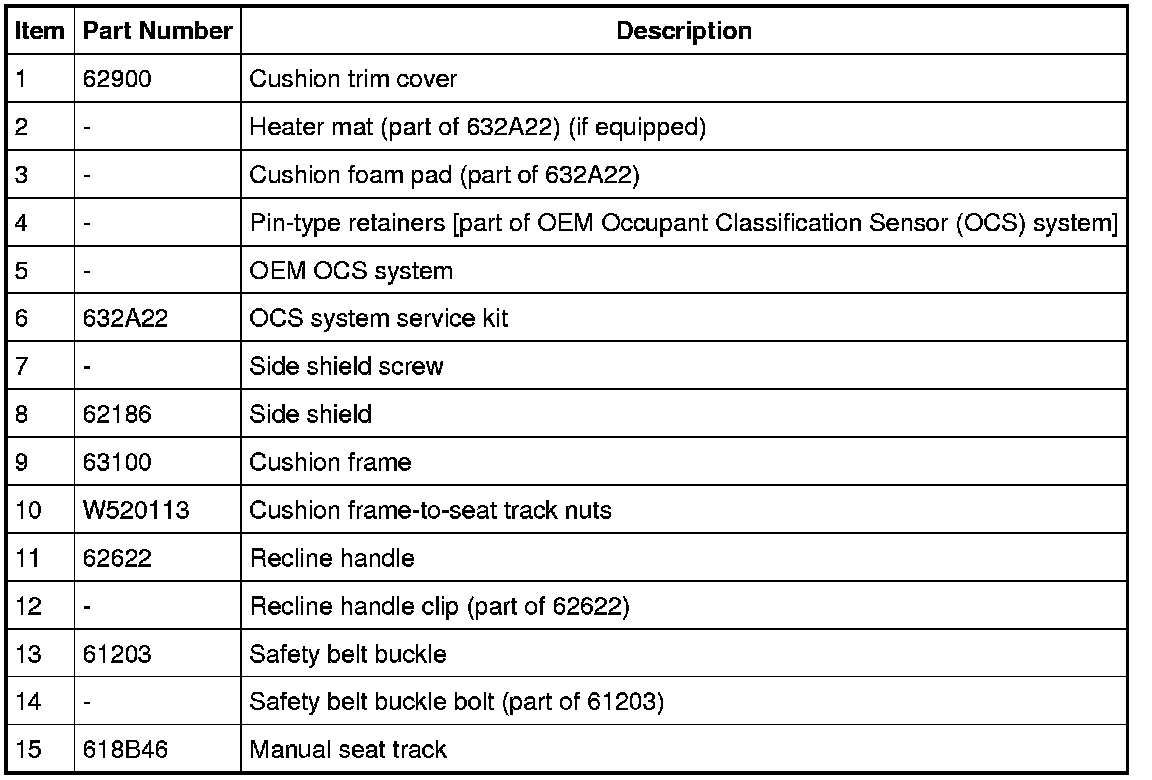

Passenger Manual Front Seat Cushion

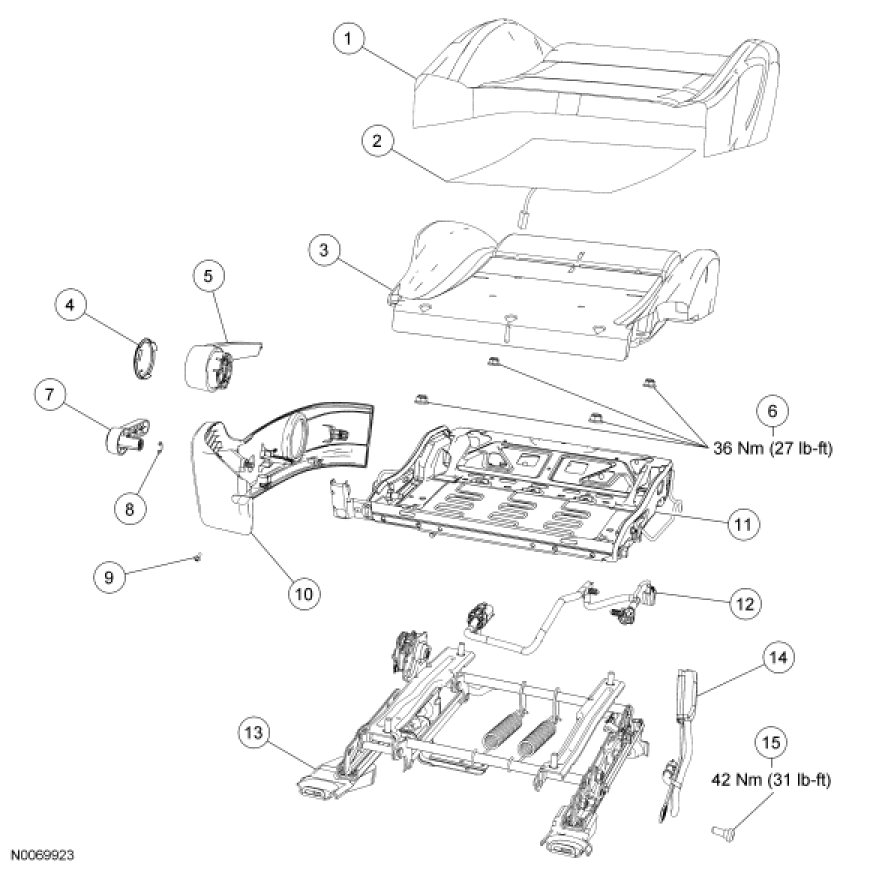

Passenger Power Front Seat Cushion









1. For additional information, refer to the procedures.
