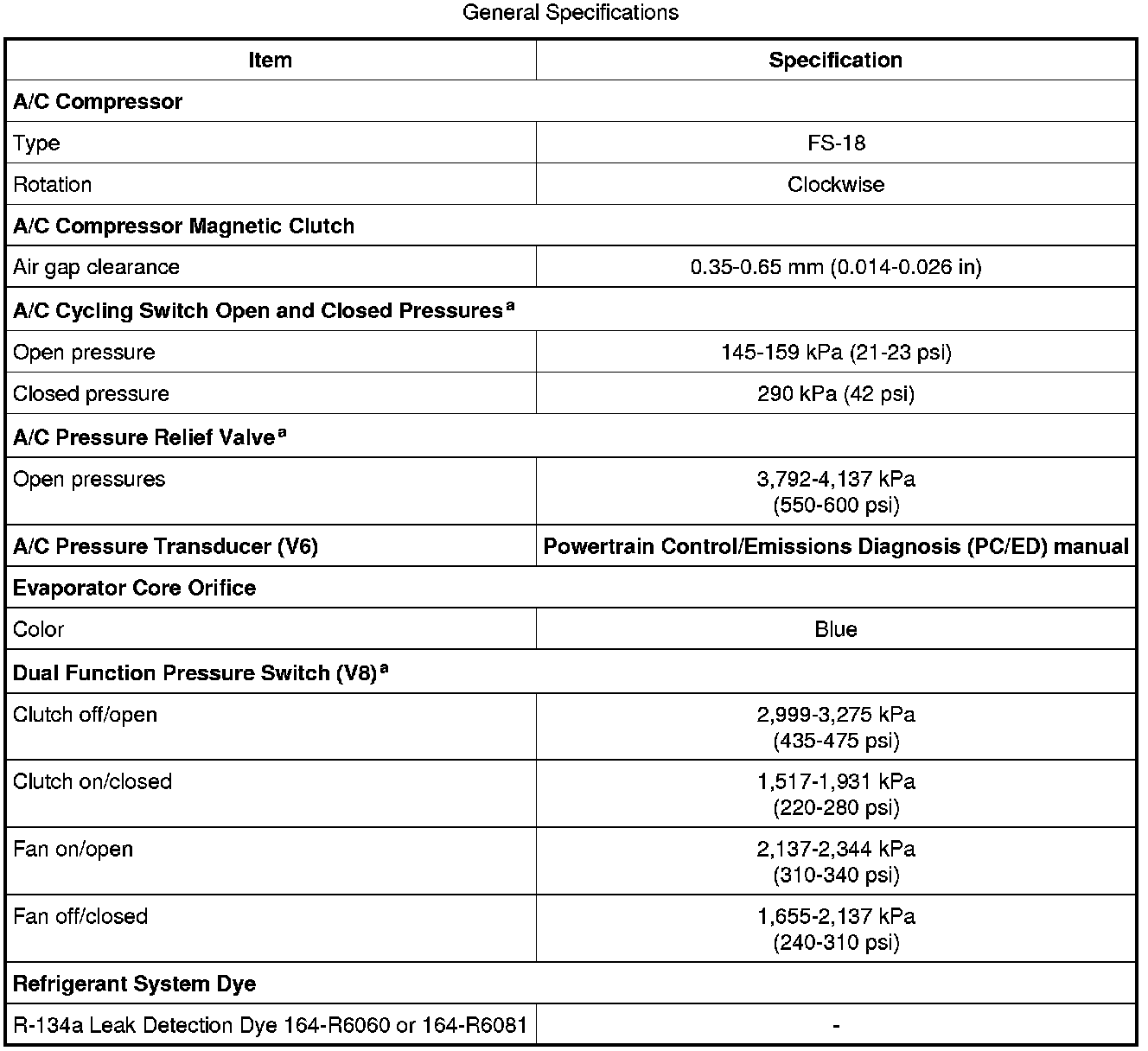

General Specifications

a Manifold gauge set pressures may vary slightly depending on the distance between the service gauge port valve and the A/C pressure relief valve, the A/C cycling switch, the A/C pressure transducer (V6) and the dual function pressure switch (V8) location.
