Oil Pump, Engine
Oil Pump, Engine

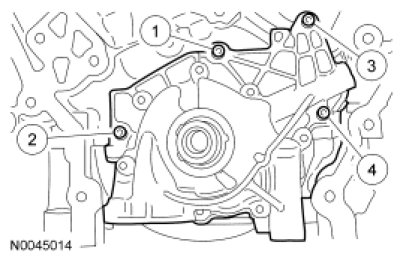

Position the oil pump and install the 4 bolts.
Tighten in the sequence shown to
10 Nm (89 lb-in).
