Home >> Ford >> 2009 >> Fusion FWD L4-2.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Oil Pan, Engine

Oil Pan, Engine

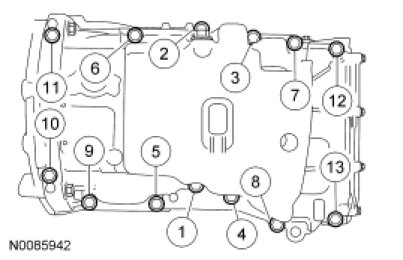

Tighten the oil pan bolts in the sequence shown.
Tighten to 25 Nm (18 lb-ft).
