Ford
>>
2009
>>
Fusion FWD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Induction System
>>

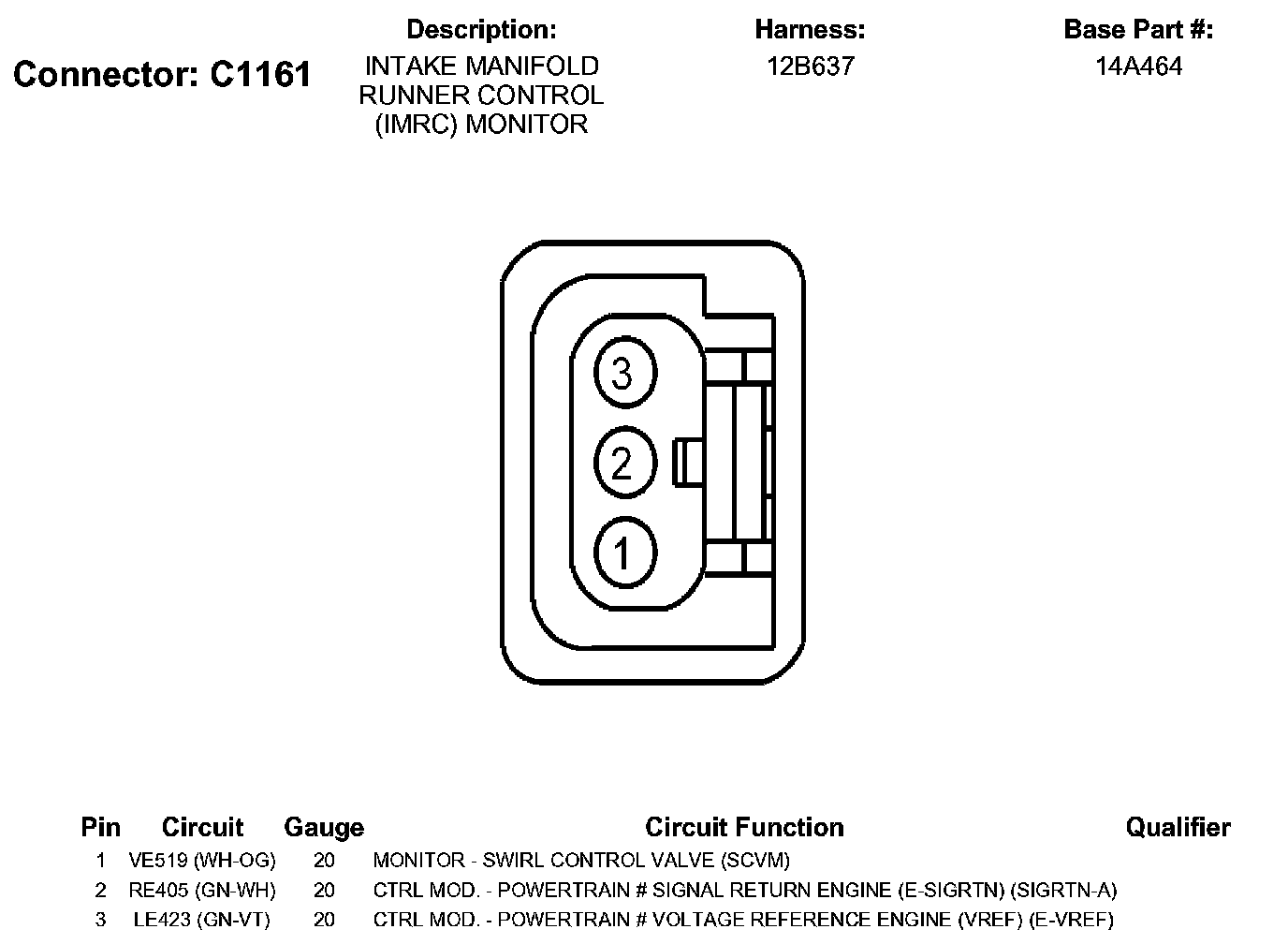

Variable Induction Control Module
Variable Induction Control Module
