Home >> Ford >> 2009 >> Fusion FWD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

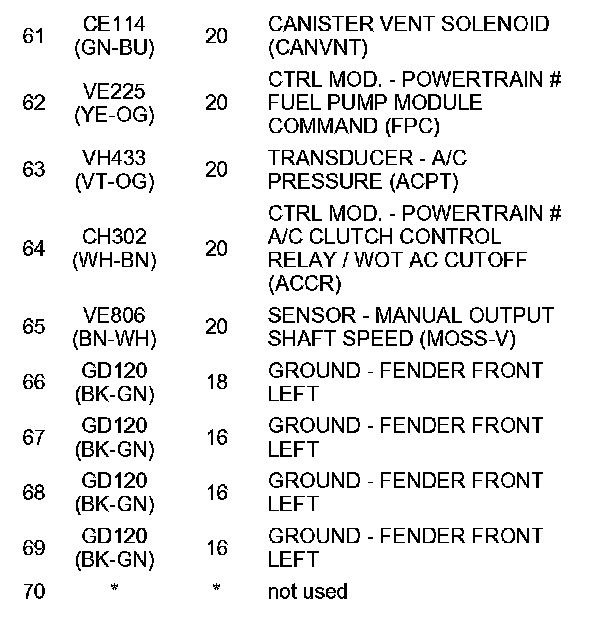

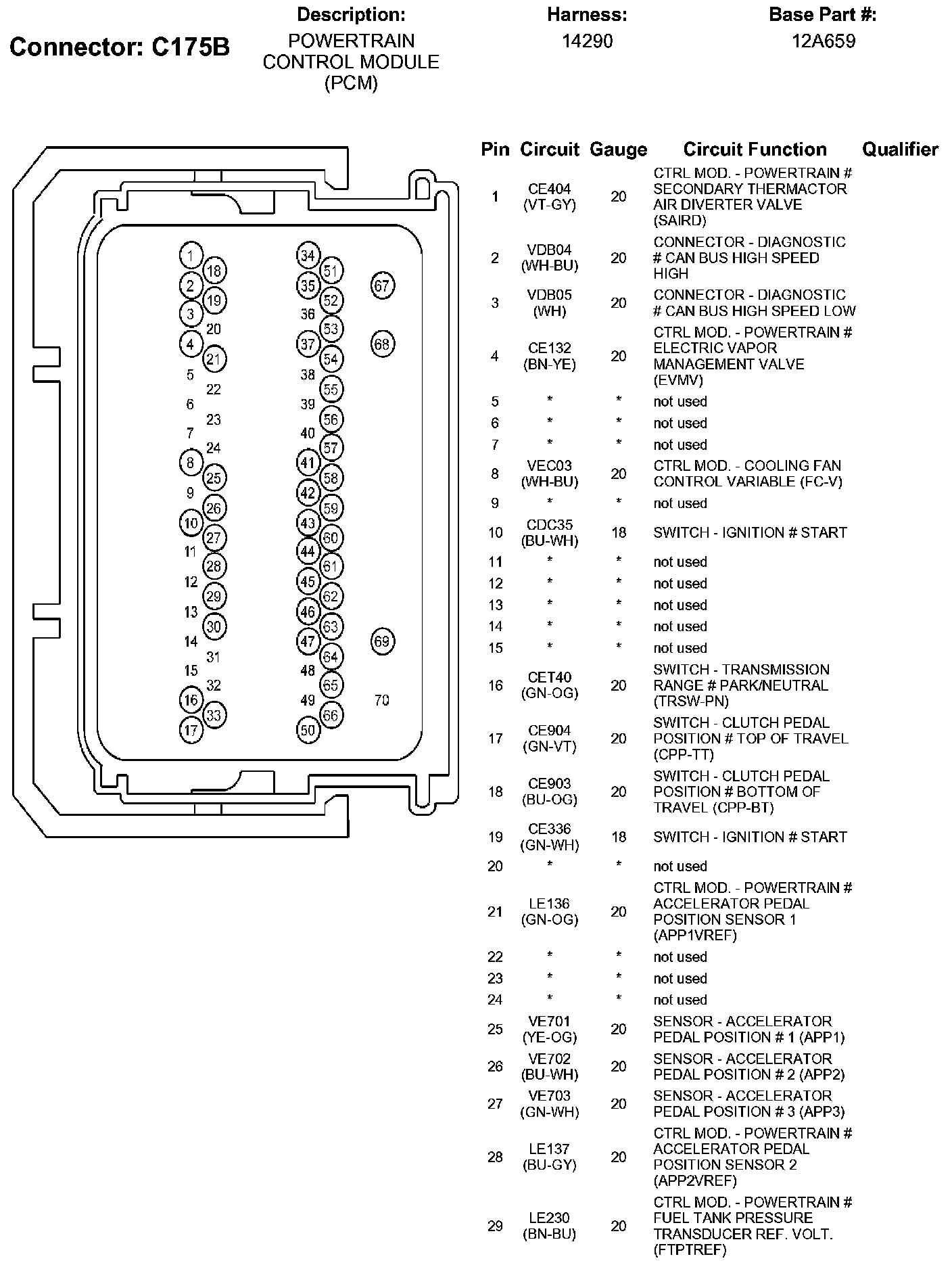

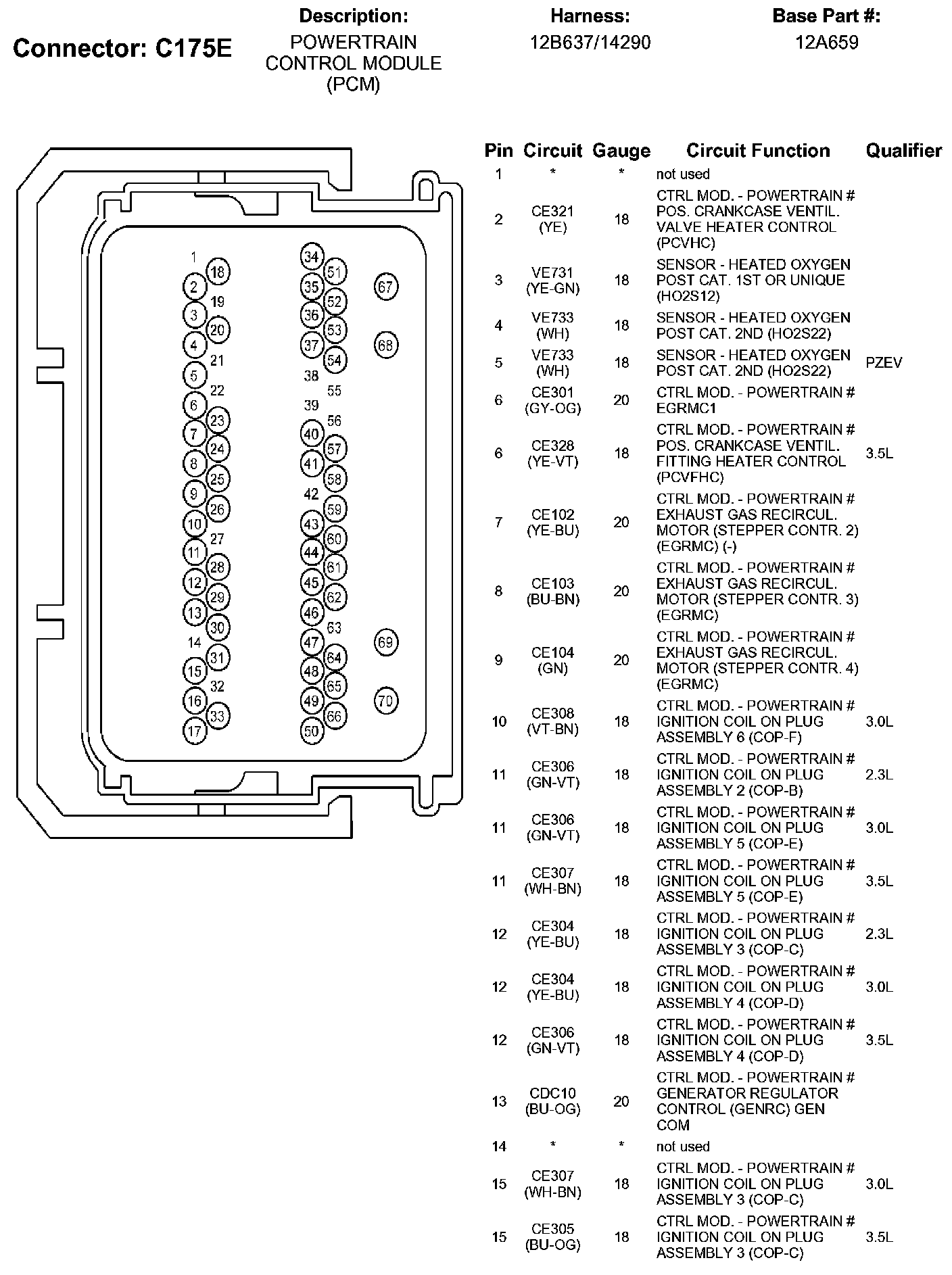

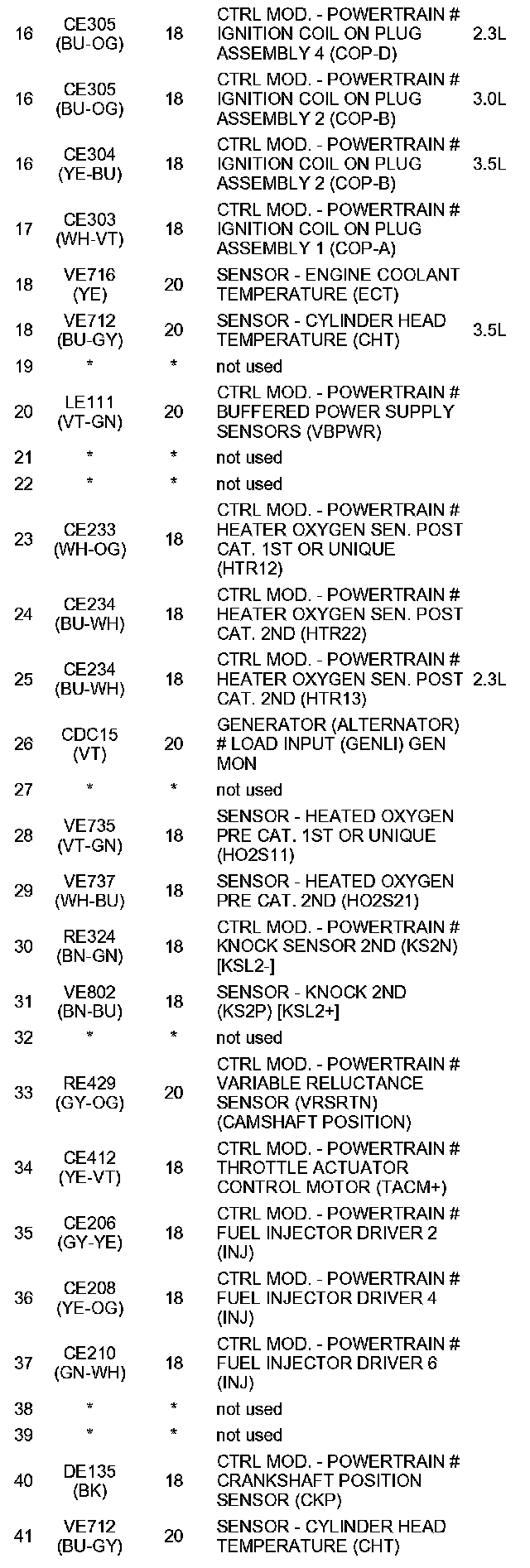

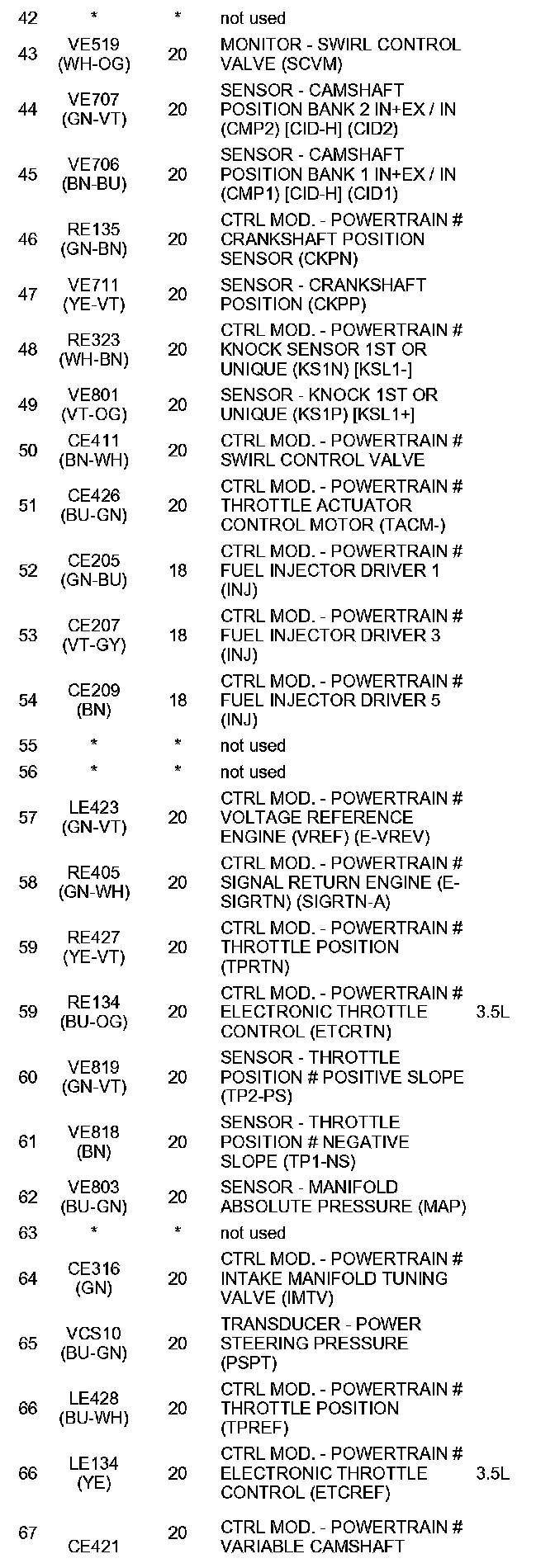

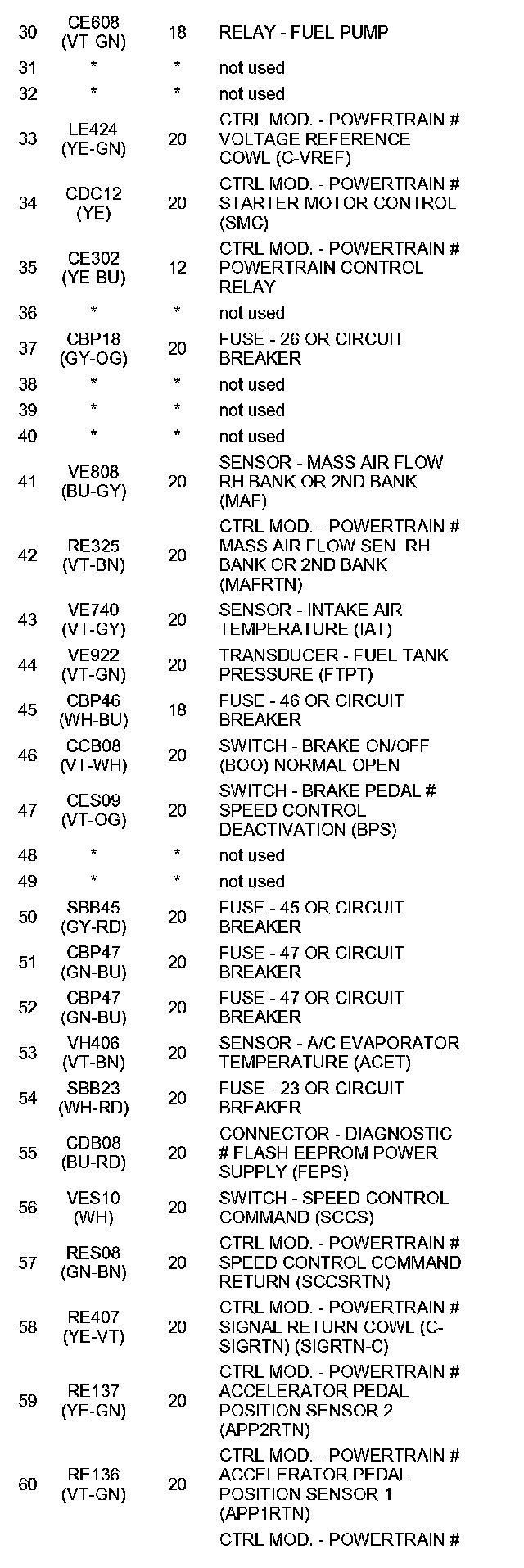

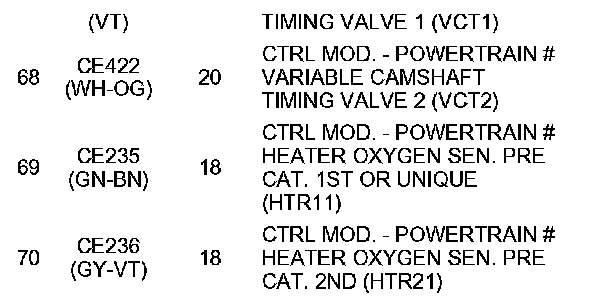

Engine Control Module

Part 1:

Part 2:

Part 3:

Part 1:

Part 2:

Part 3:

Part 4:
