Emission Control Systems: Diagrams




Vehicle Emission Vacuum Routing

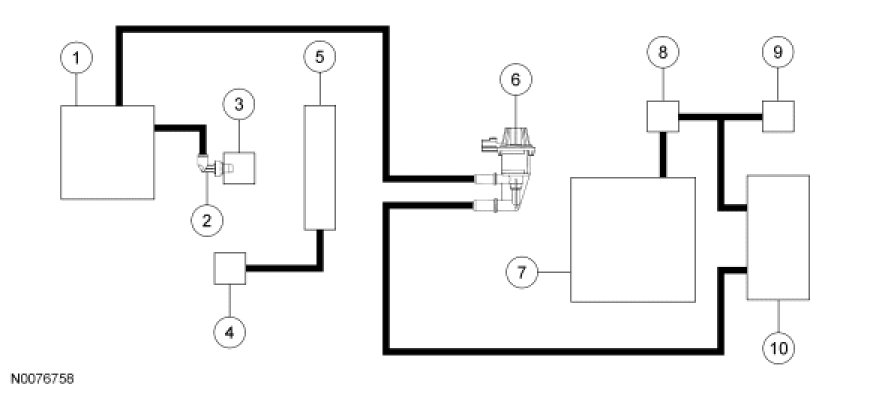

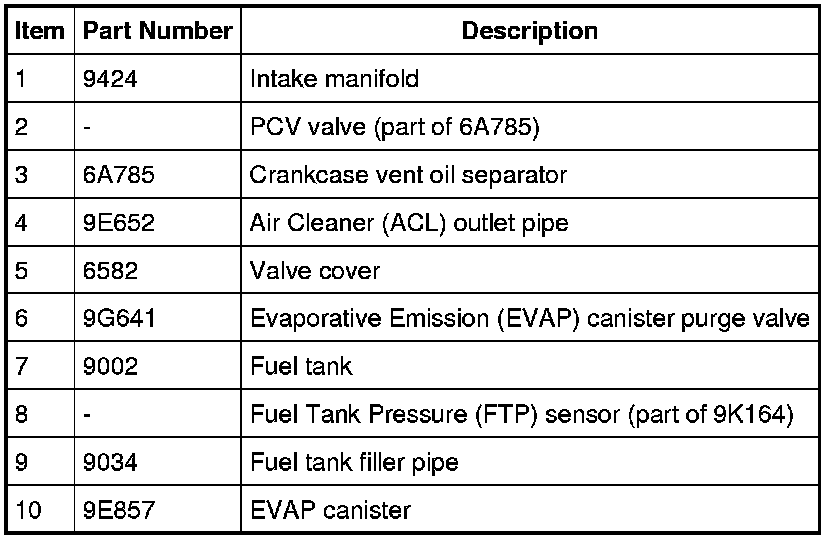

Partial Zero Emissions Vehicle (PZEV)

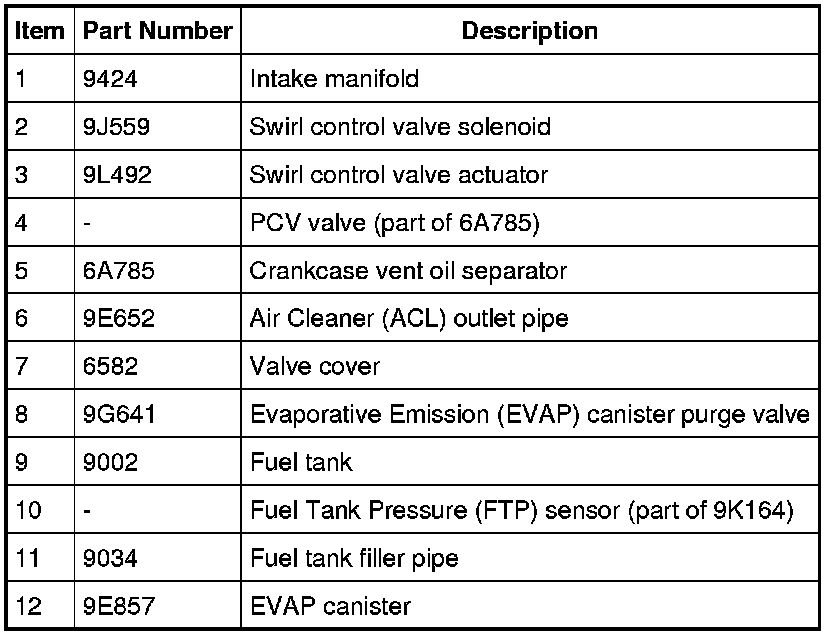

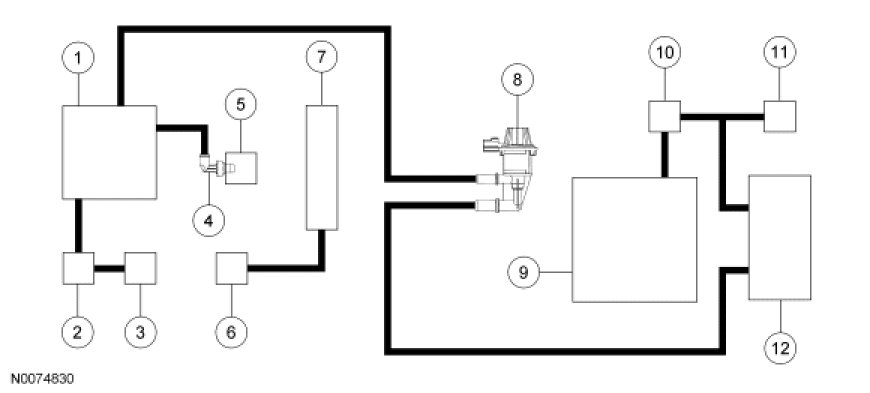

Non PZEV
