lemon-mirror
:
Home
>>
Ford
>>
2009
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Front Display Interface Module (FDIM)

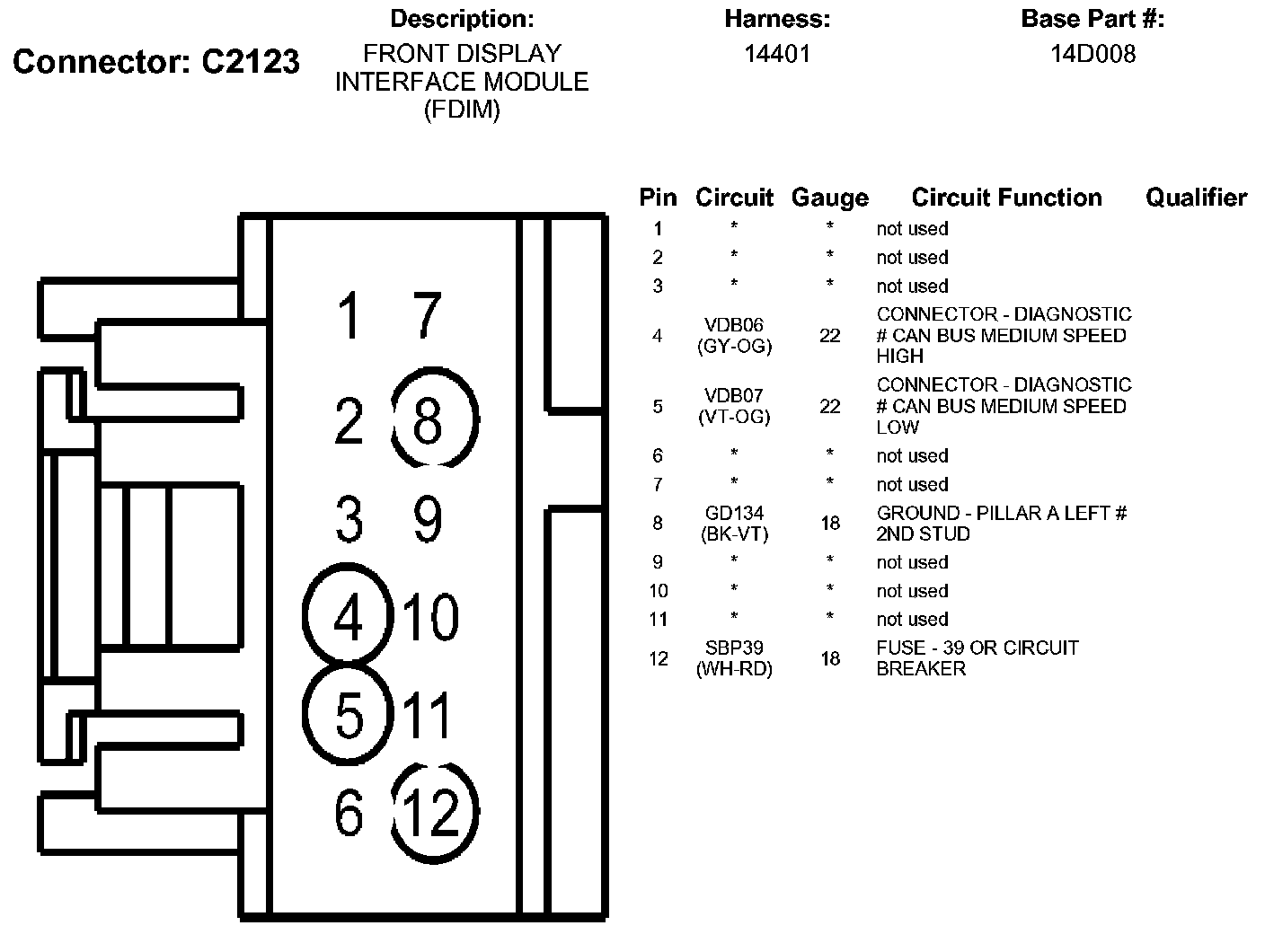

Front Display Interface Module (FDIM)
