Exhaust System
Exhaust System
Exhaust System

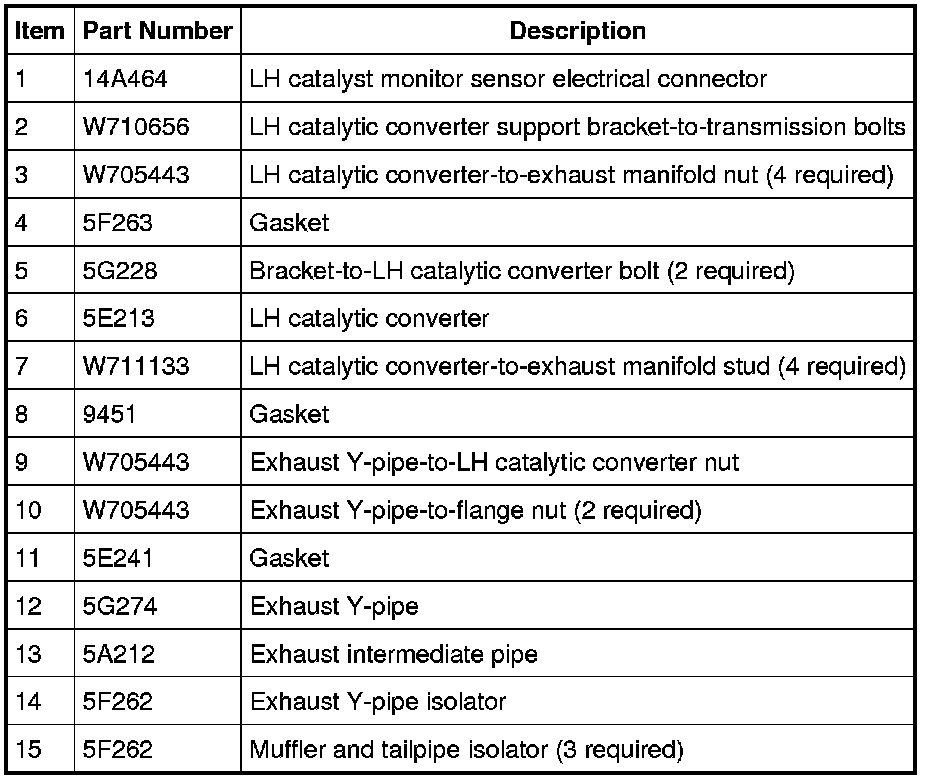

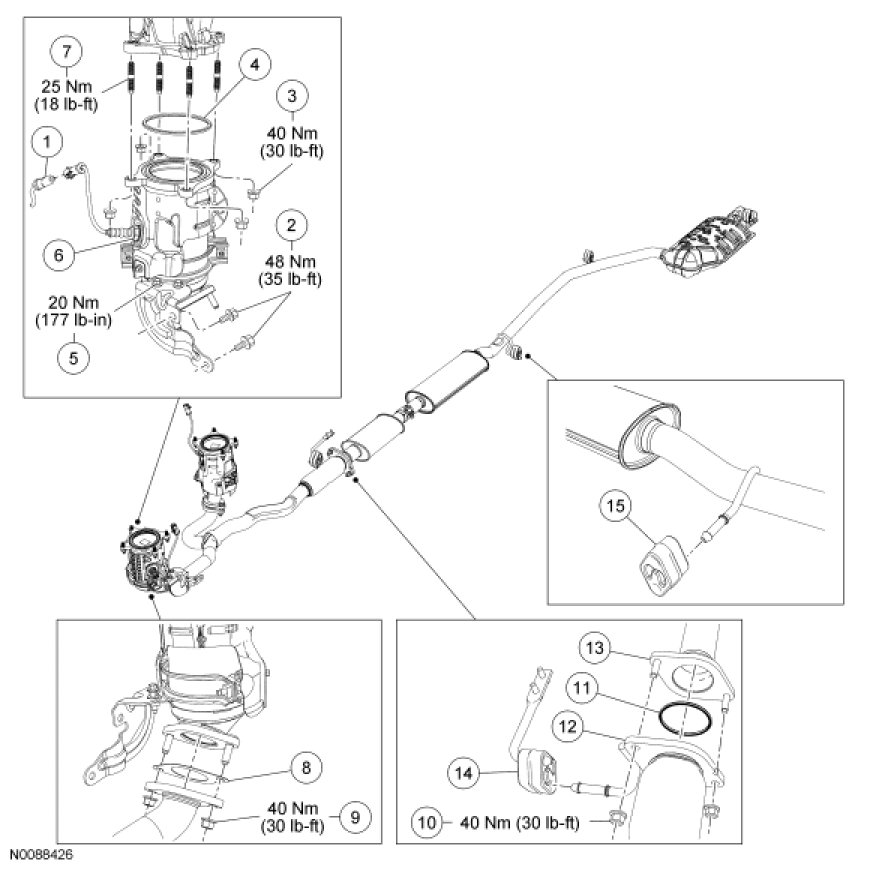

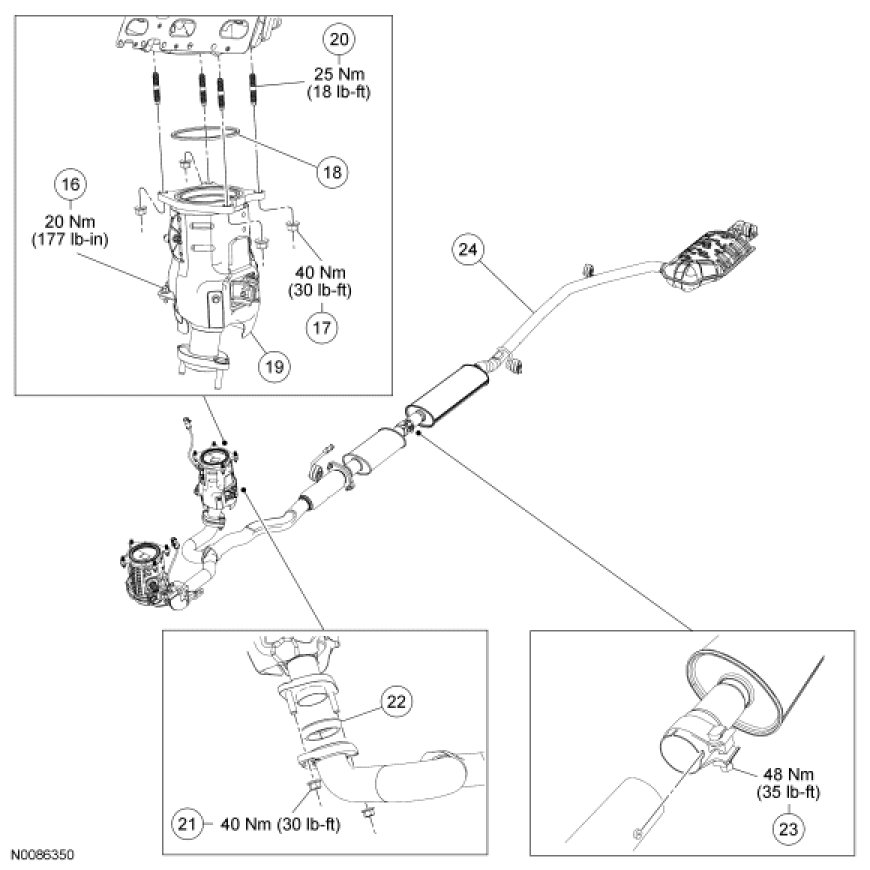

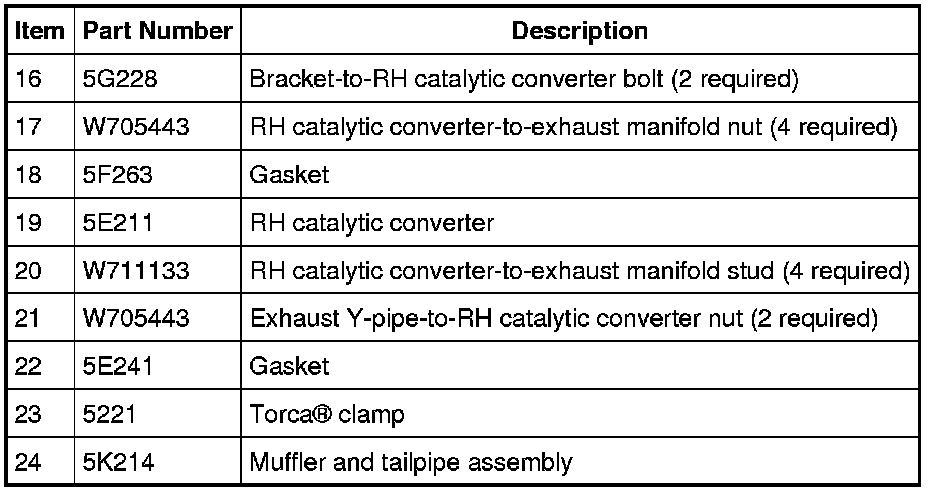

- Exploded View
1.
For additional information, refer to the procedures.
