Flex Plate
Flex Plate

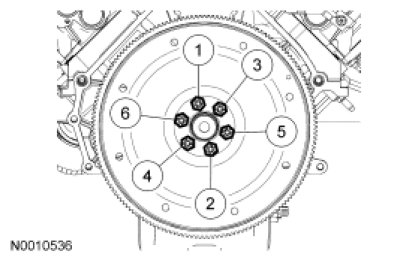

Position the flexplate and install the 6 bolts in the sequence shown.
Tighten to
80 Nm (59 lb-ft).
