Home >> Ford >> 2009 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Audio Control Module (ACM)

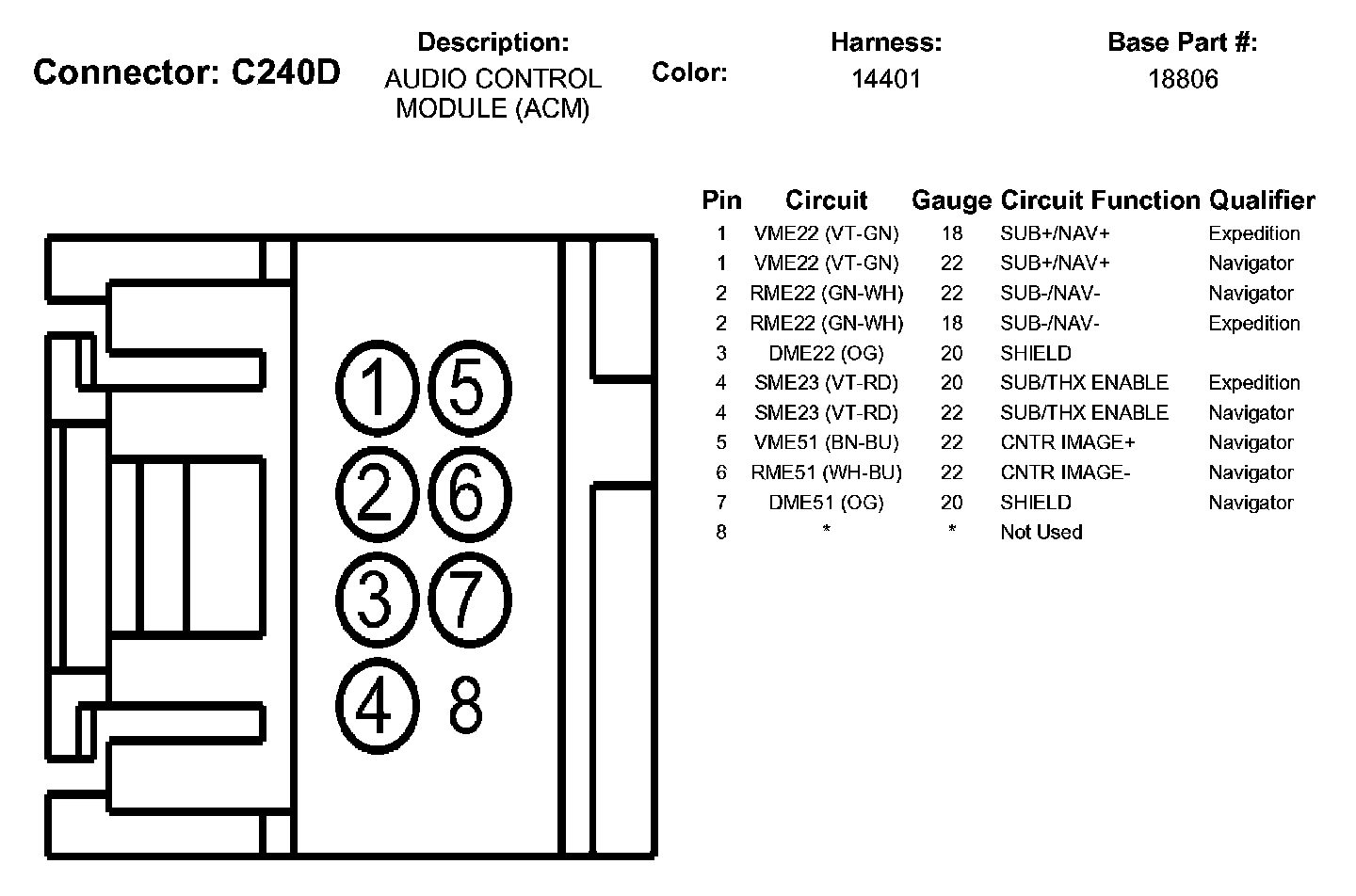

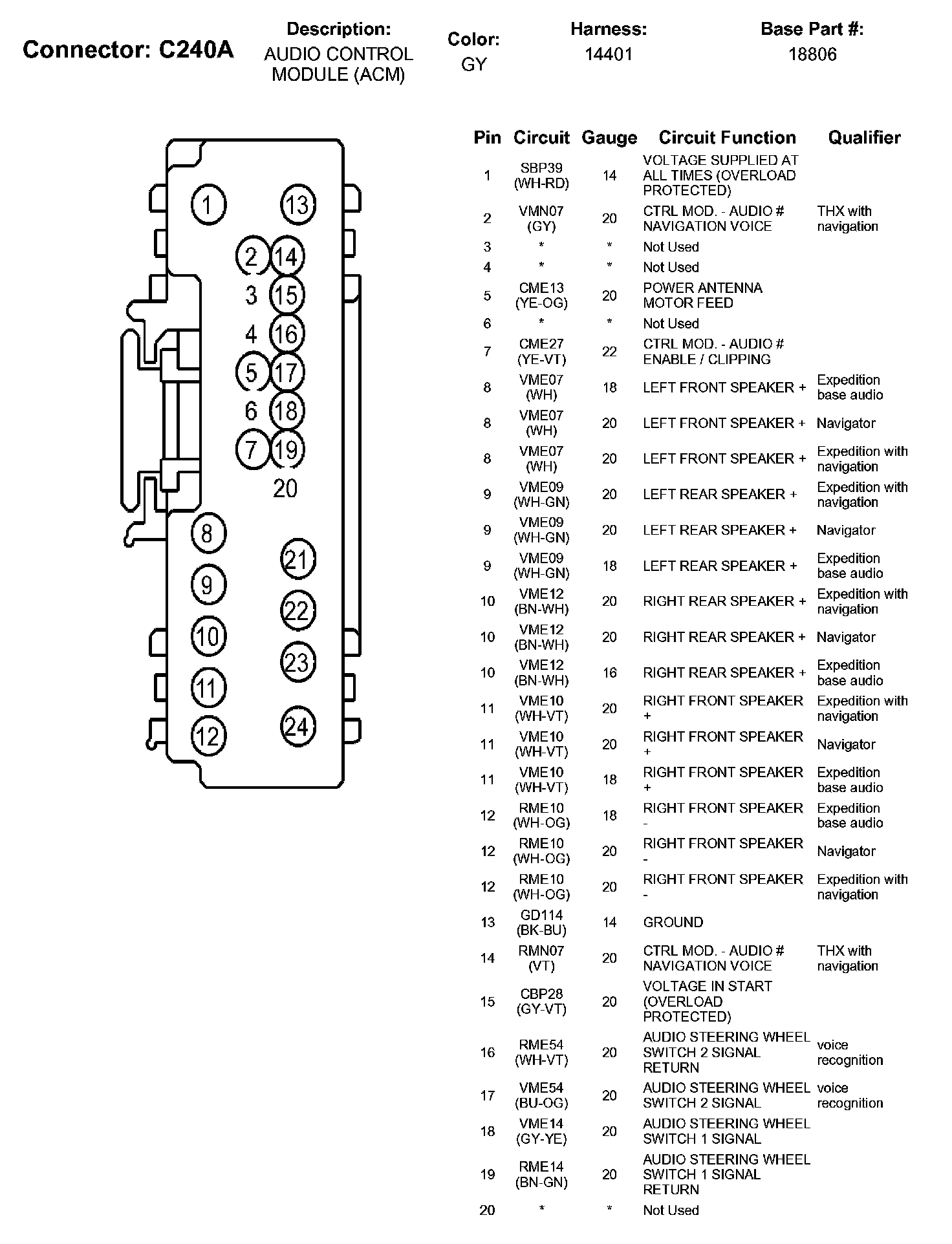

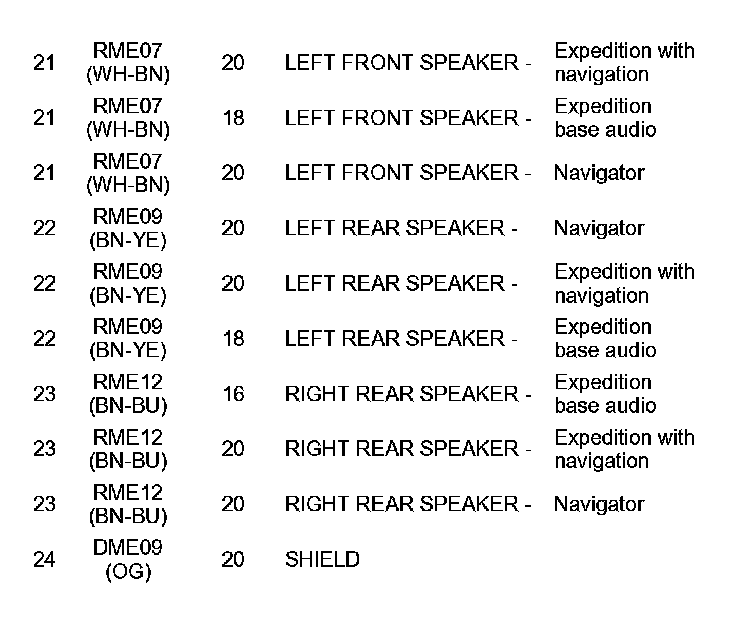

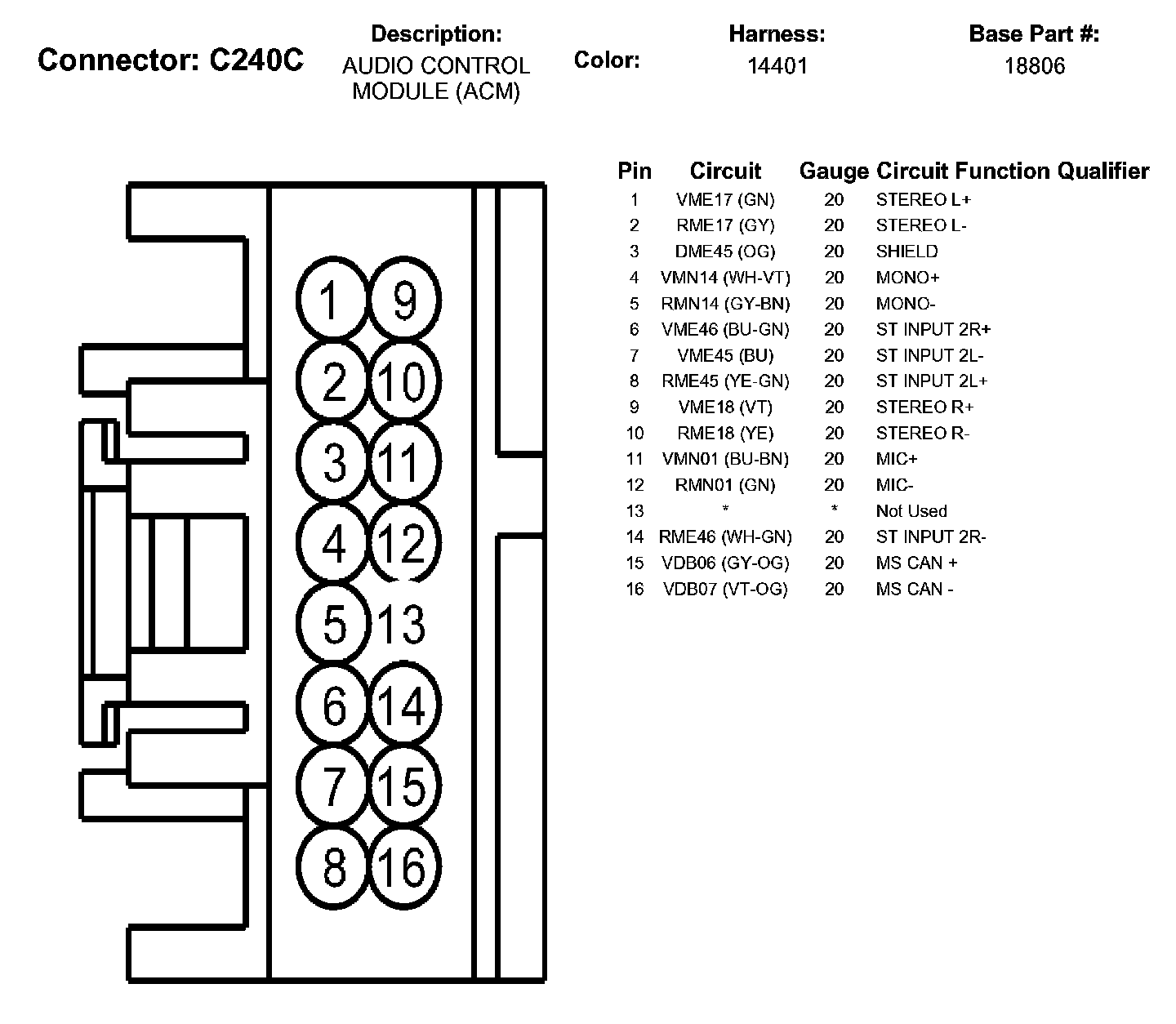

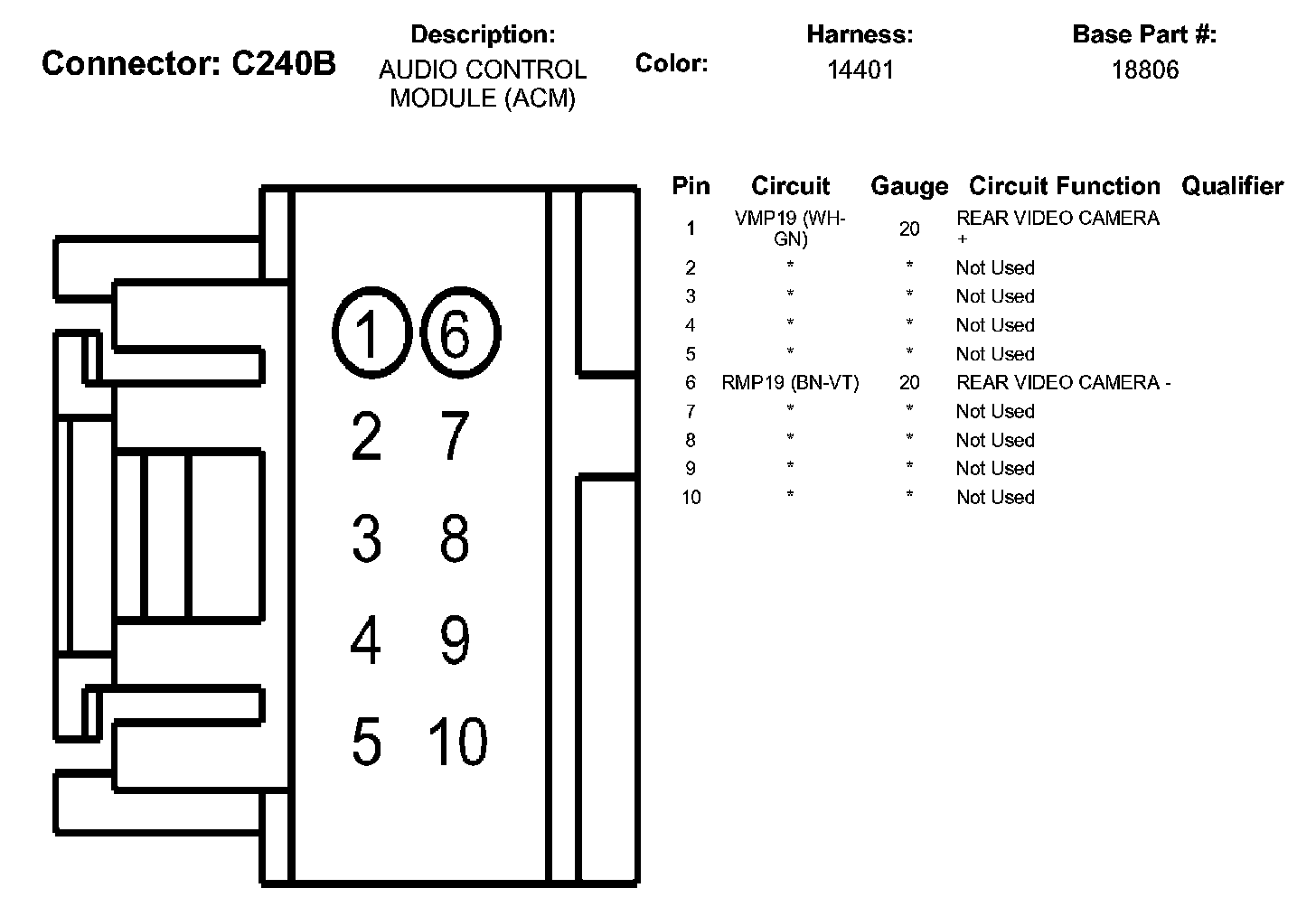

Audio Control Module (ACM)

Part 1:



Part 2:
