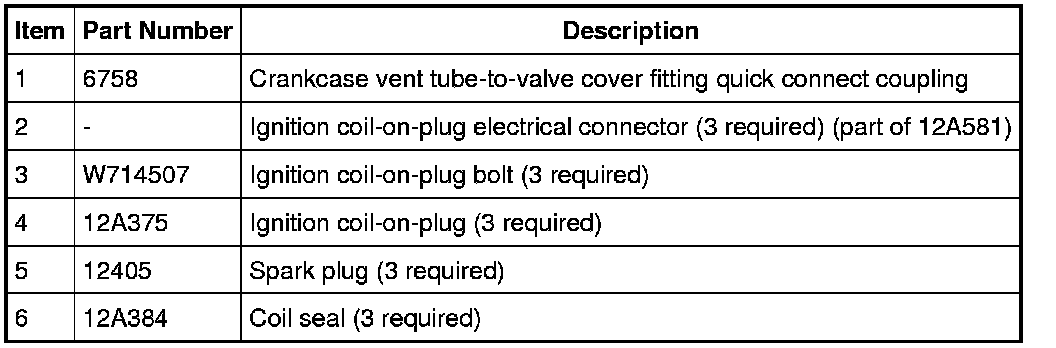

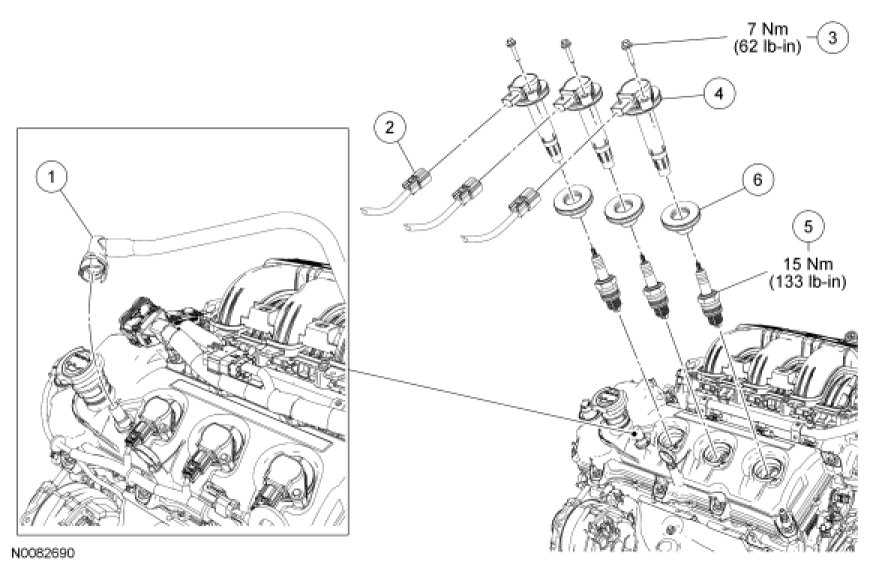

Engine Ignition Components - Exploded View - LH Side
Engine Ignition Components - Exploded View - LH Side
Engine Ignition Components - Exploded View
LH Side
