Seat Temperature Control Module
>>

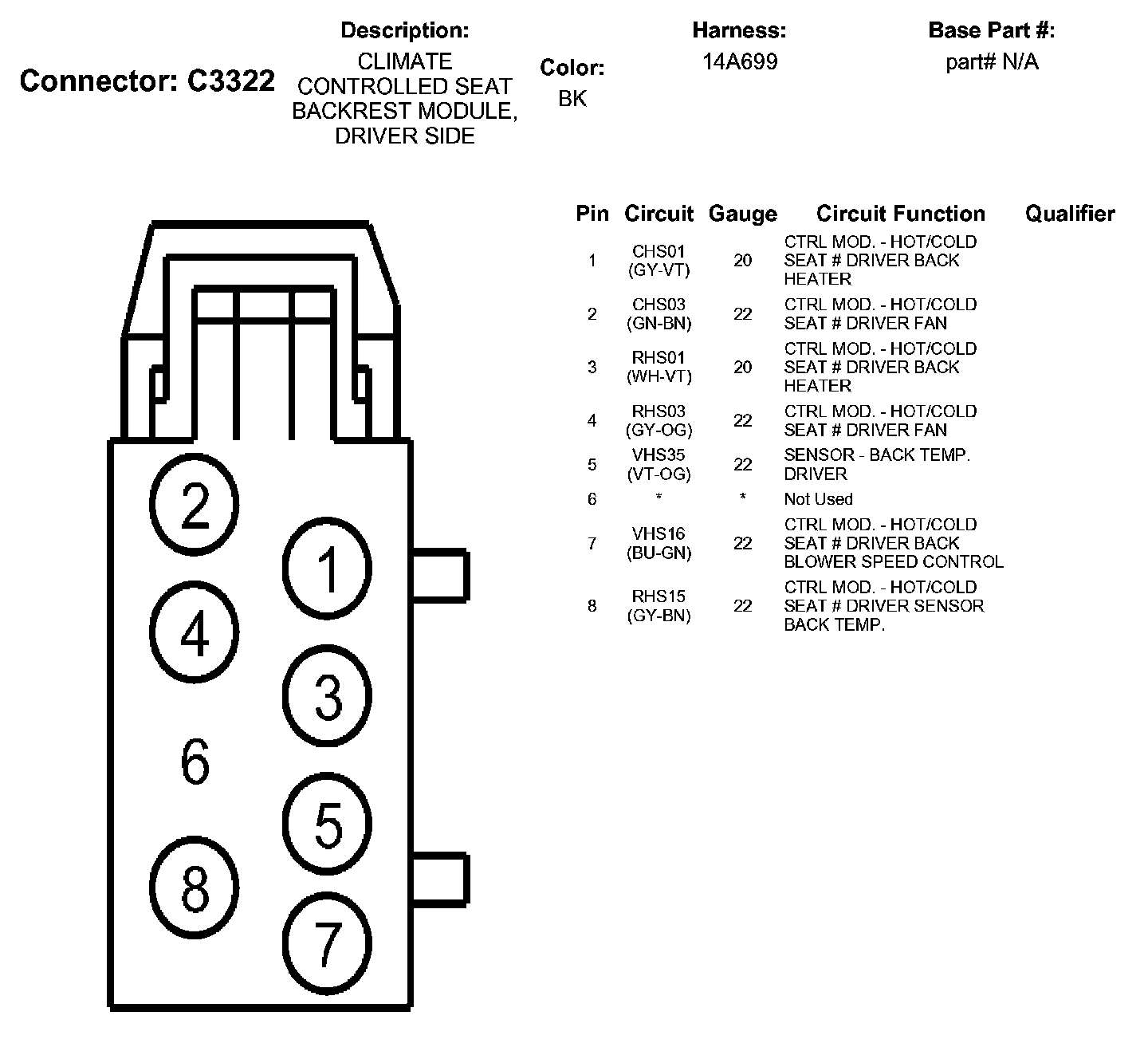

Climate Controlled Seat Backrest Module, Driver Side
Climate Controlled Seat Backrest Module, Driver Side
