Ford
>>
2009
>>
E 150 V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

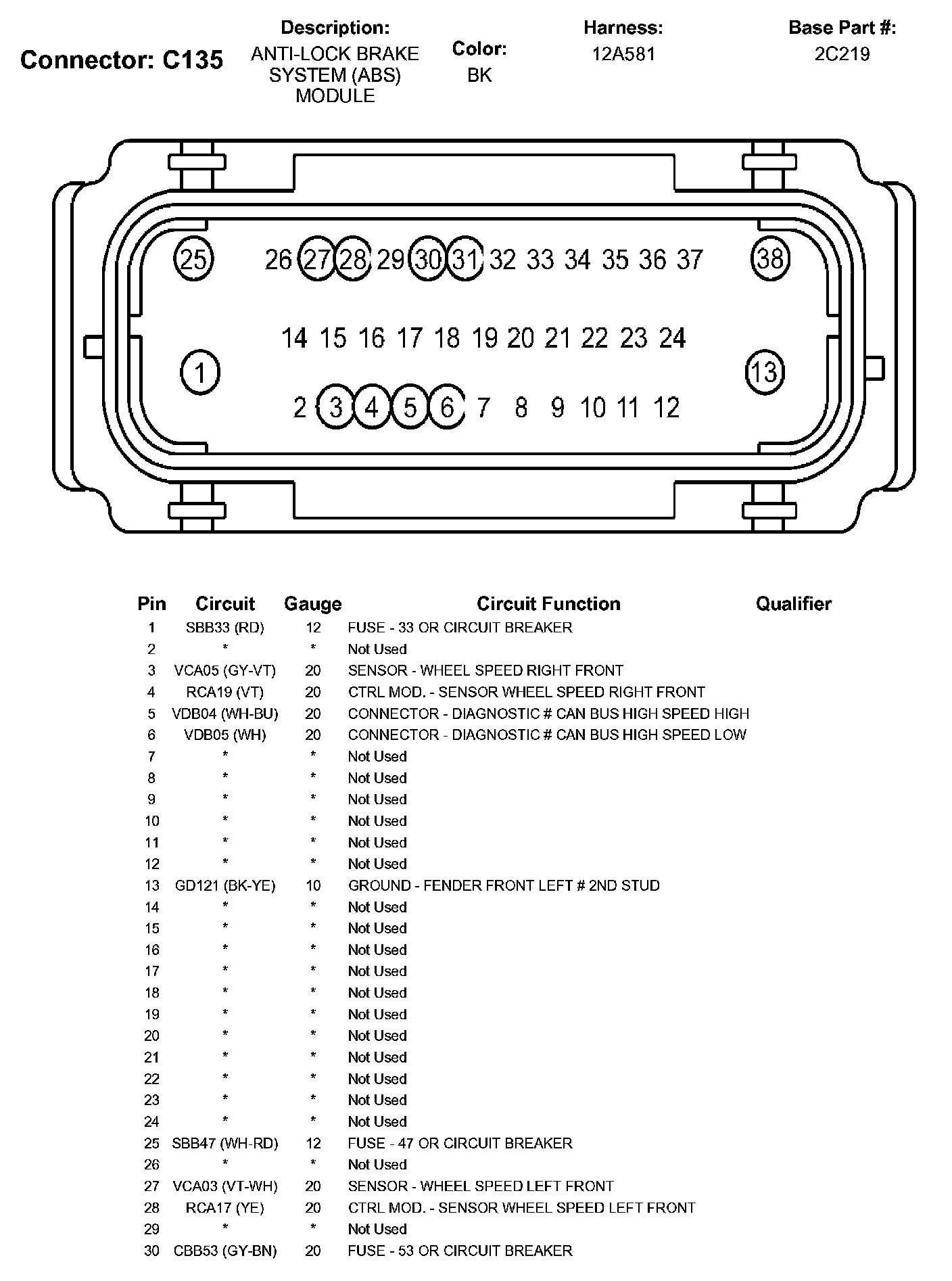

C135 Part 1:

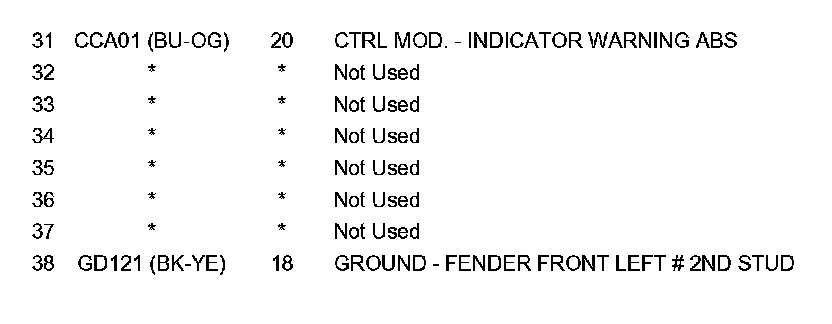

C135 Part 2:

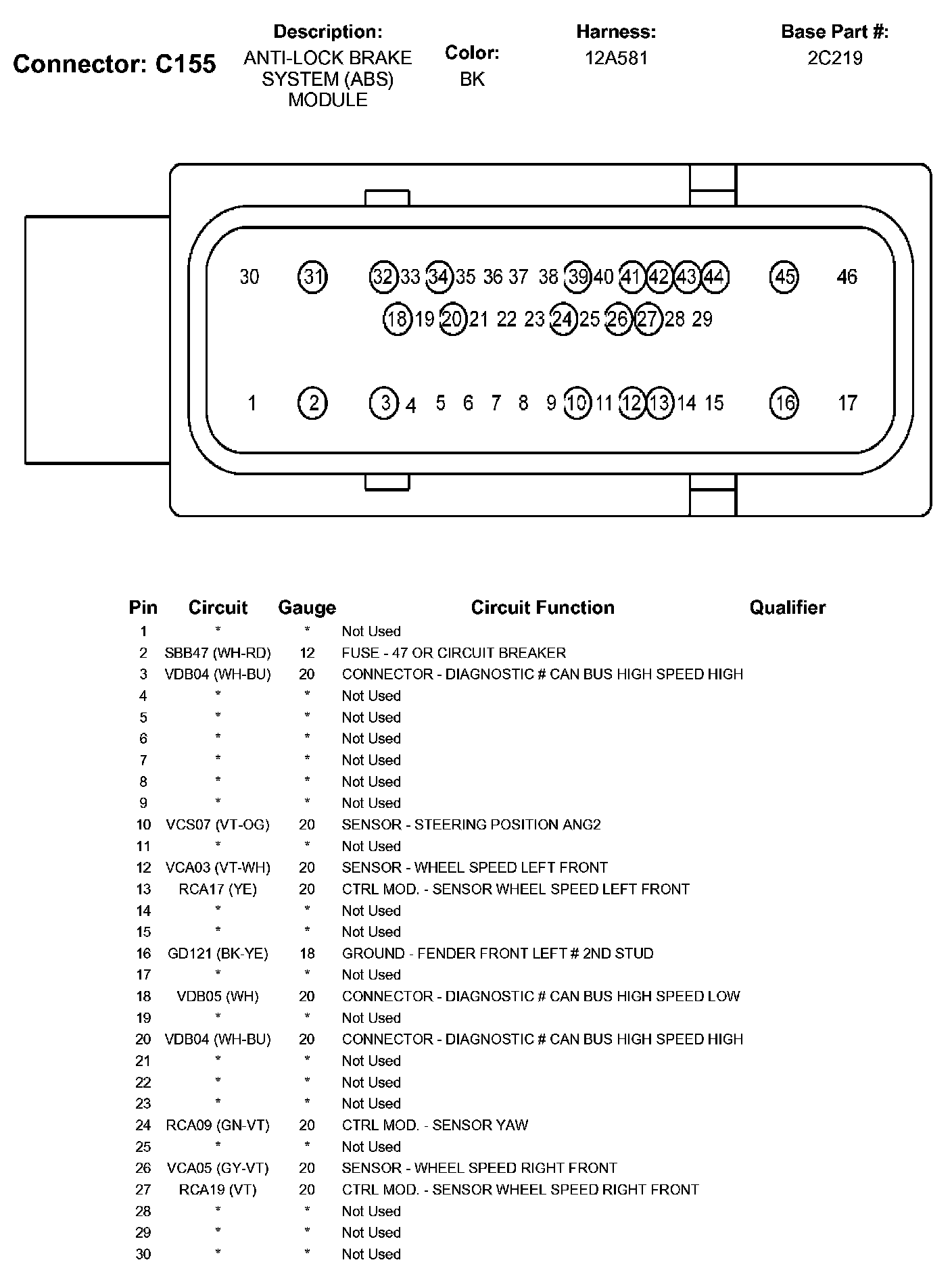

C155 Part 1:

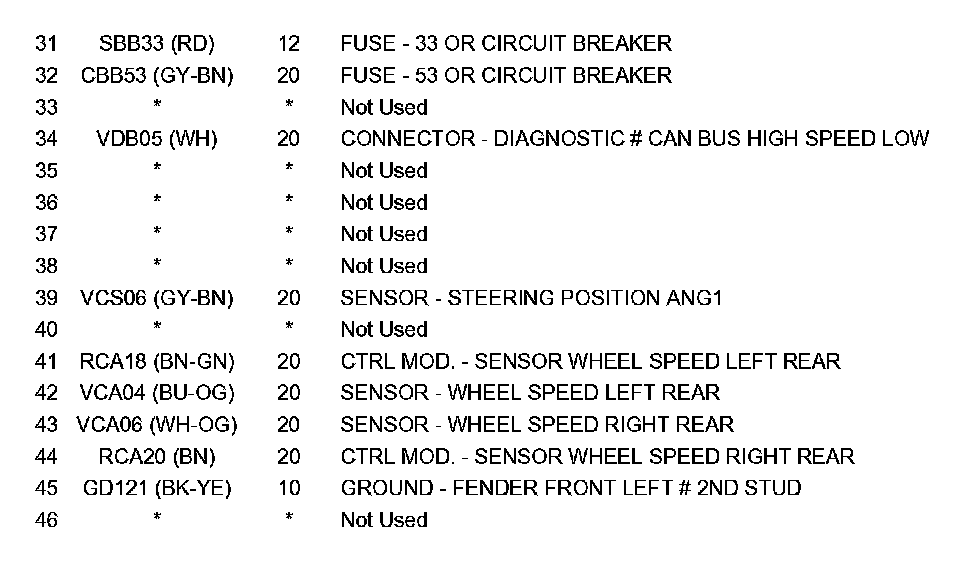

C155 Part 2:
