Seat Temperature Control Module: Service and Repair

Seat - Exploded View, Front

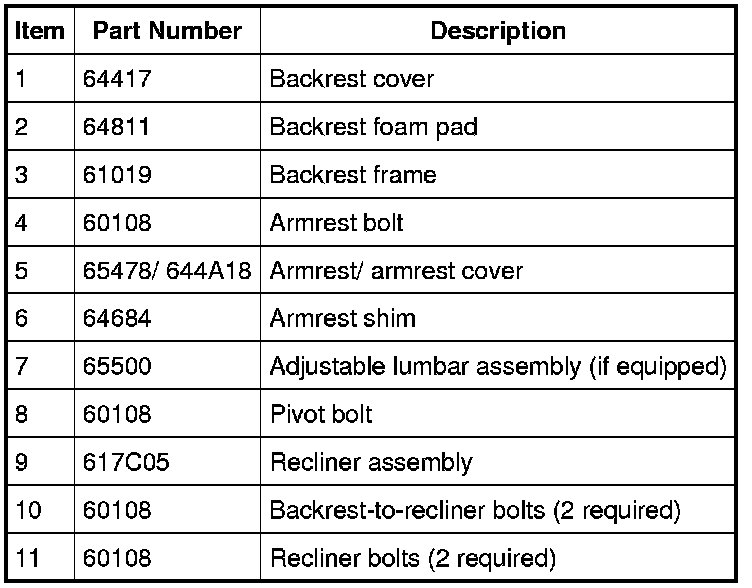

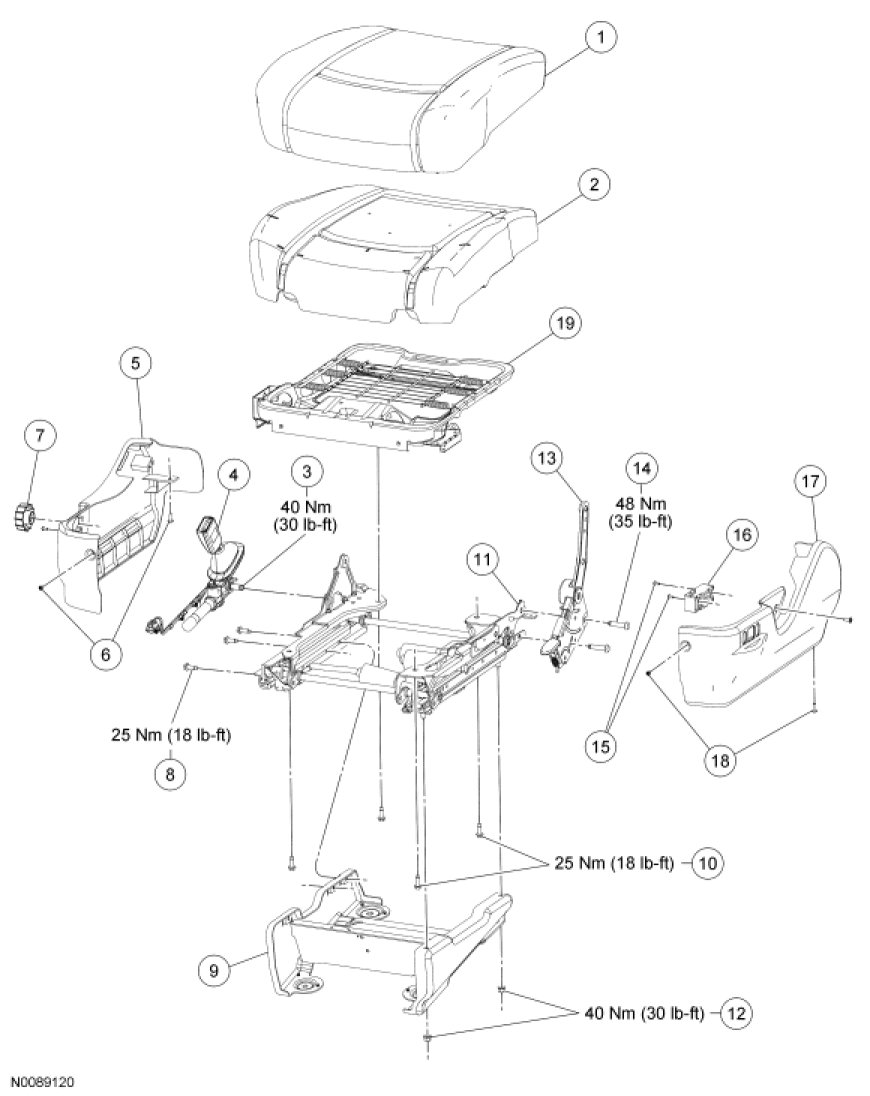

Seat Backrest

NOTE: LH shown, RH similar.

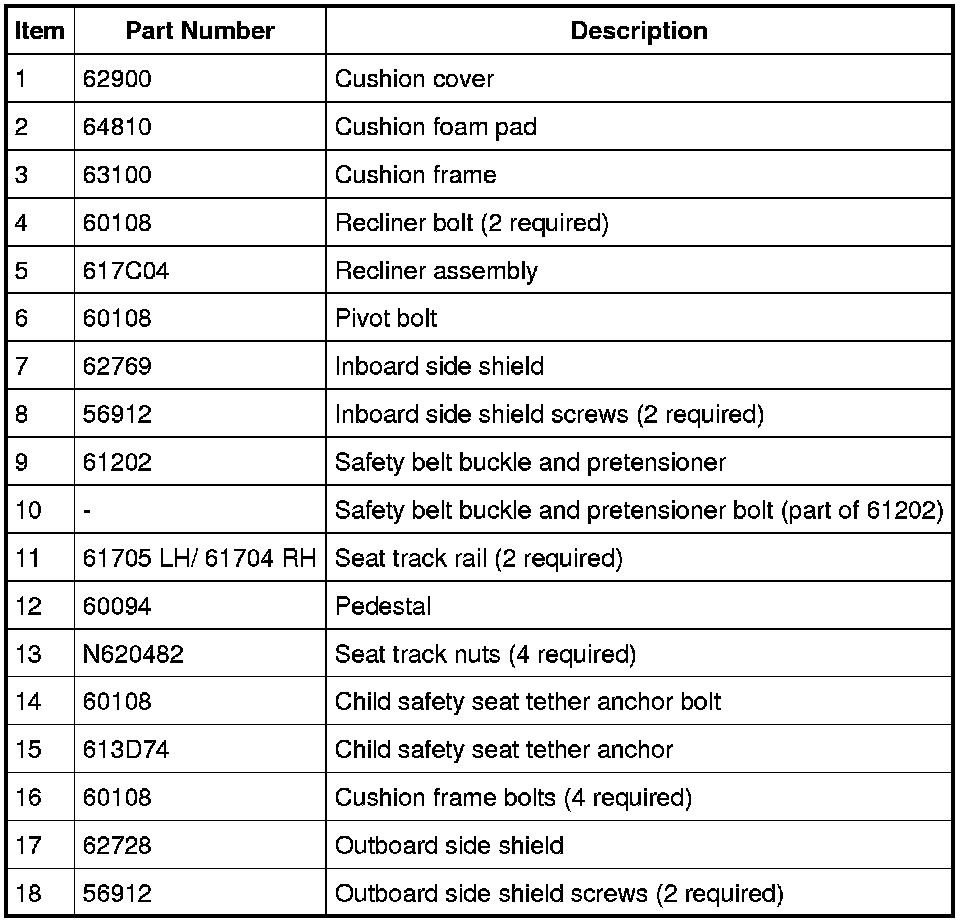

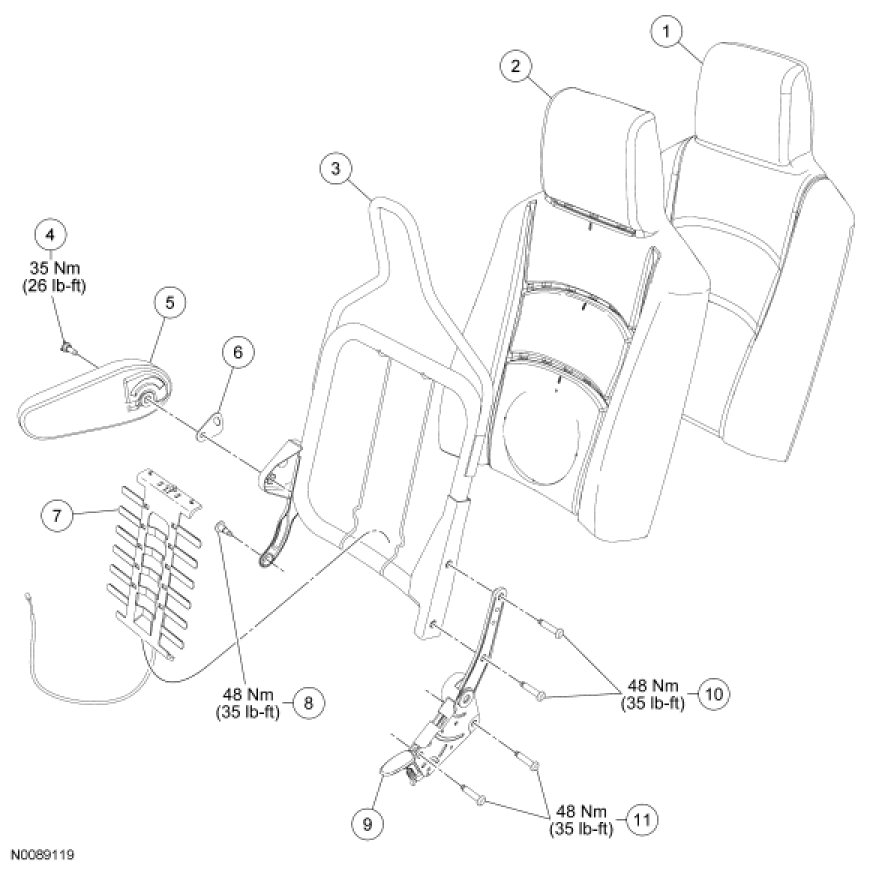

Seat Cushion - Driver

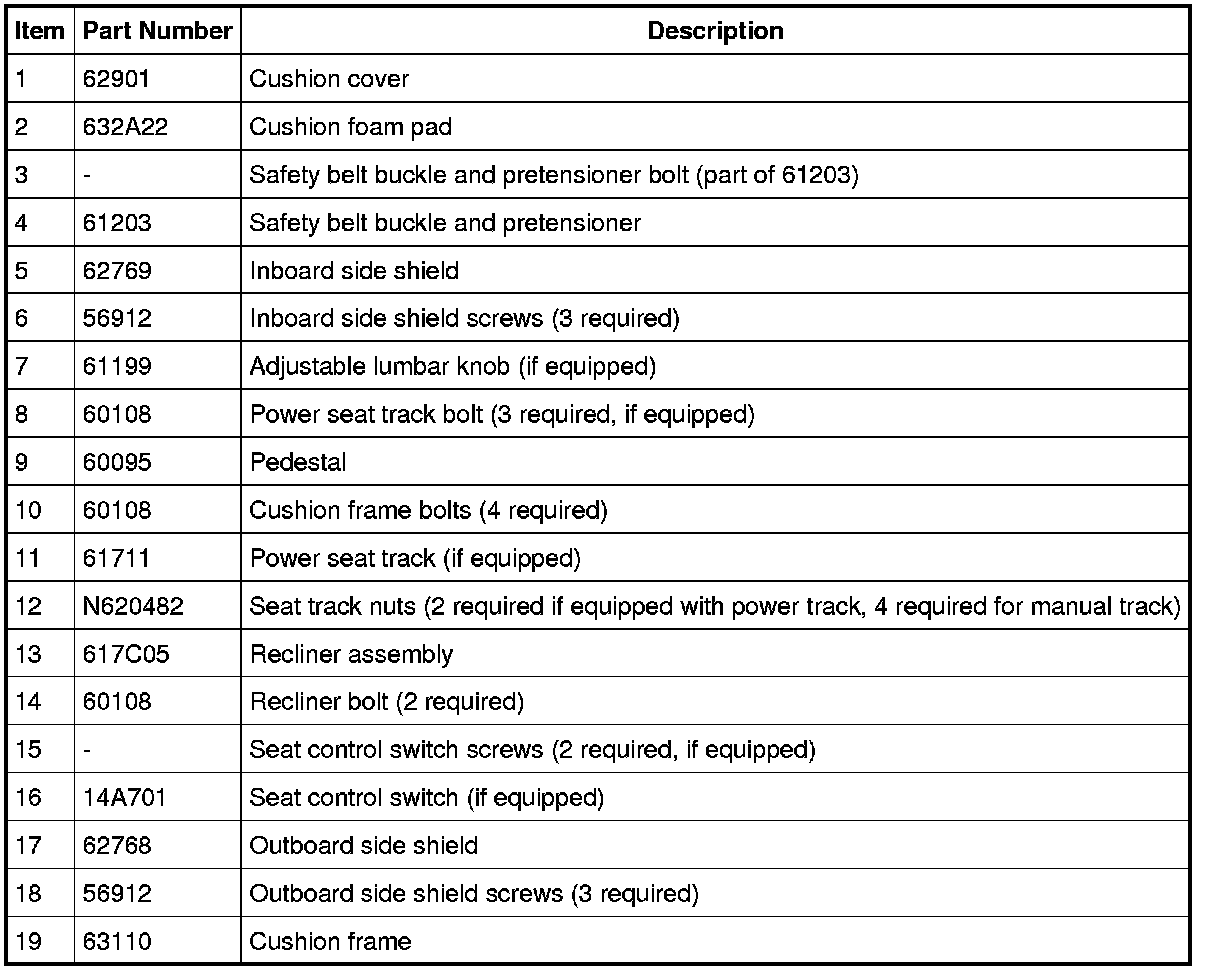

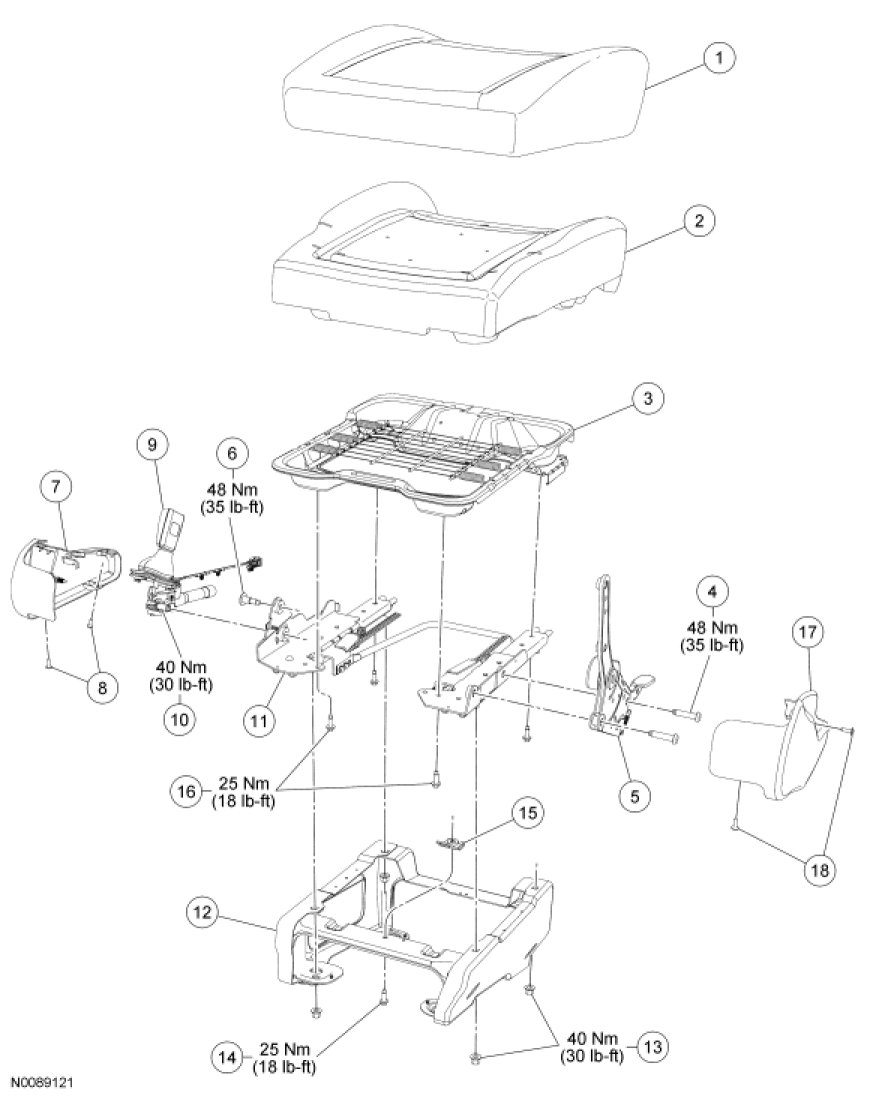

Seat Cushion - Front Passenger









1. For additional information, refer to the procedures.
