Exhaust System
Exhaust System
Exhaust System
- Exploded View

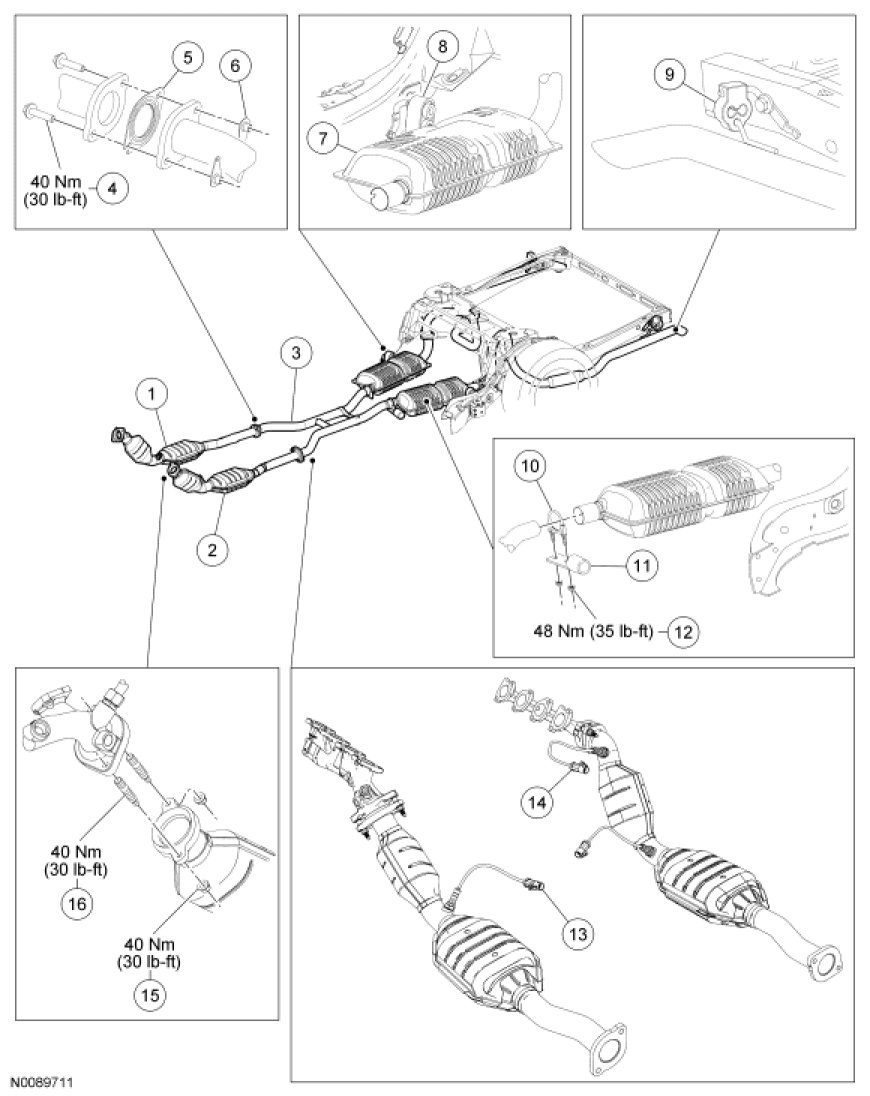

Single Exhaust

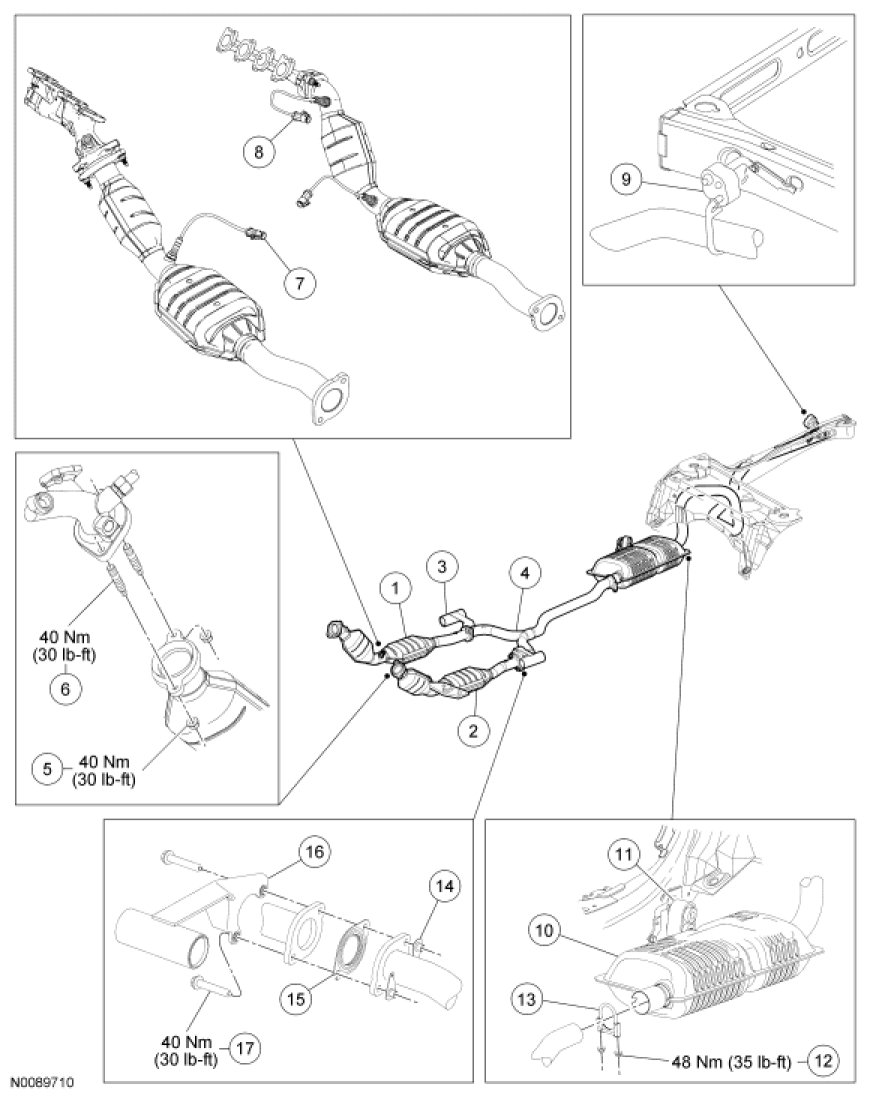

Dual Exhaust
1.
For additional information, refer to the procedures.
