Keyless Entry Receiver: Service and Repair

Antenna

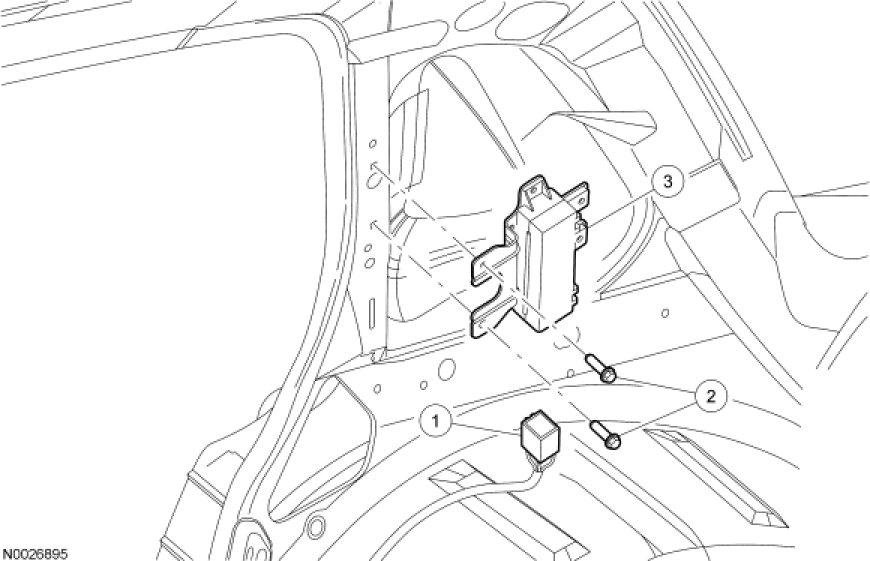

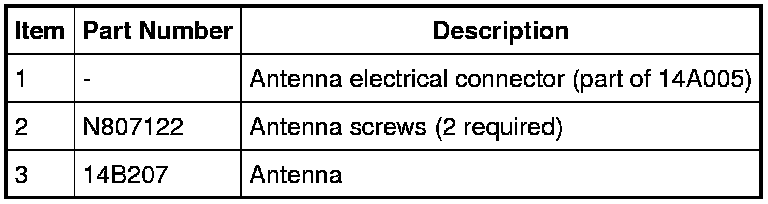

Removal and Installation

1. Remove the RH rear quarter trim panel.

2. Disconnect the antenna electrical connector.

3. Remove the 2 screws and the antenna.

4. To install, reverse the removal procedure.
