Ford
>>
2008
>>
Taurus FWD V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

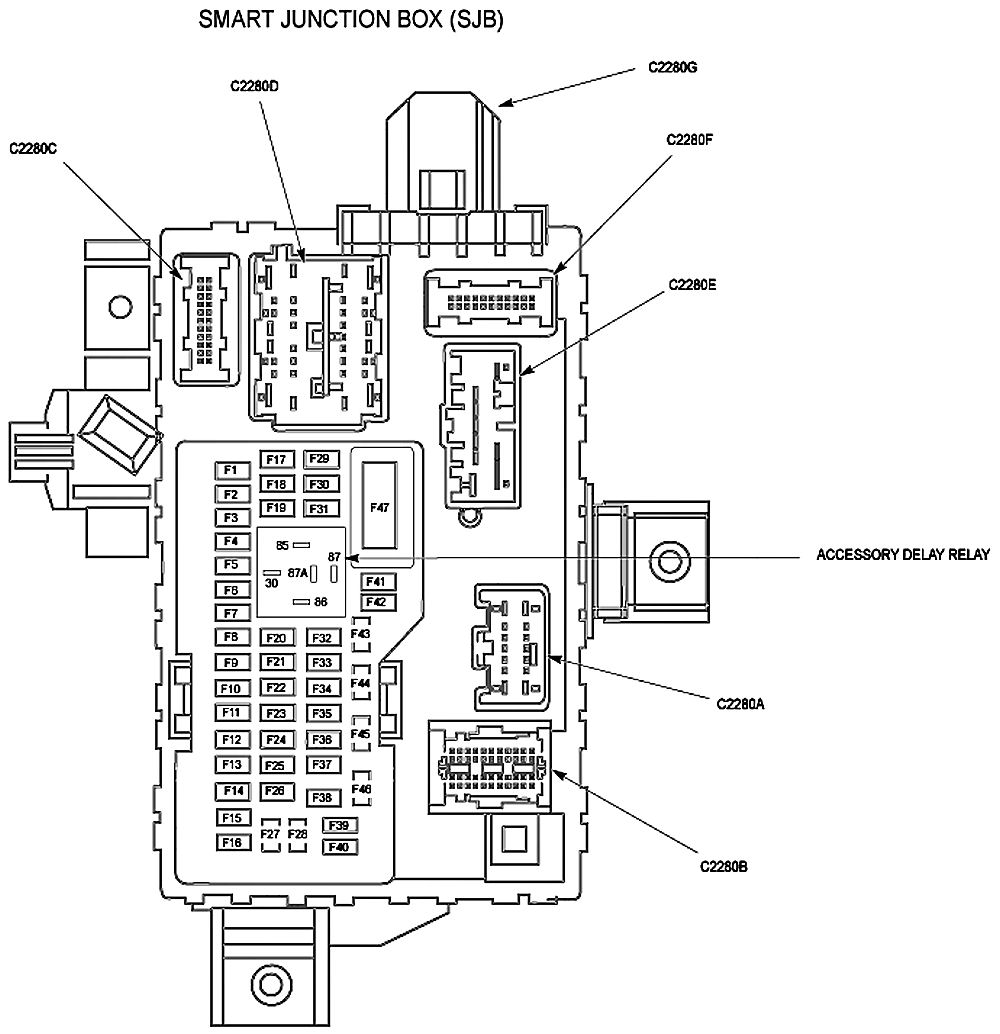

Smart Junction Box
Smart Junction Box
Note:
The fuse panel is located under the instrument panel to the left of the steering wheel.
