Compression Check: Specifications

Compression Pressure Limit Chart
The indicated compression pressures are considered within specification if the lowest reading cylinder is at least 75% of the highest reading.

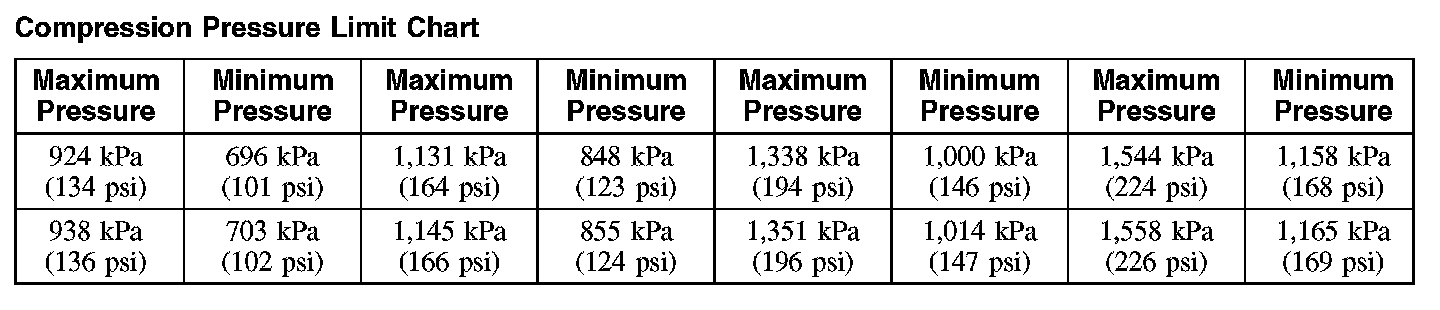

Compression Pressure Limit Chart (Part 1):

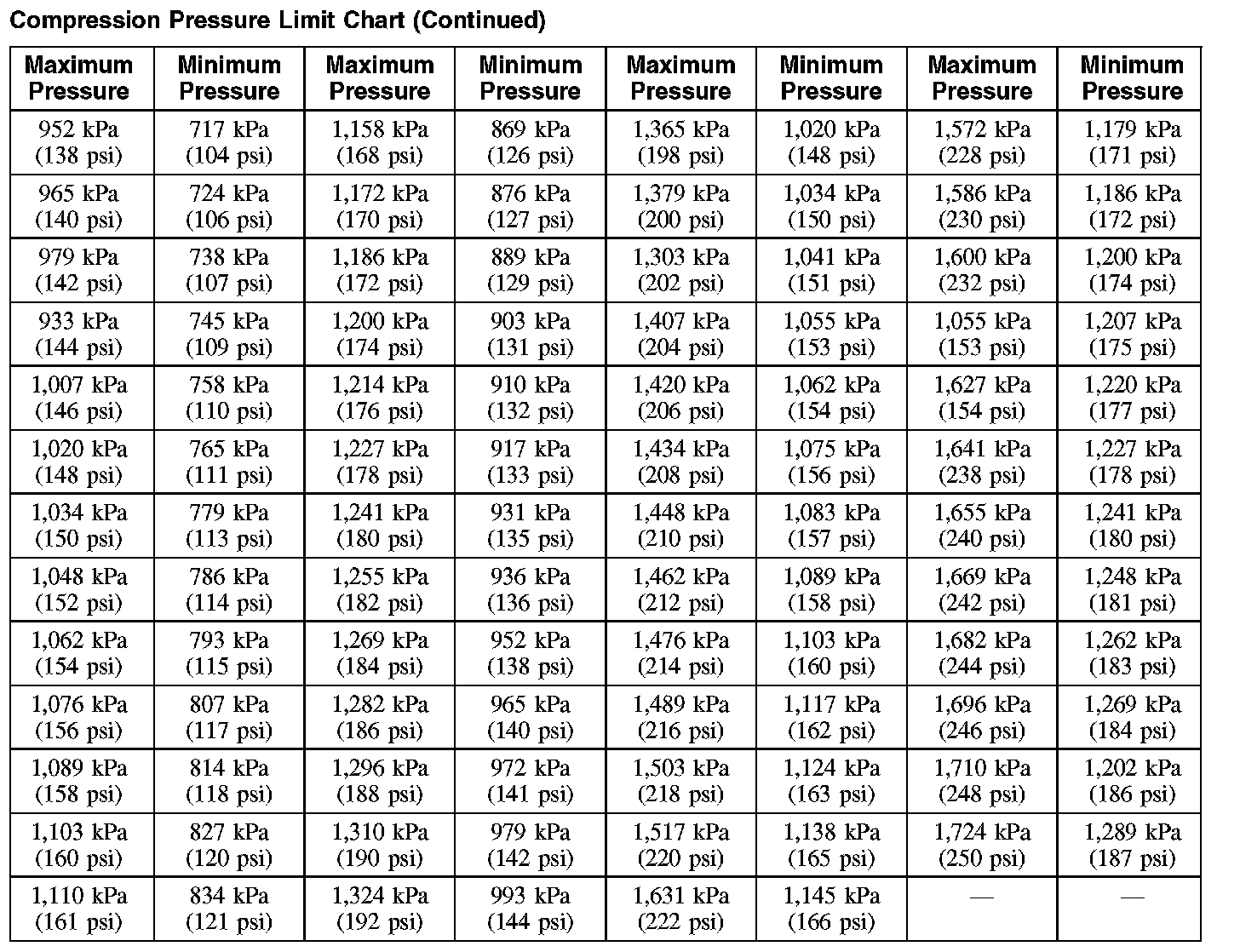

Compression Pressure Limit Chart (Part 2):
