Function Selector Switch

FUNCTION SELECTOR SWITCH







Removal and Installation
1. Remove the climate control assembly.

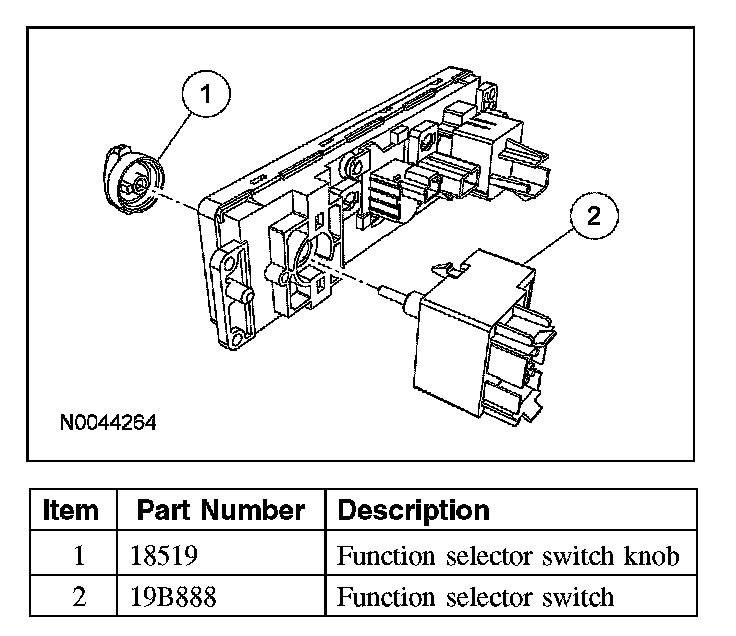

2. Gently pull and remove the function selector switch knob.

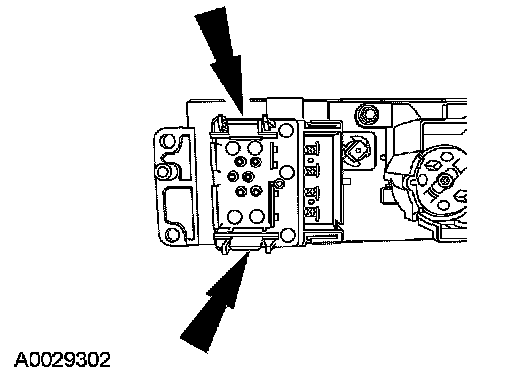

3. Release the clips and remove the function selector switch.







4. To install, reverse the removal procedure.
