Exhaust System

Exhaust System - Exploded View

Vehicles with 2.3L

NOTE: Exhaust system will vary by wheelbase.

NOTE: Vehicle body removed for clarity.

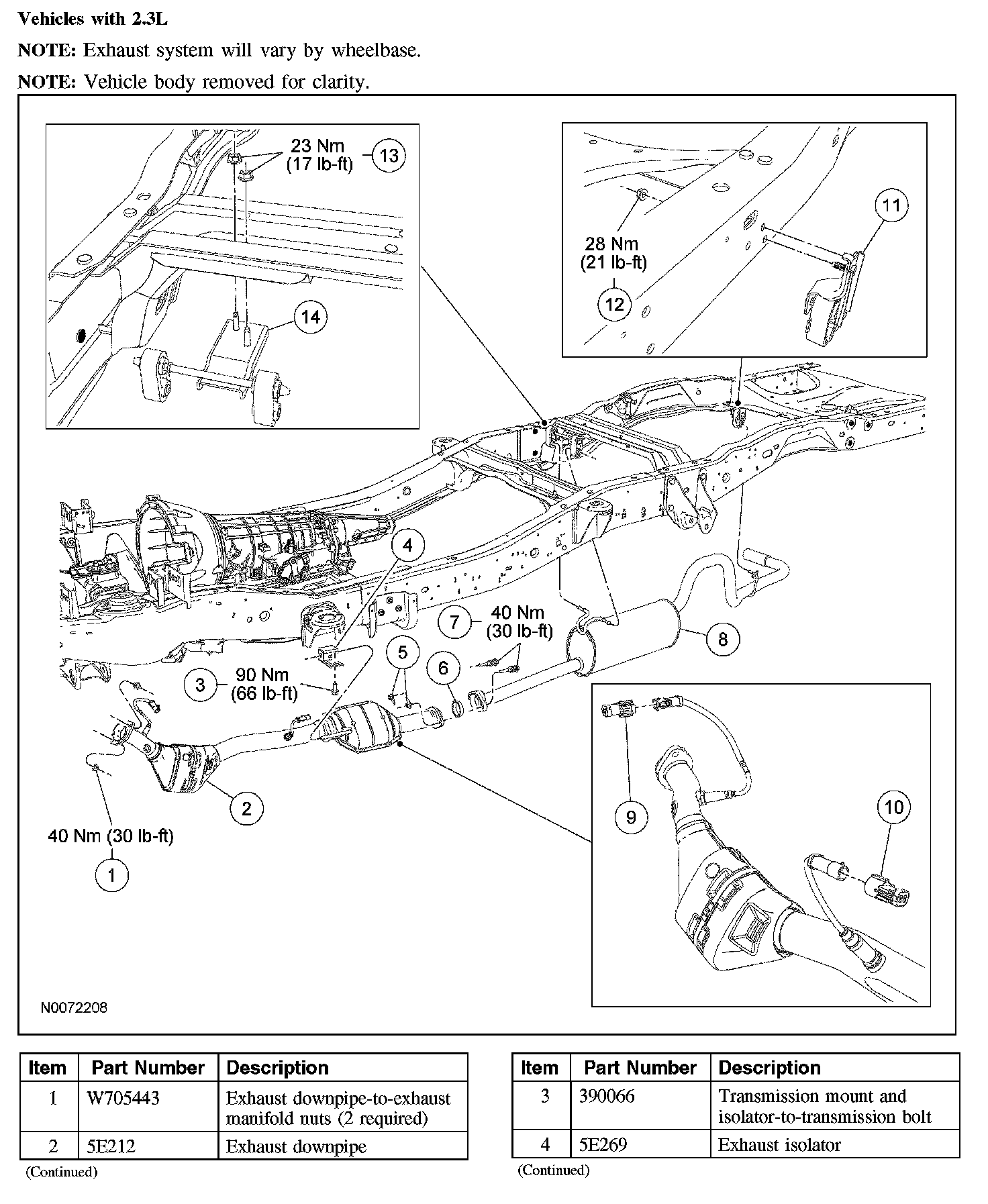

Vehicles With 2.3L (Part 1):

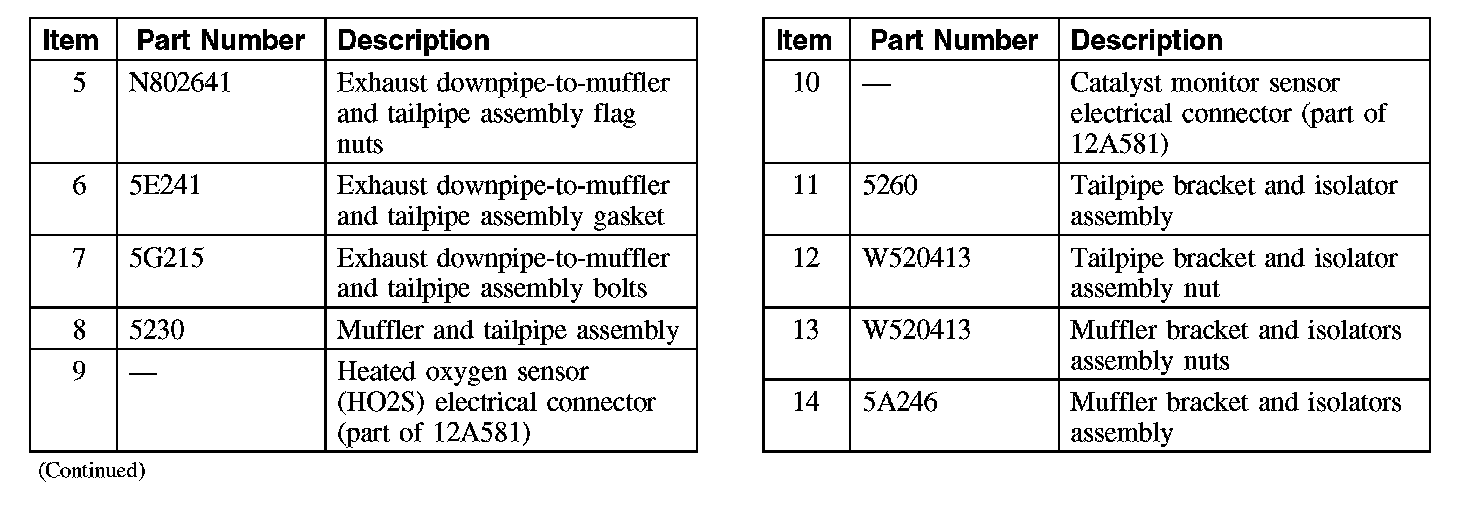

Vehicles With 2.3L (Part 2):

Vehicles with 3.0L and 4.0L

NOTE: 3.0L shown, 4.0L similar.

NOTE: Exhaust system will vary by wheelbase.

NOTE: Vehicle body removed for clarity.

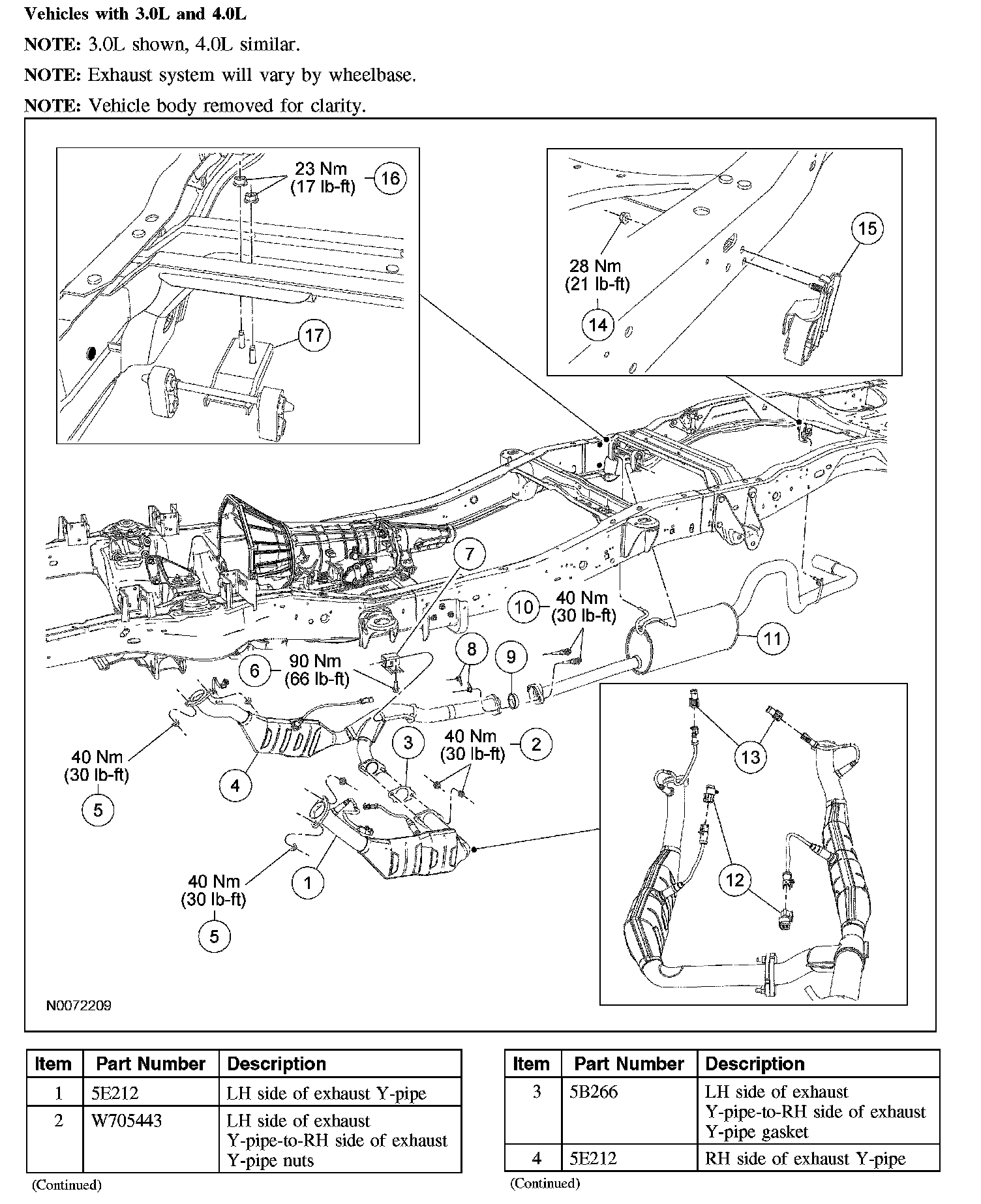

Vehicles With 3.0L And 4.0L (Part 1):

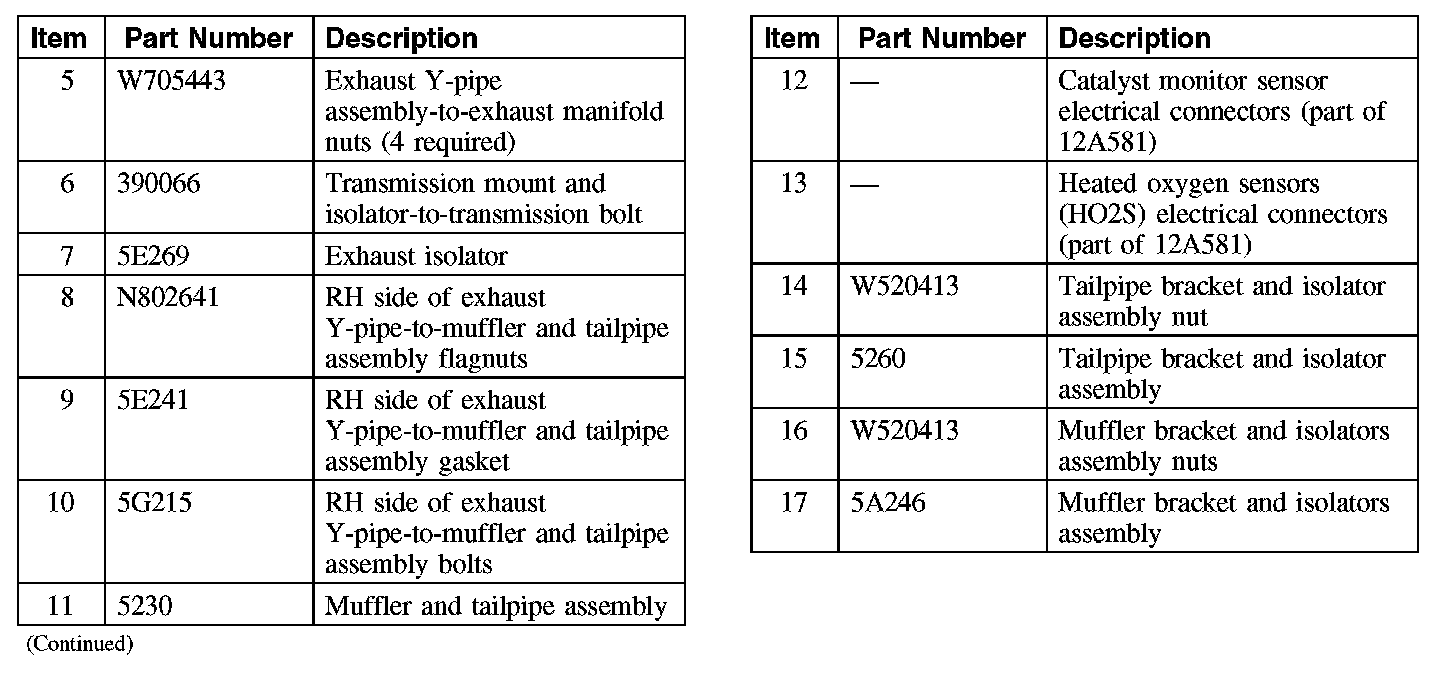

Vehicles With 3.0L And 4.0L (Part 2):
