Home >> Ford >> 2008 >> Ranger 2WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

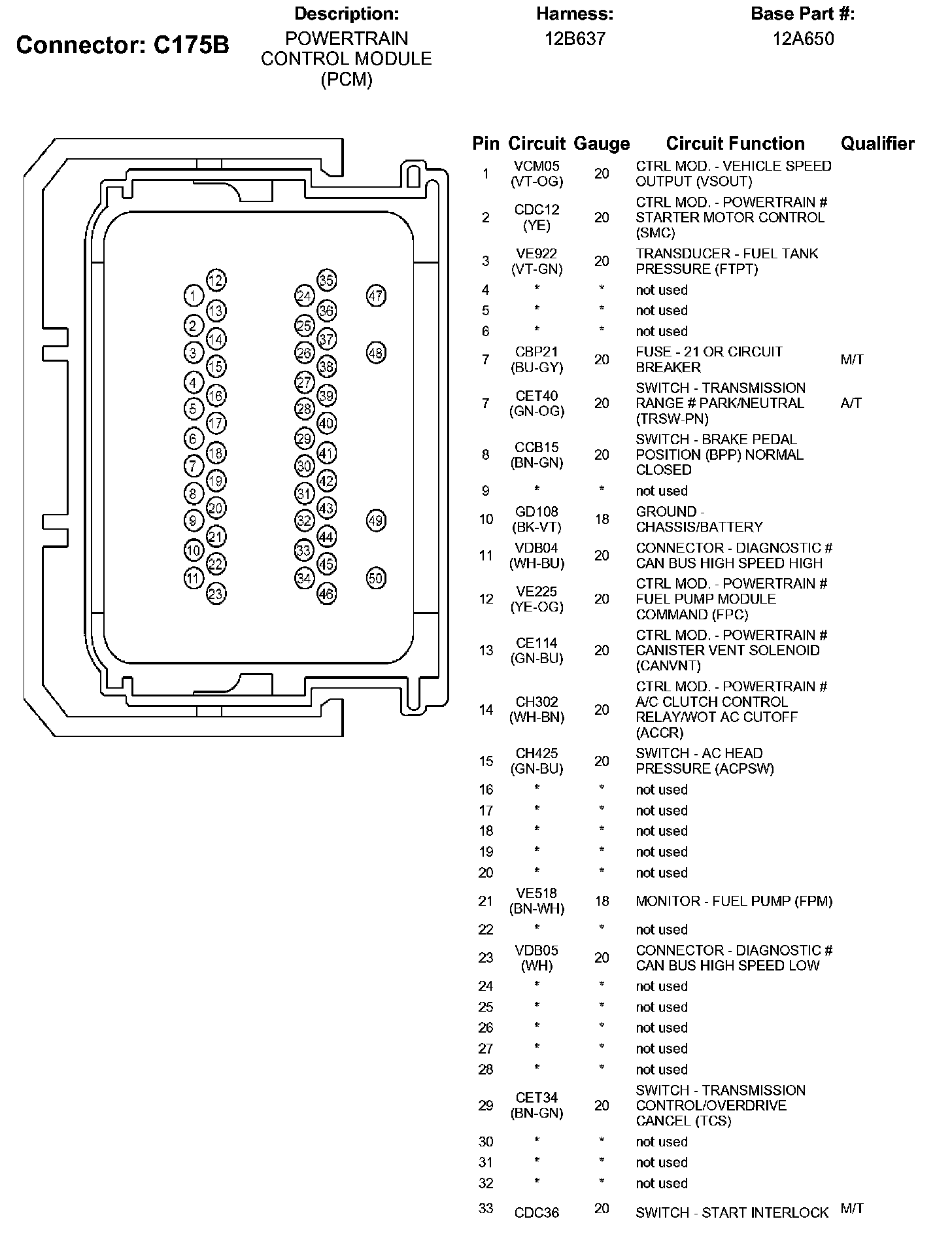

C175B (Part 1):

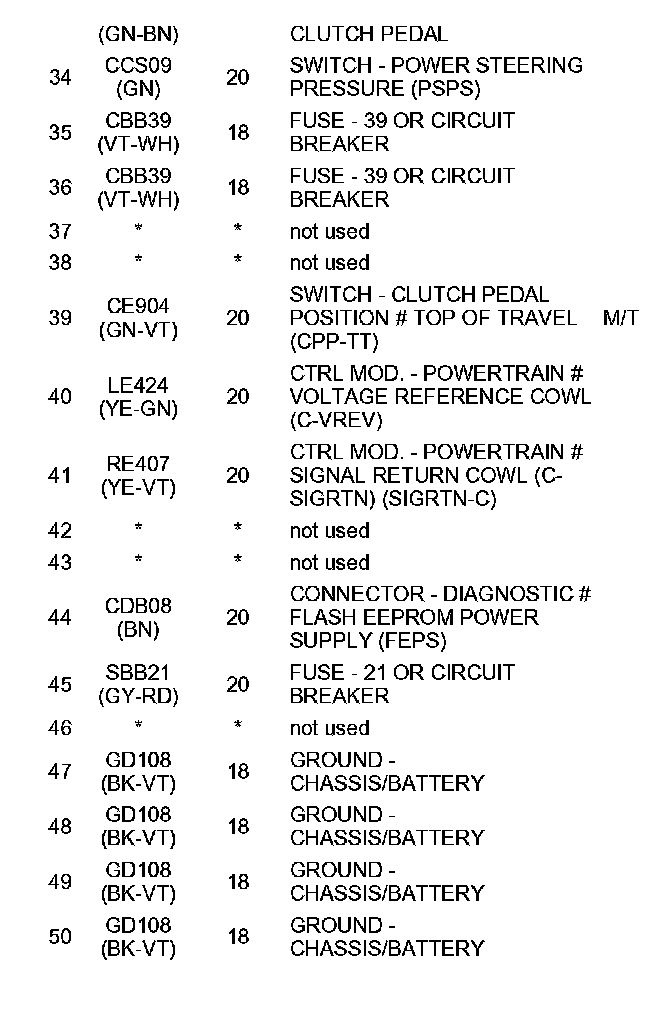

C175B (Part 2):

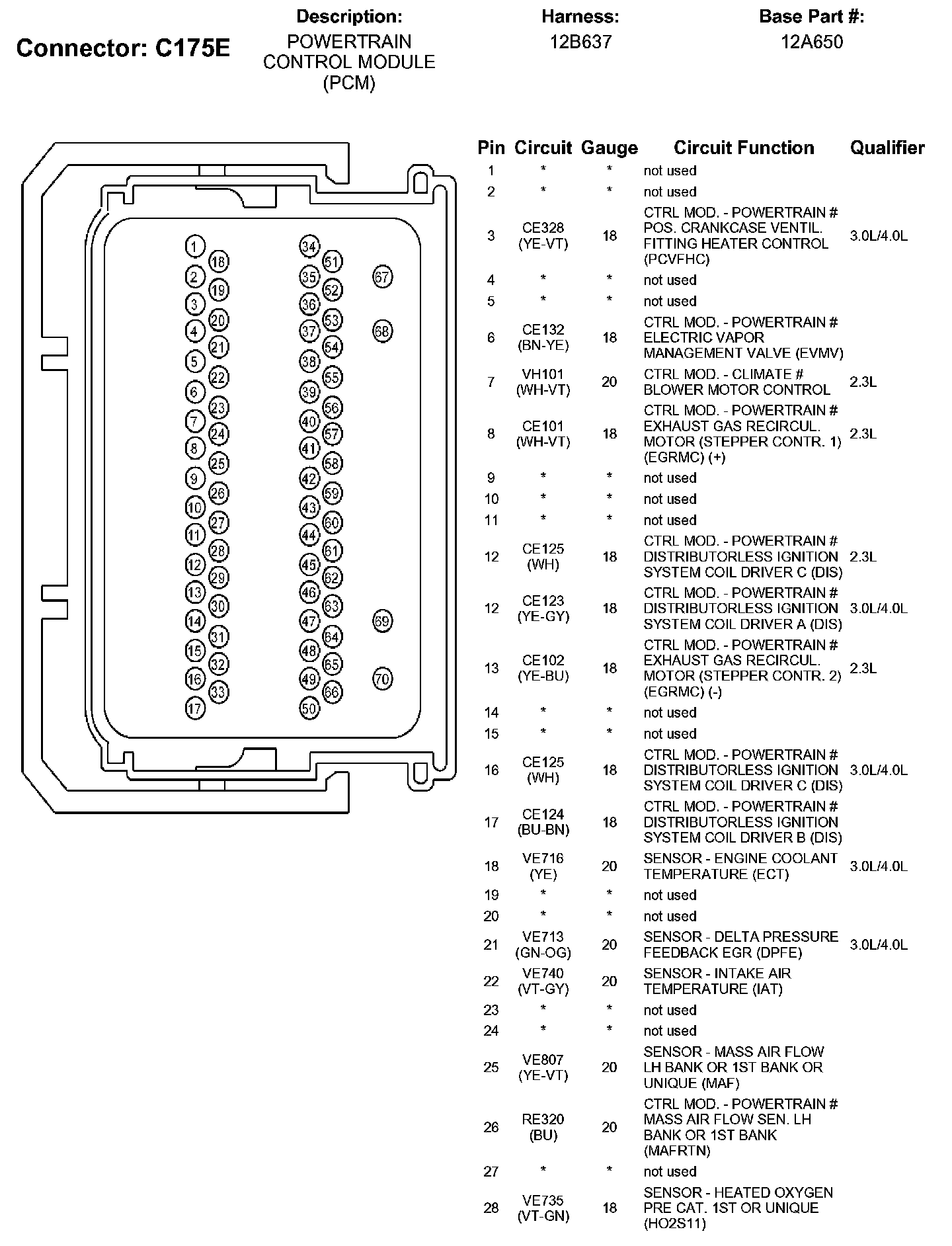

C175E (Part 1):

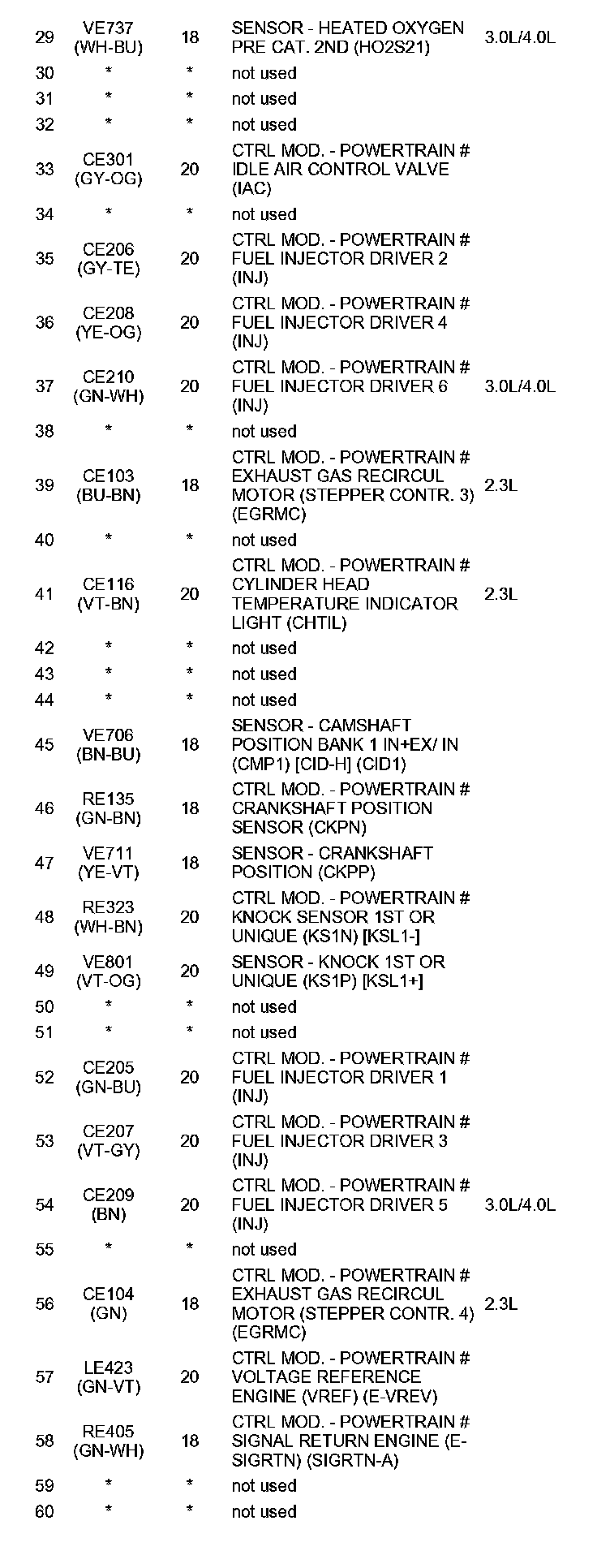

C175E (Part 2):

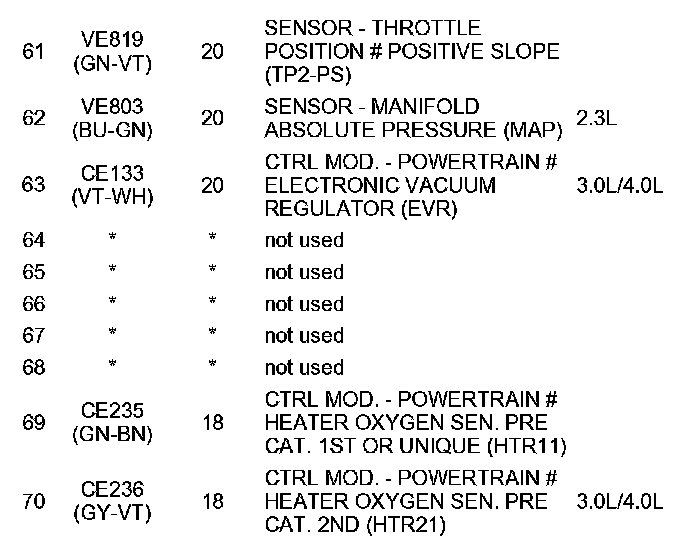

C175E (Part 3):

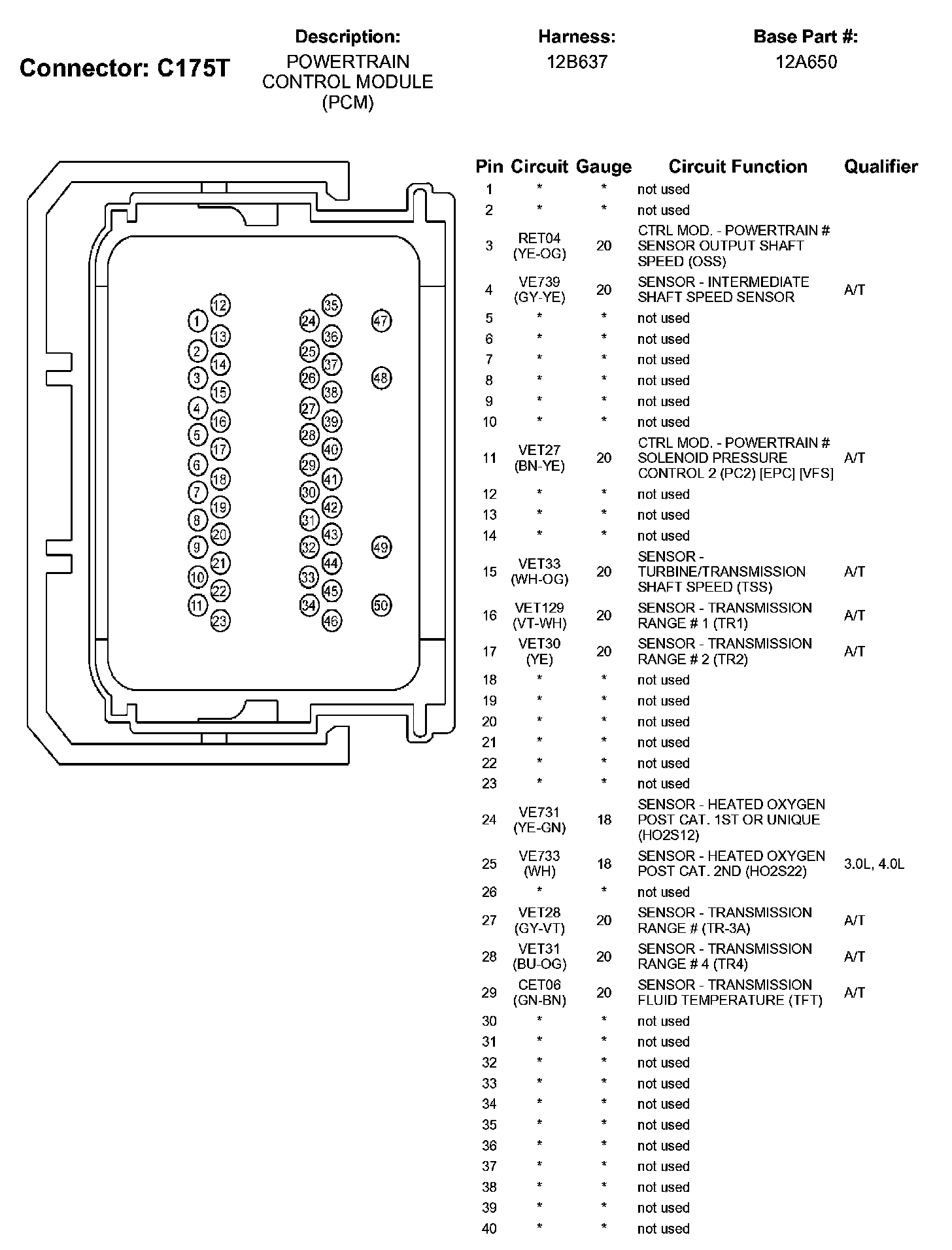

C175T (Part 1):

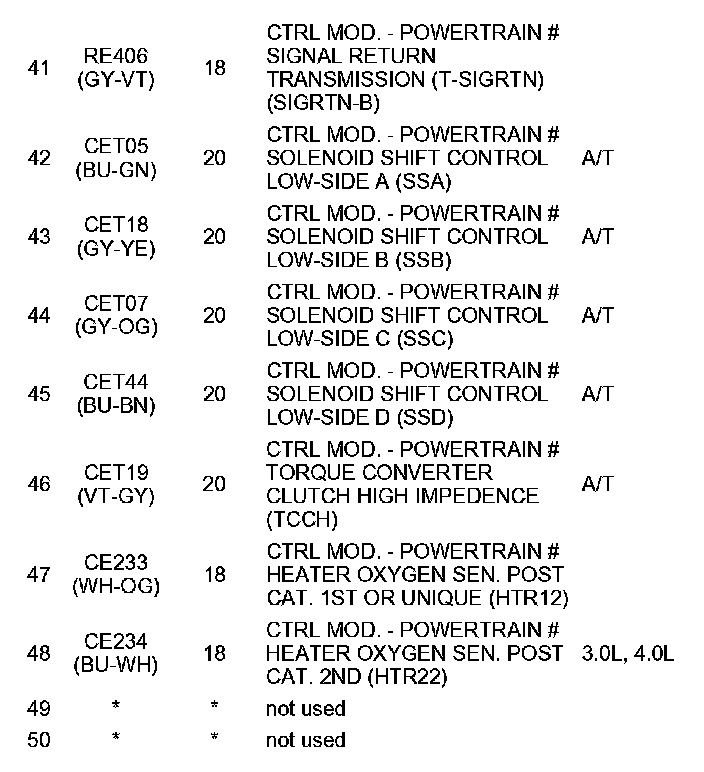

C175T (Part 2):
