Home >> Ford >> 2008 >> Mustang V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

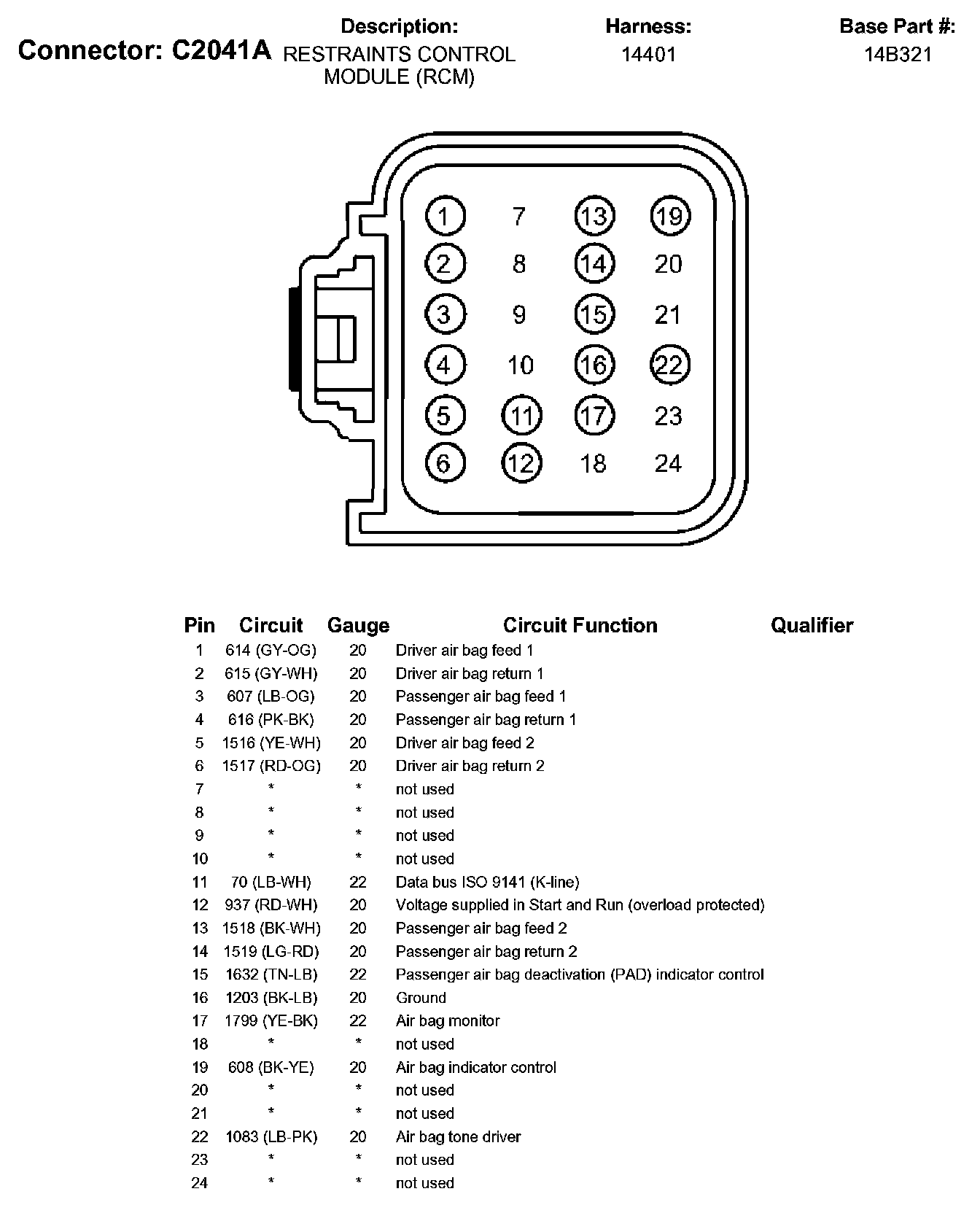

C2041A:

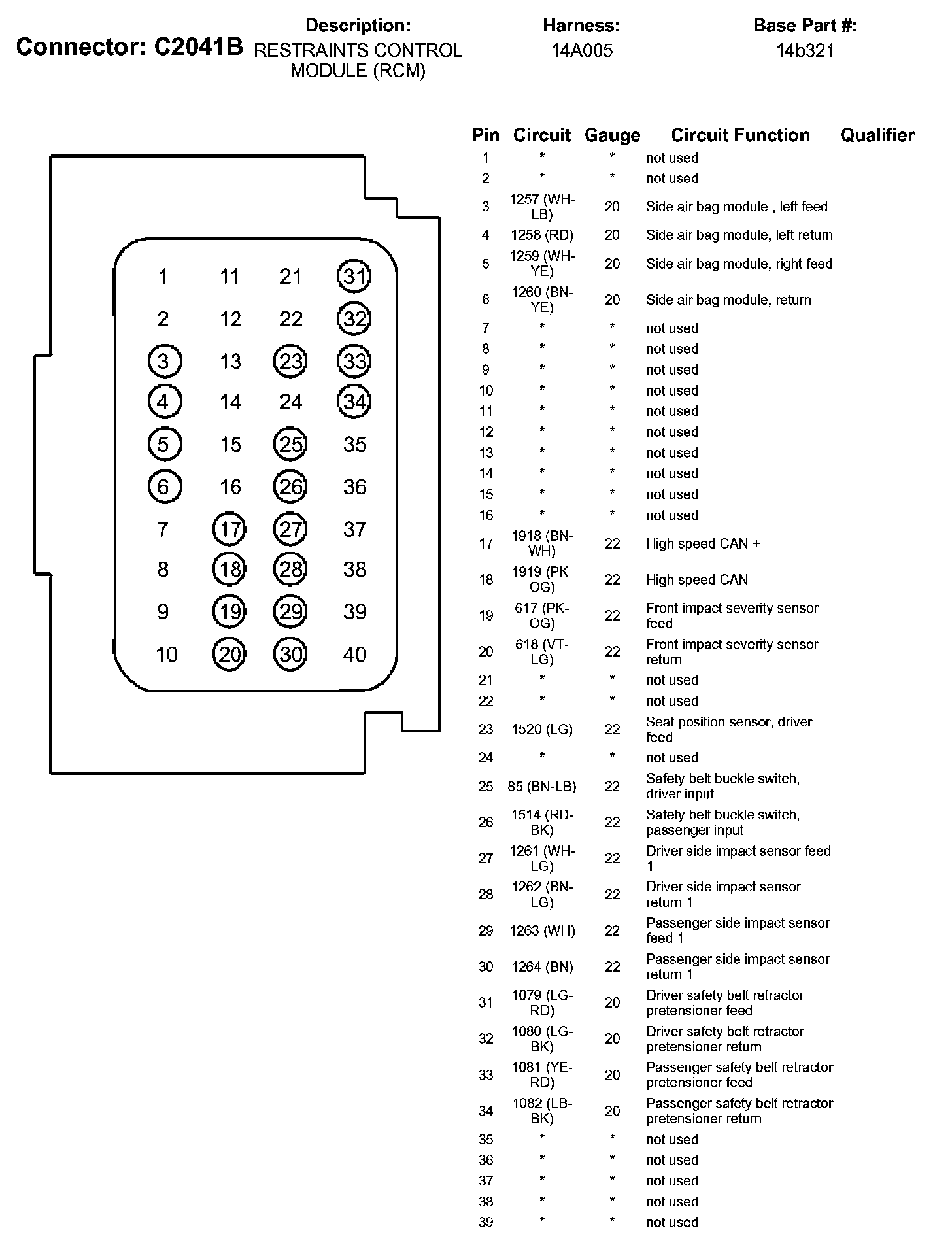

C2041B (Part 1):

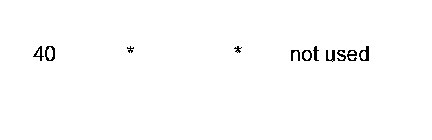

C2041B (Part 2):
