Valve Spring
>>
Valve Spring Retainer
Valve Spring Retainer
Valve Train Components - Exploded View

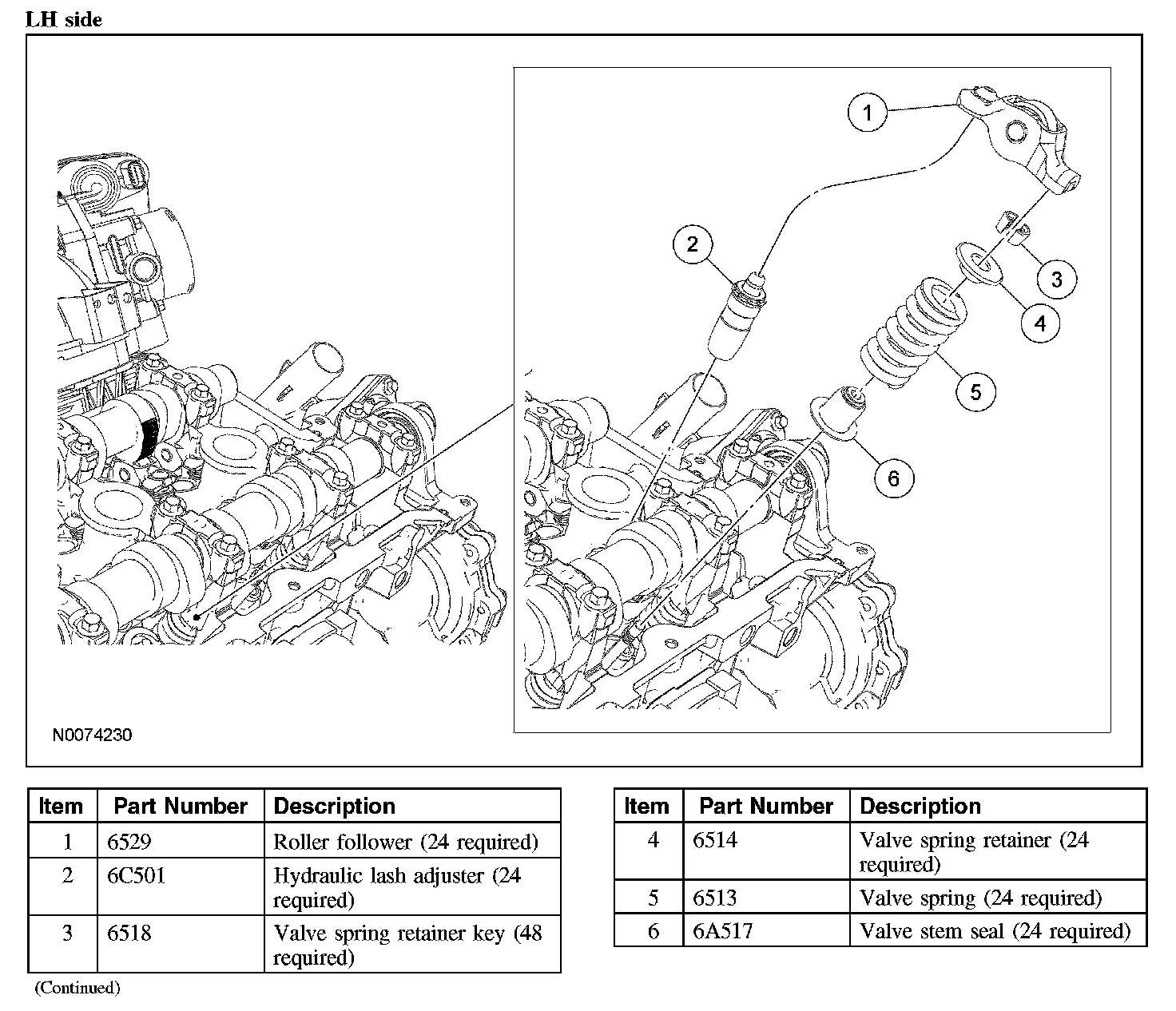

LH side
LH side:

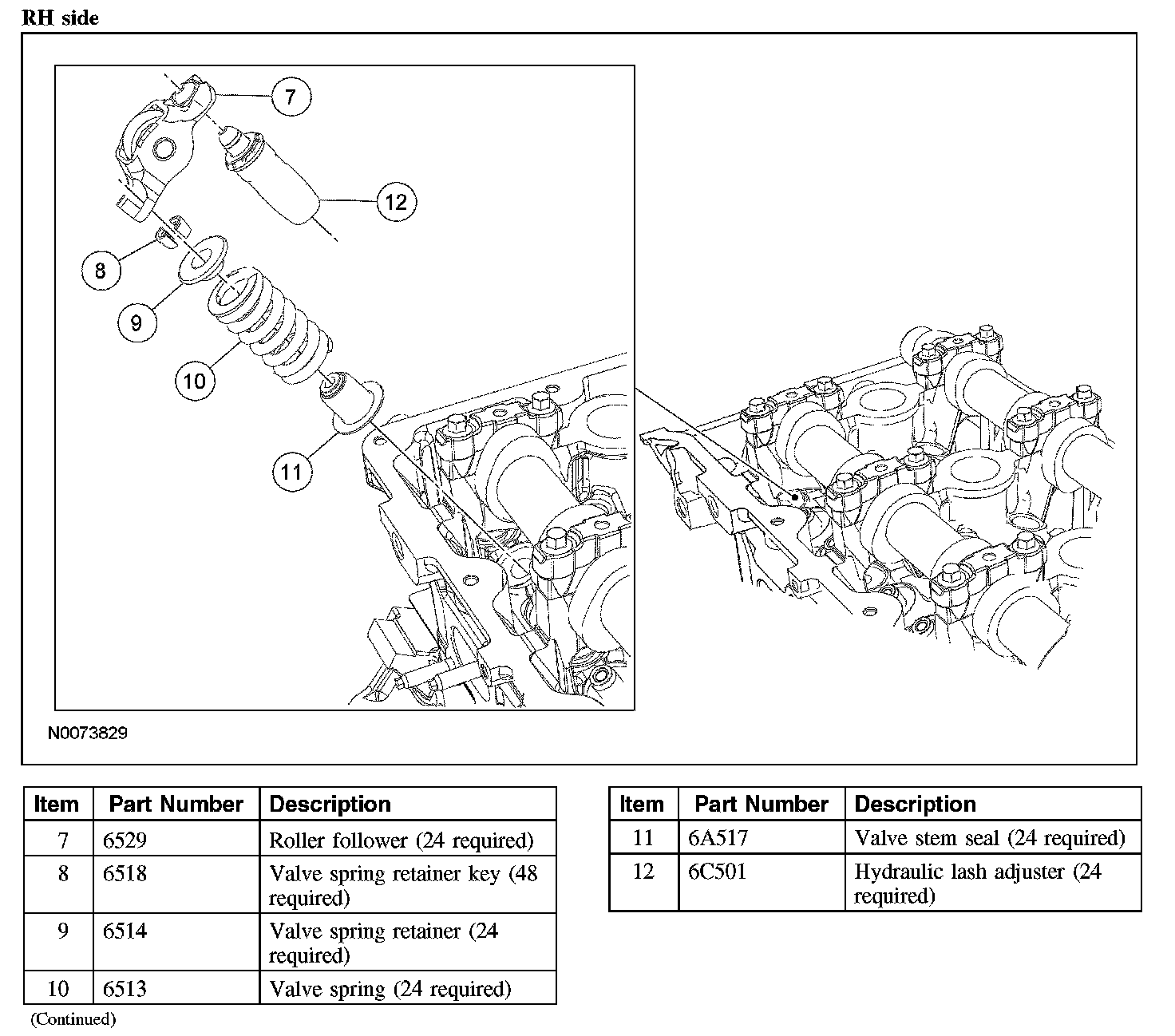

RH side
RH side:
