lemon-mirror
:
Home
>>
Ford
>>
2008
>>
Fusion FWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>
Accessory Protocol Interface Module (APIM)
Accessory Protocol Interface Module (APIM)

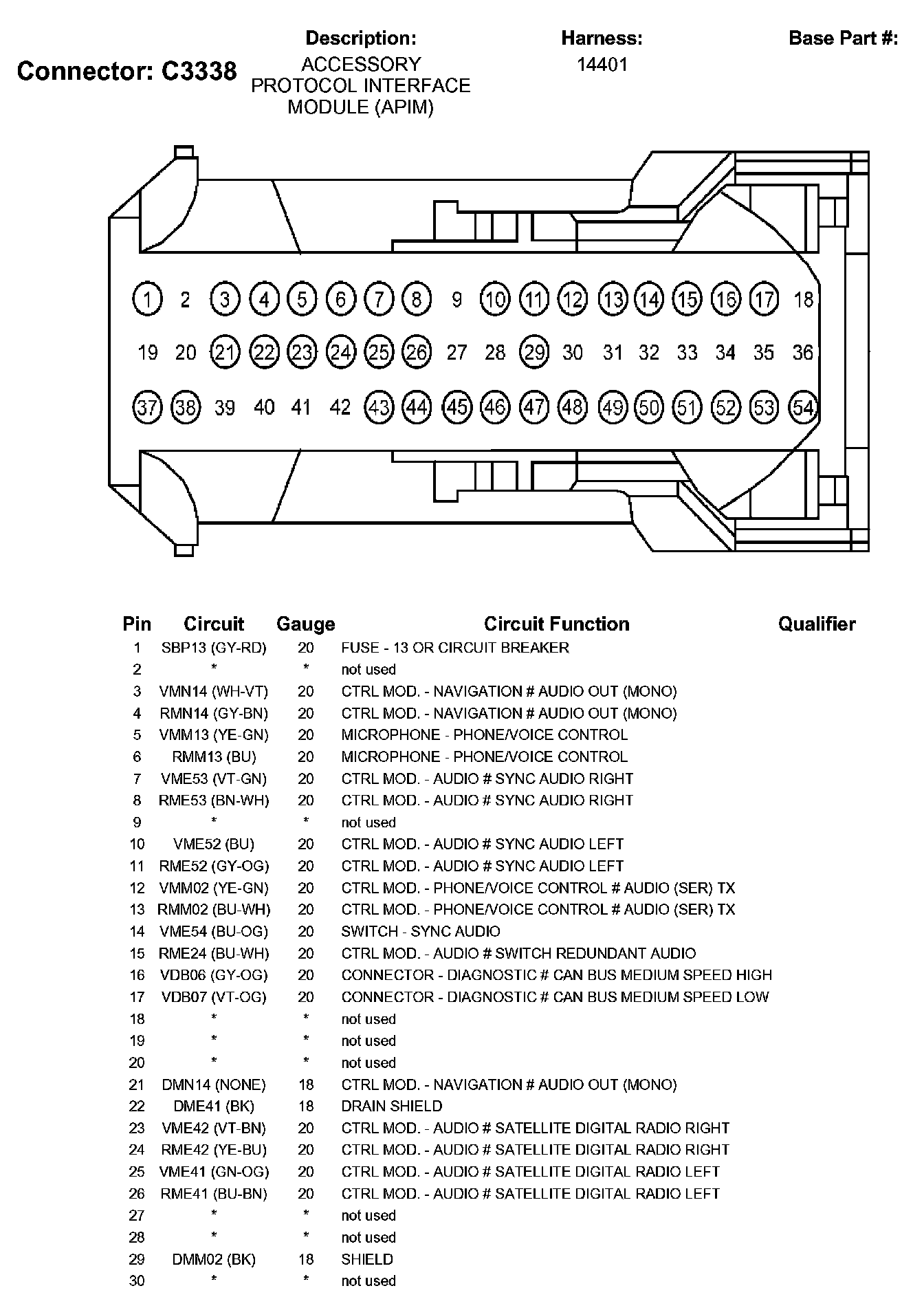

C3338 (Part 1):

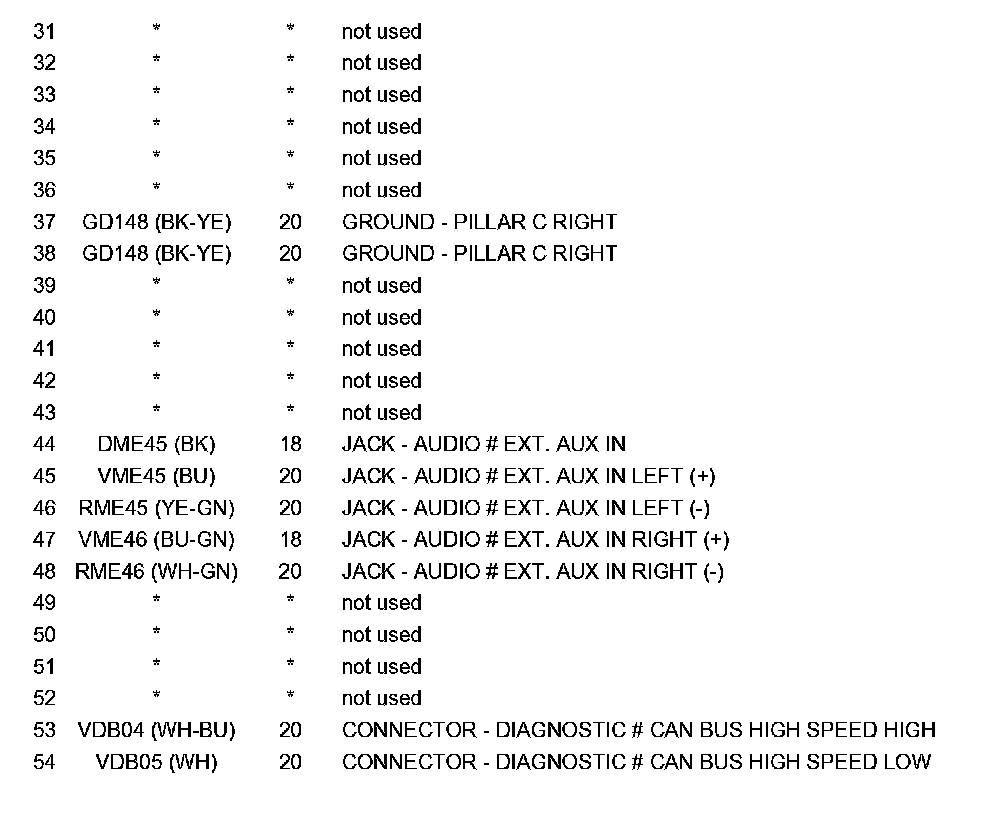

C3338 (Part 2):
