Home >> Ford >> 2008 >> Fusion FWD L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

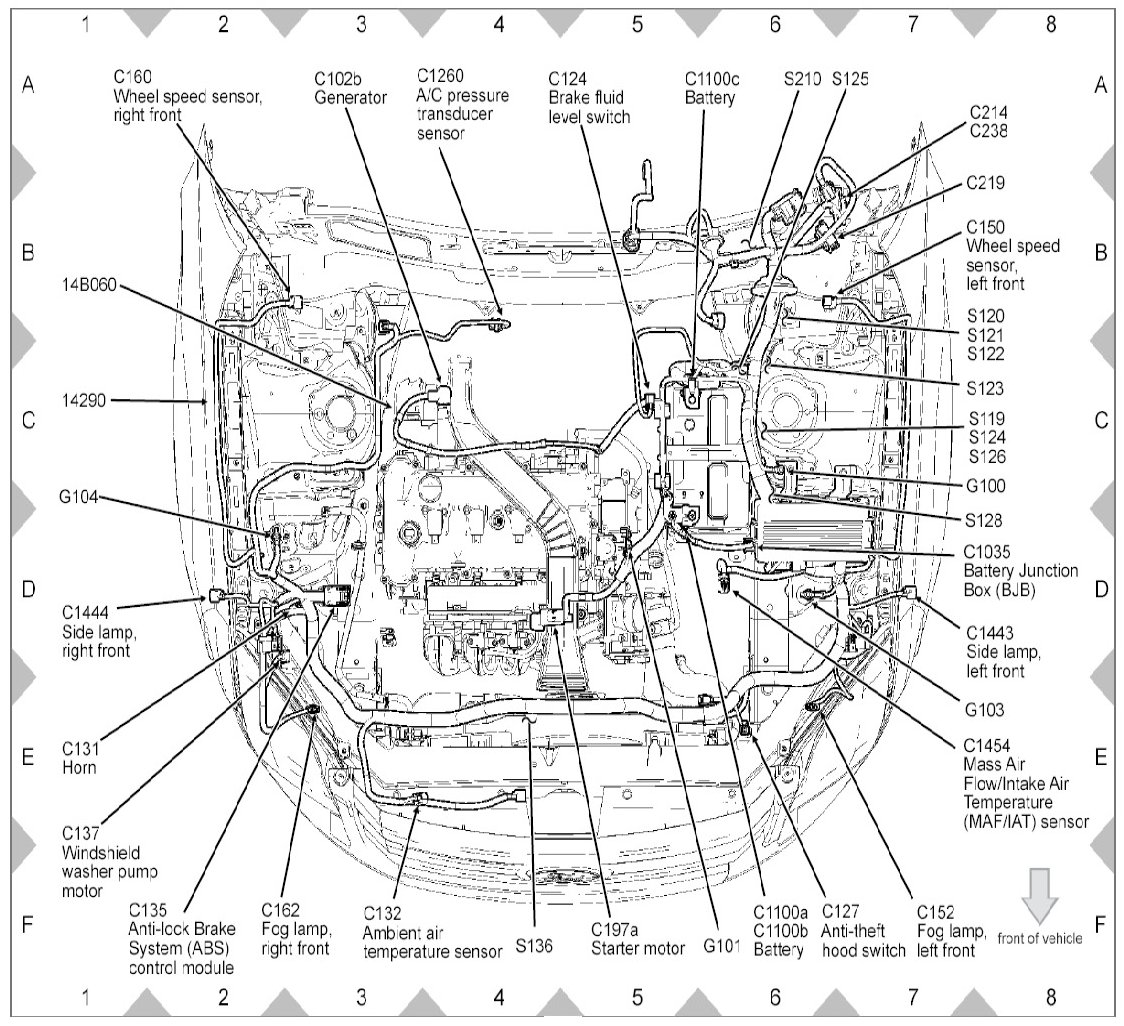

View 151-1:

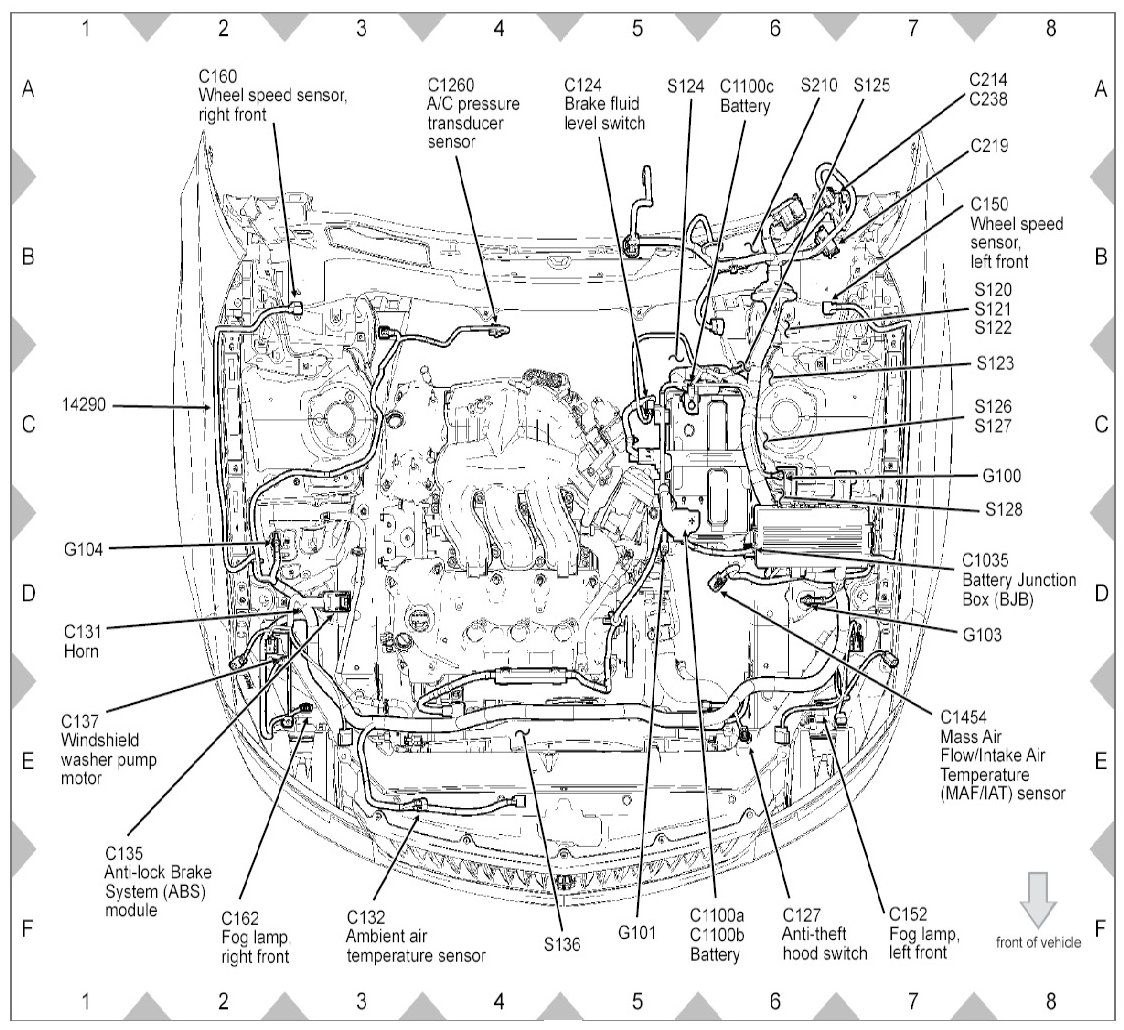

View 151-3:



View 151-5:
