Oil Filter, Engine

Engine Lubrication Components - Exploded View

Oil Filter Element, Oil Filter Adapter and Oil Pressure Sender

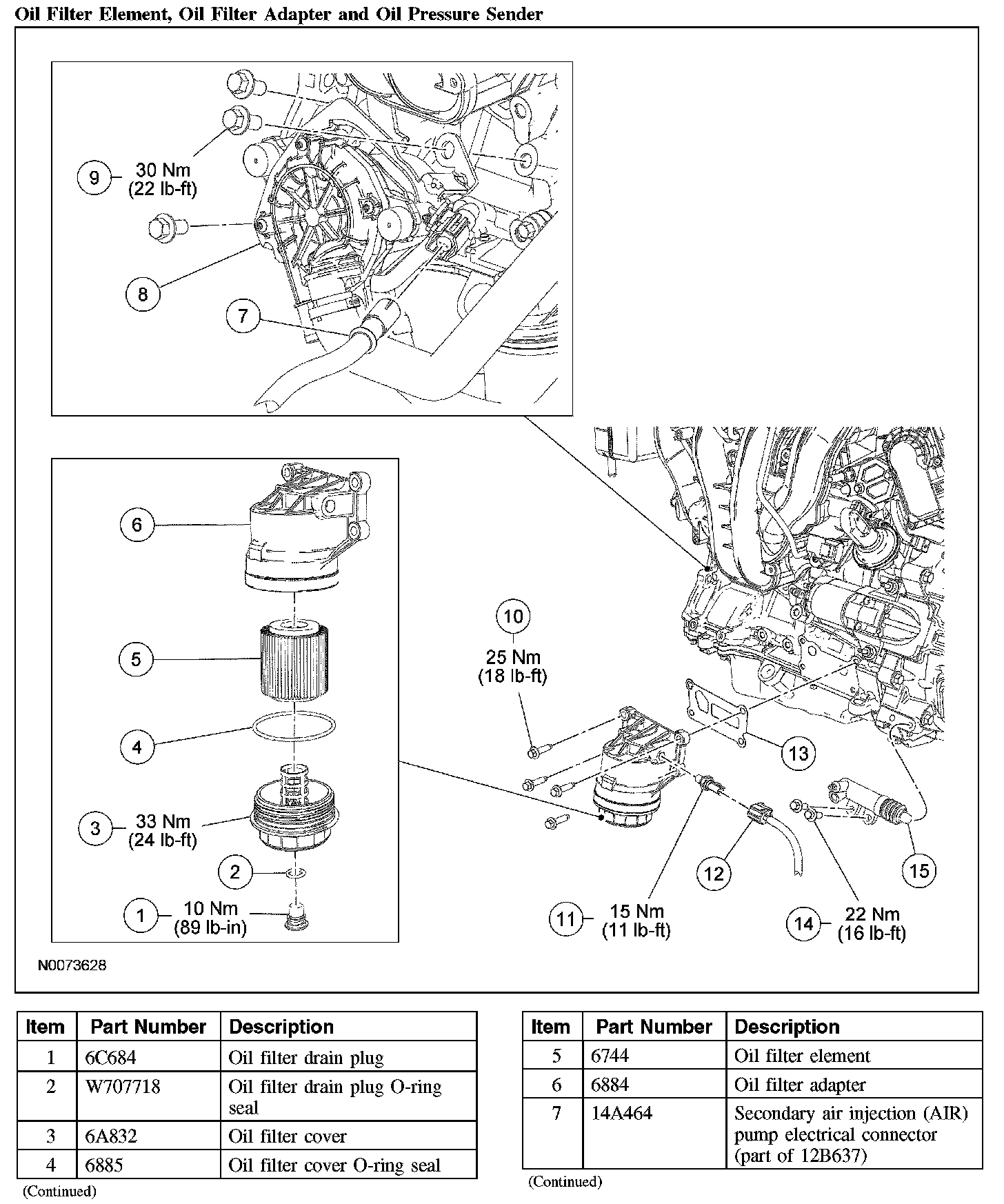

Oil Filter Element, Oil Filter Adapter and Oil Pressure Sender (Part 1):

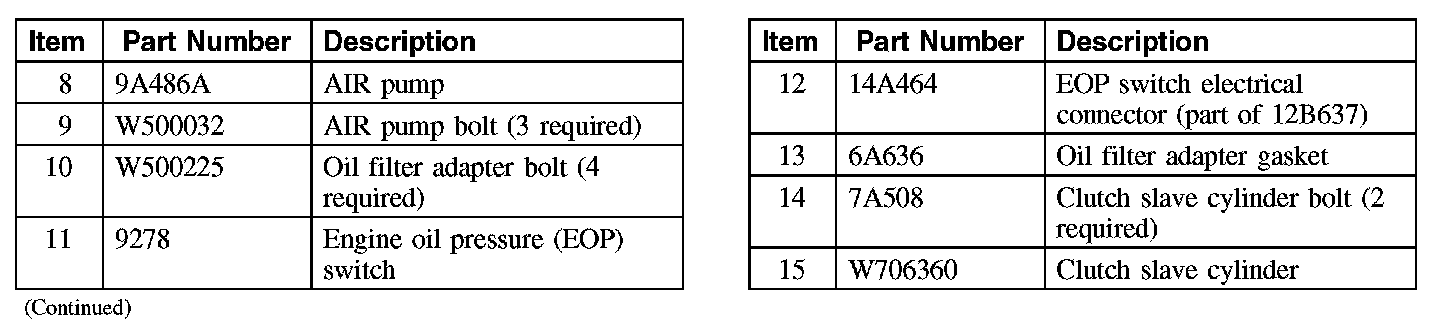

Oil Filter Element, Oil Filter Adapter and Oil Pressure Sender (Part 2):
