lemon-mirror
:
Home
>>
Ford
>>
2008
>>
Fusion FWD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>
Dual Climate Controlled Seat Module (DCSM)
Dual Climate Controlled Seat Module (DCSM)

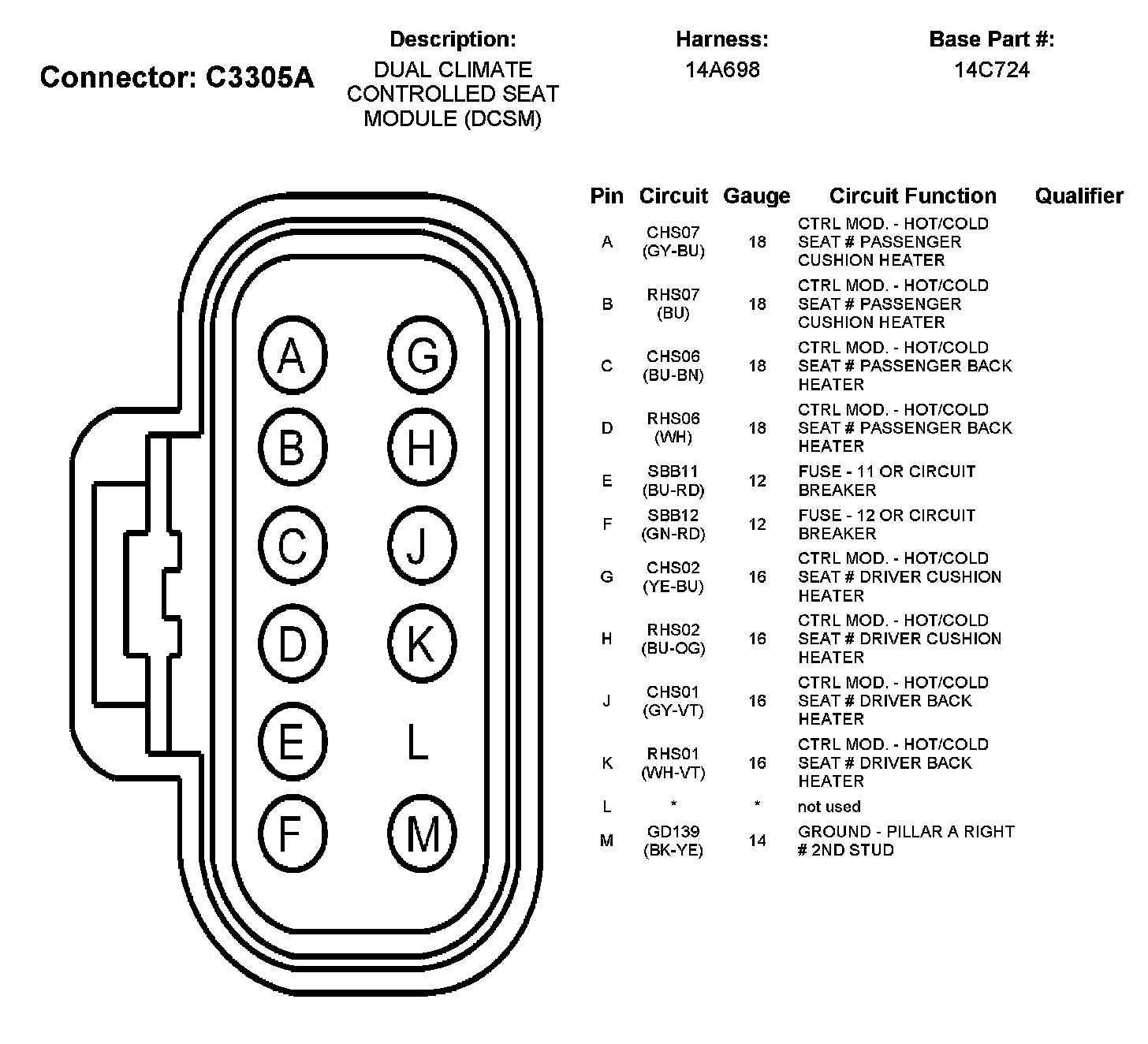

C3305A:

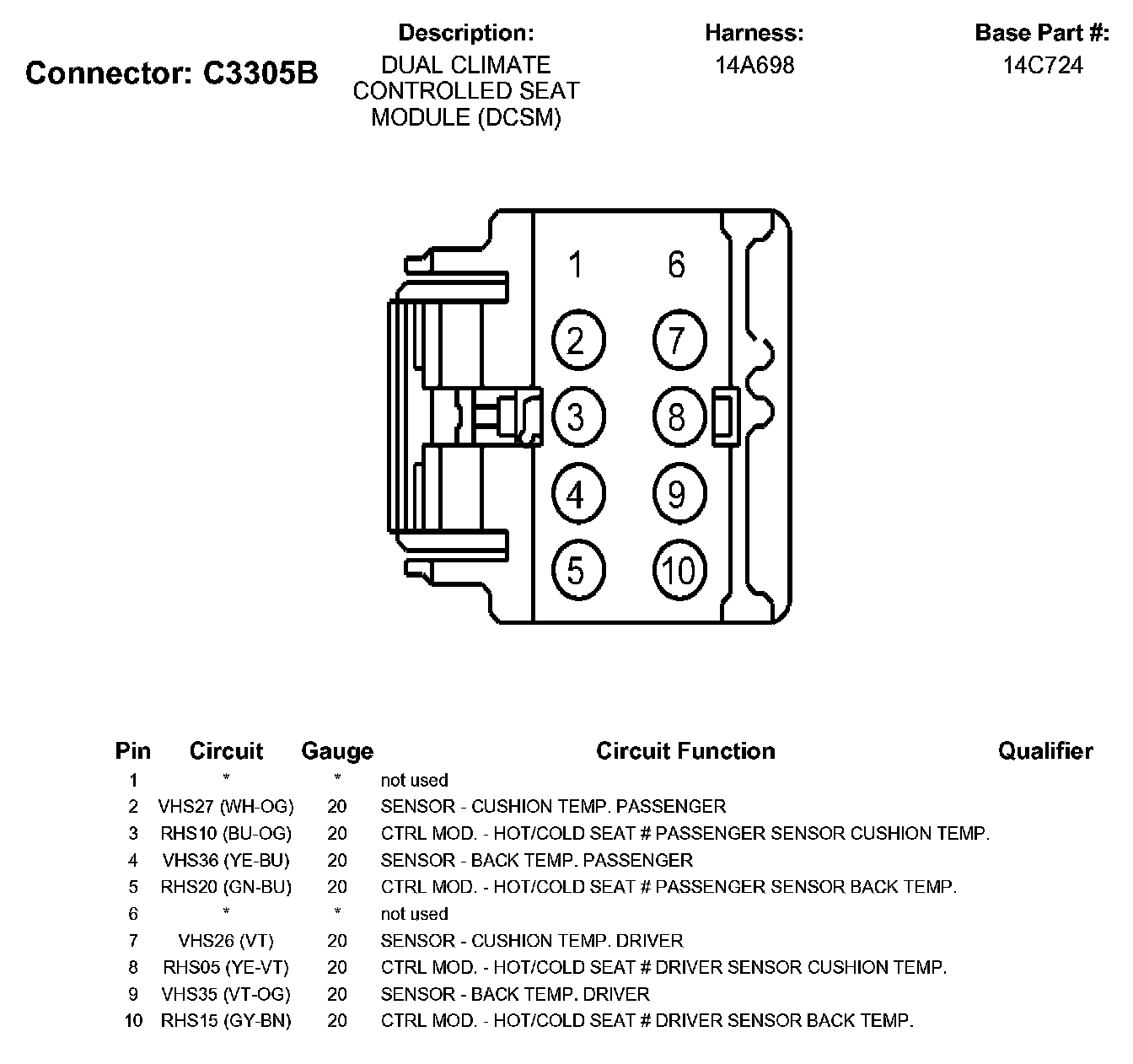

C3305B:

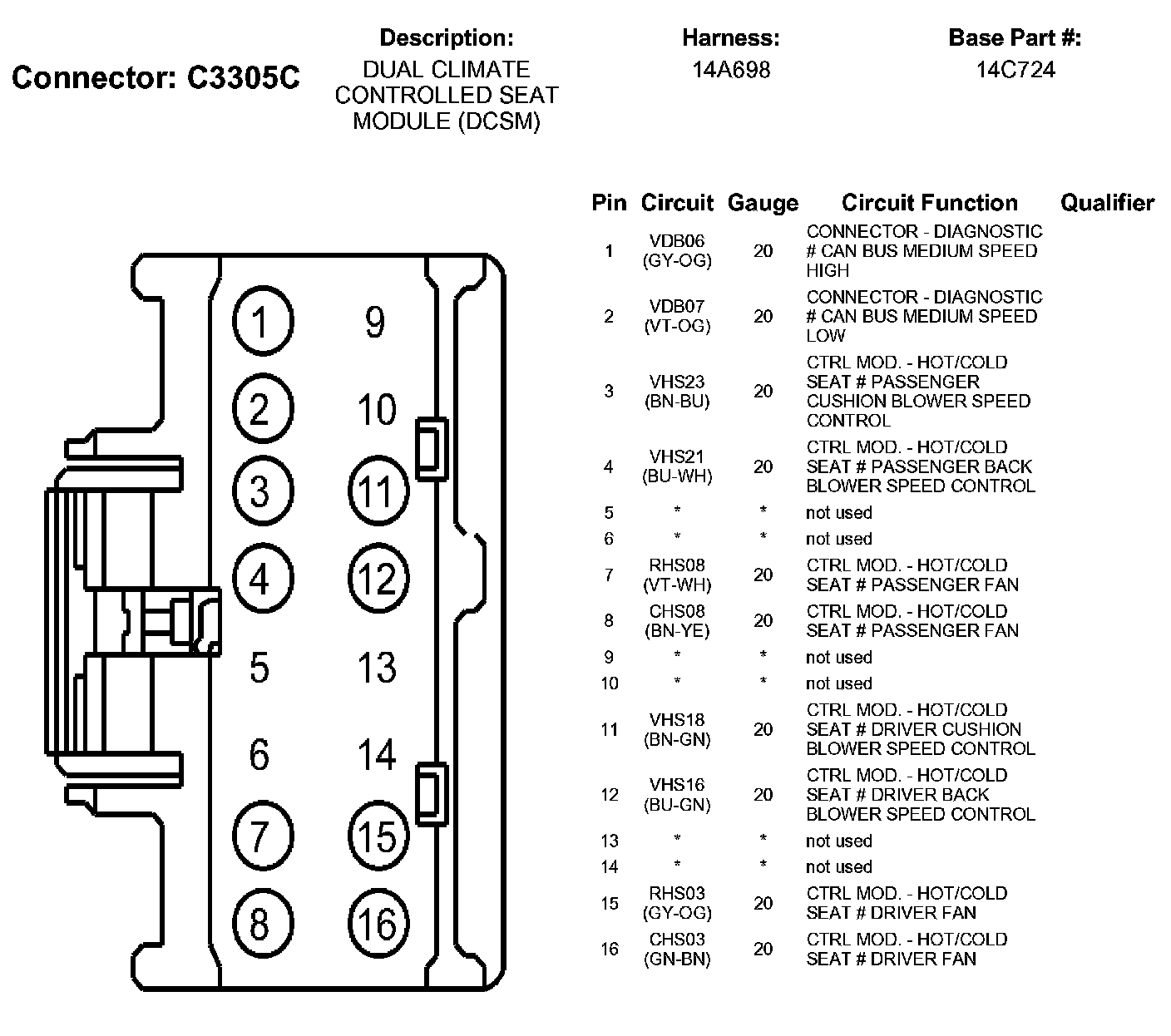

C3305C:
