Home >> Ford >> 2008 >> Fusion FWD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Master Window Control Switch

Master Window Control Switch

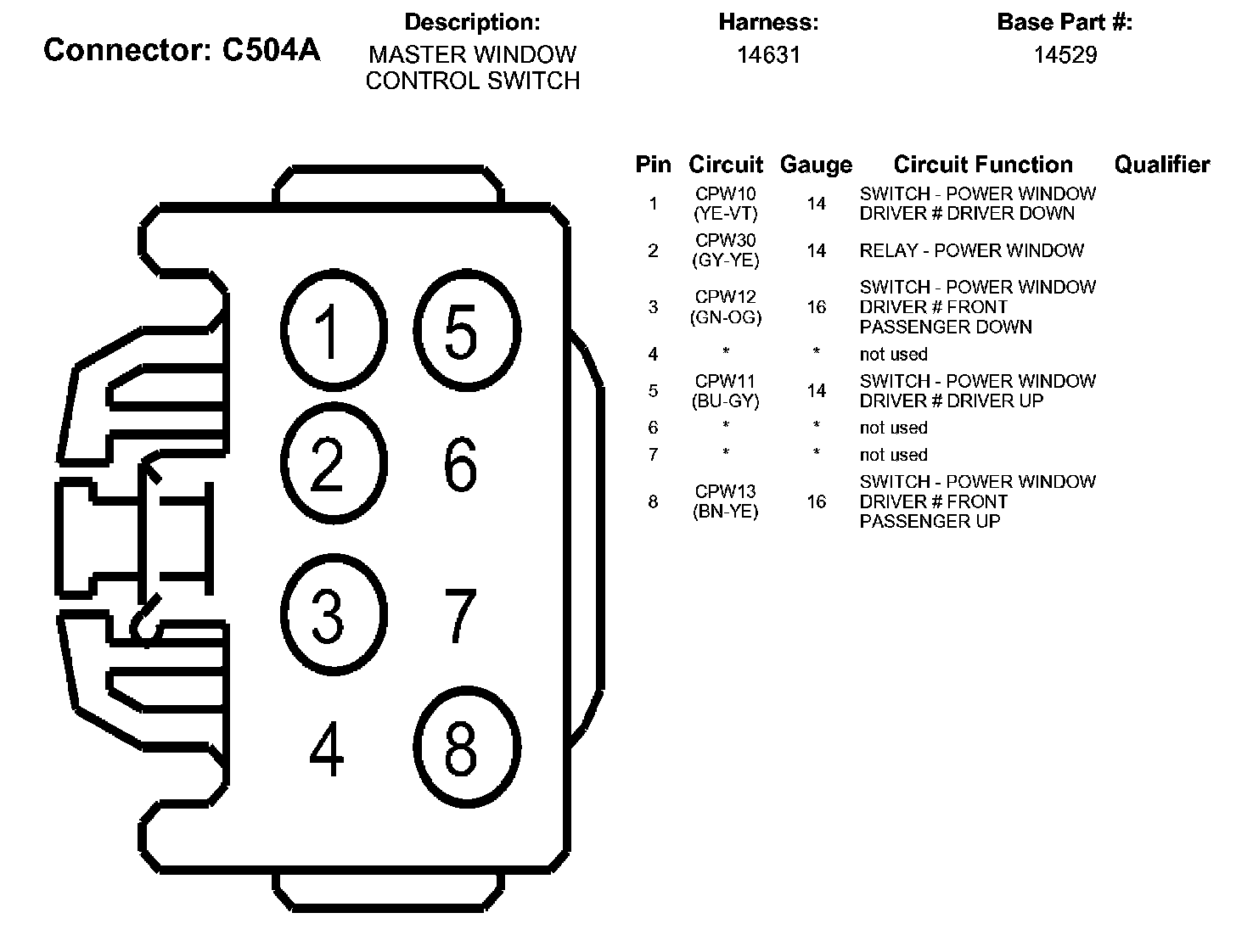

C504A:

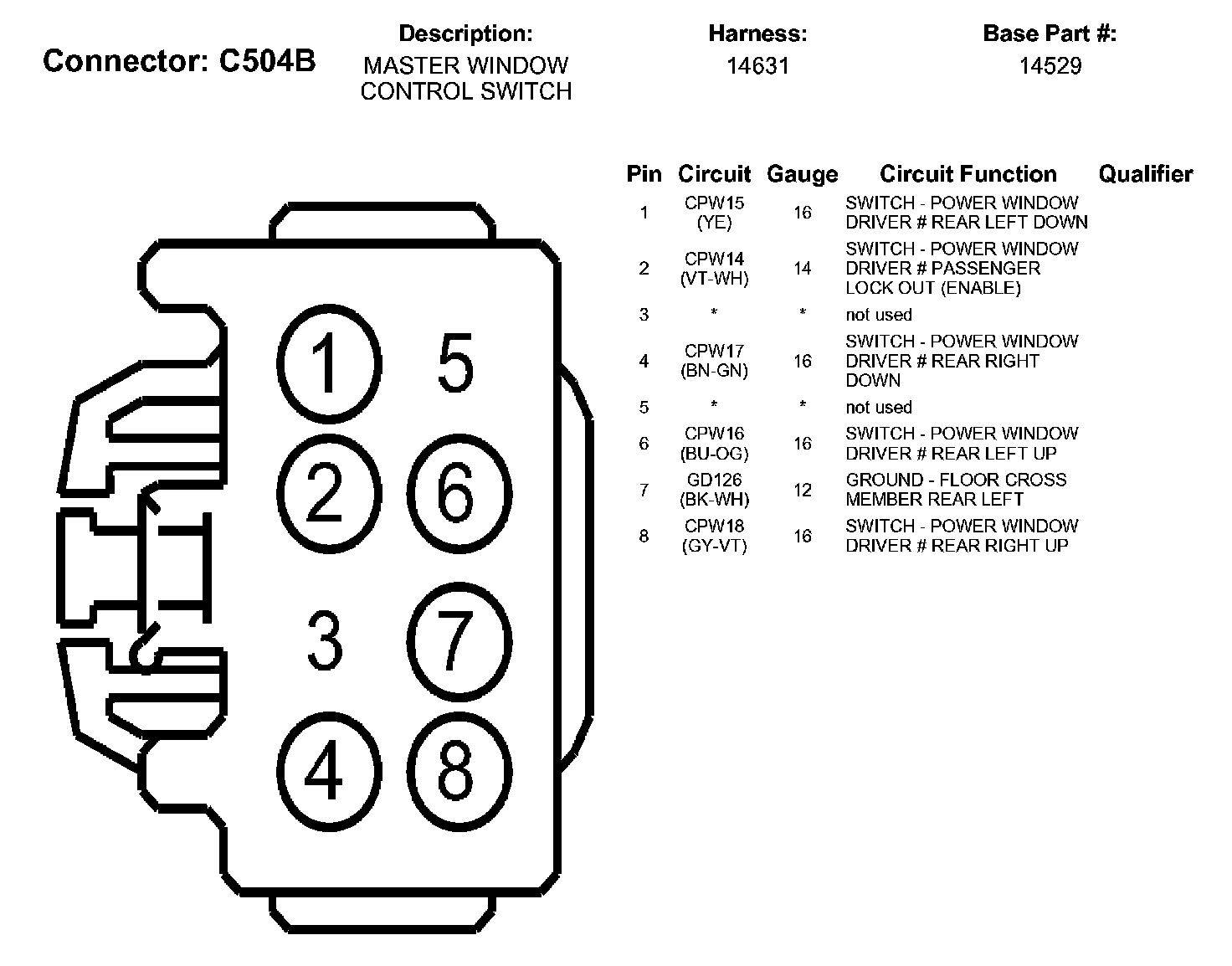

C504B:

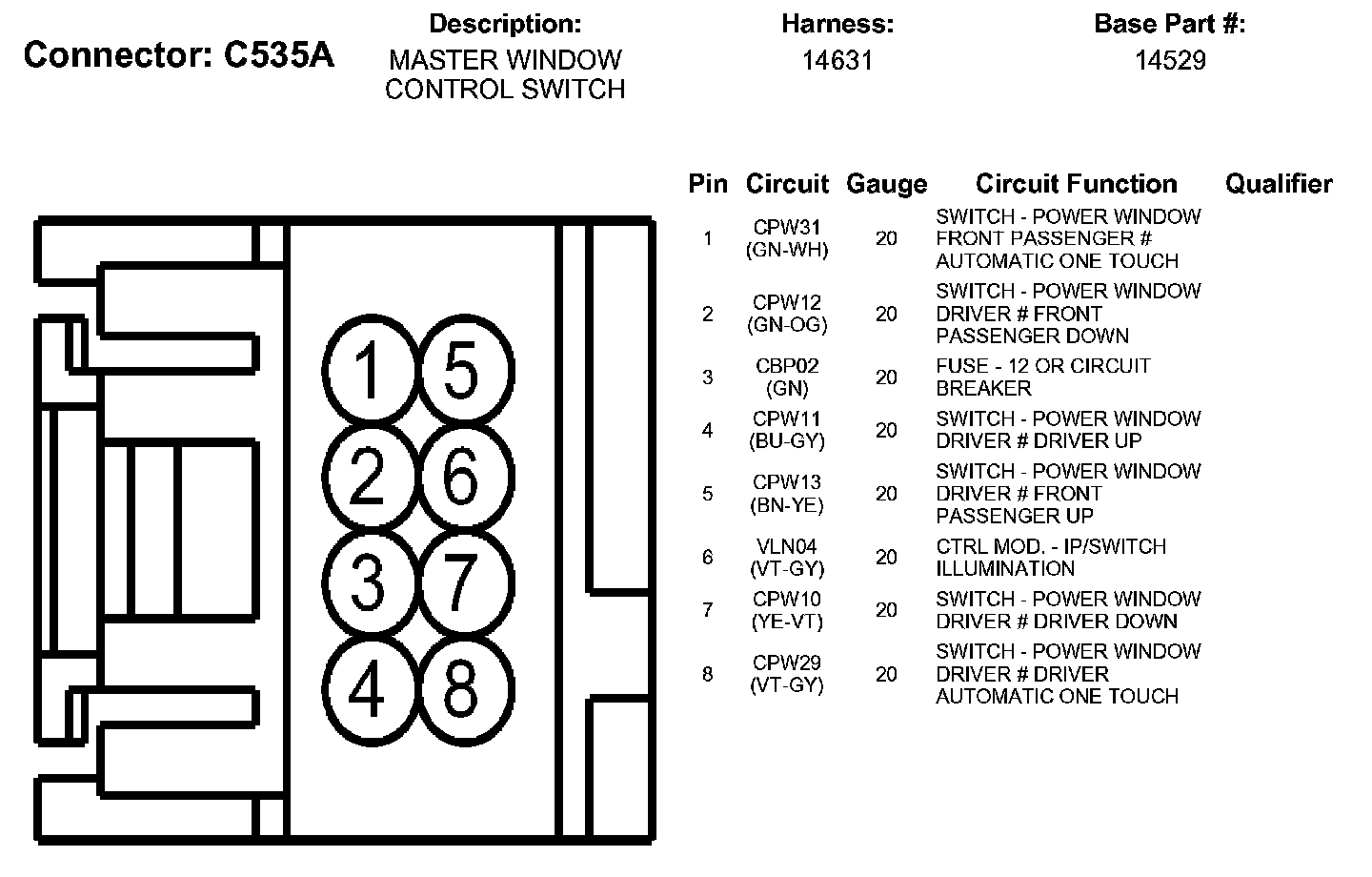

C535A:

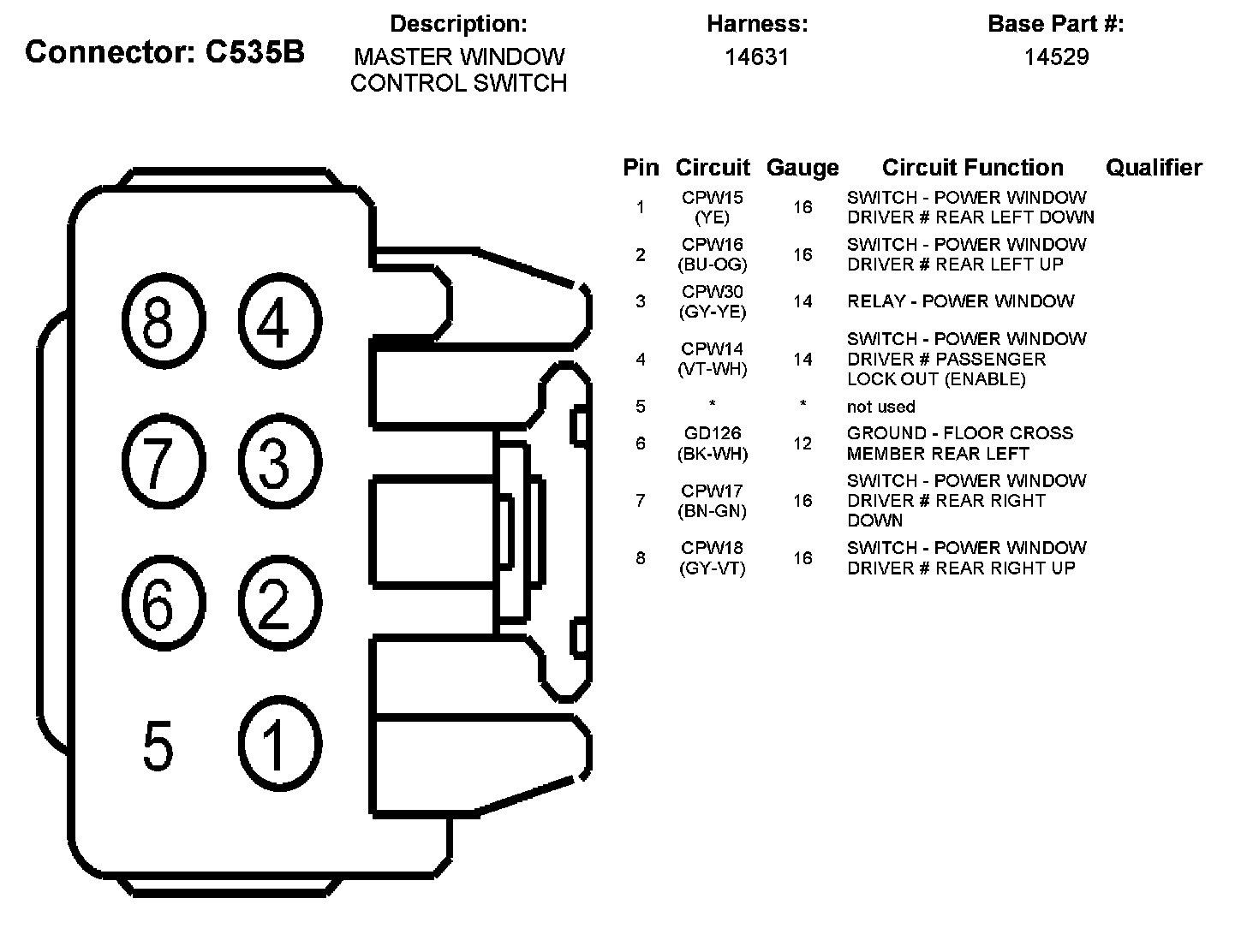

C535B:
