Control Module: Service and Repair

4X4 Control Module

Removal and Installation

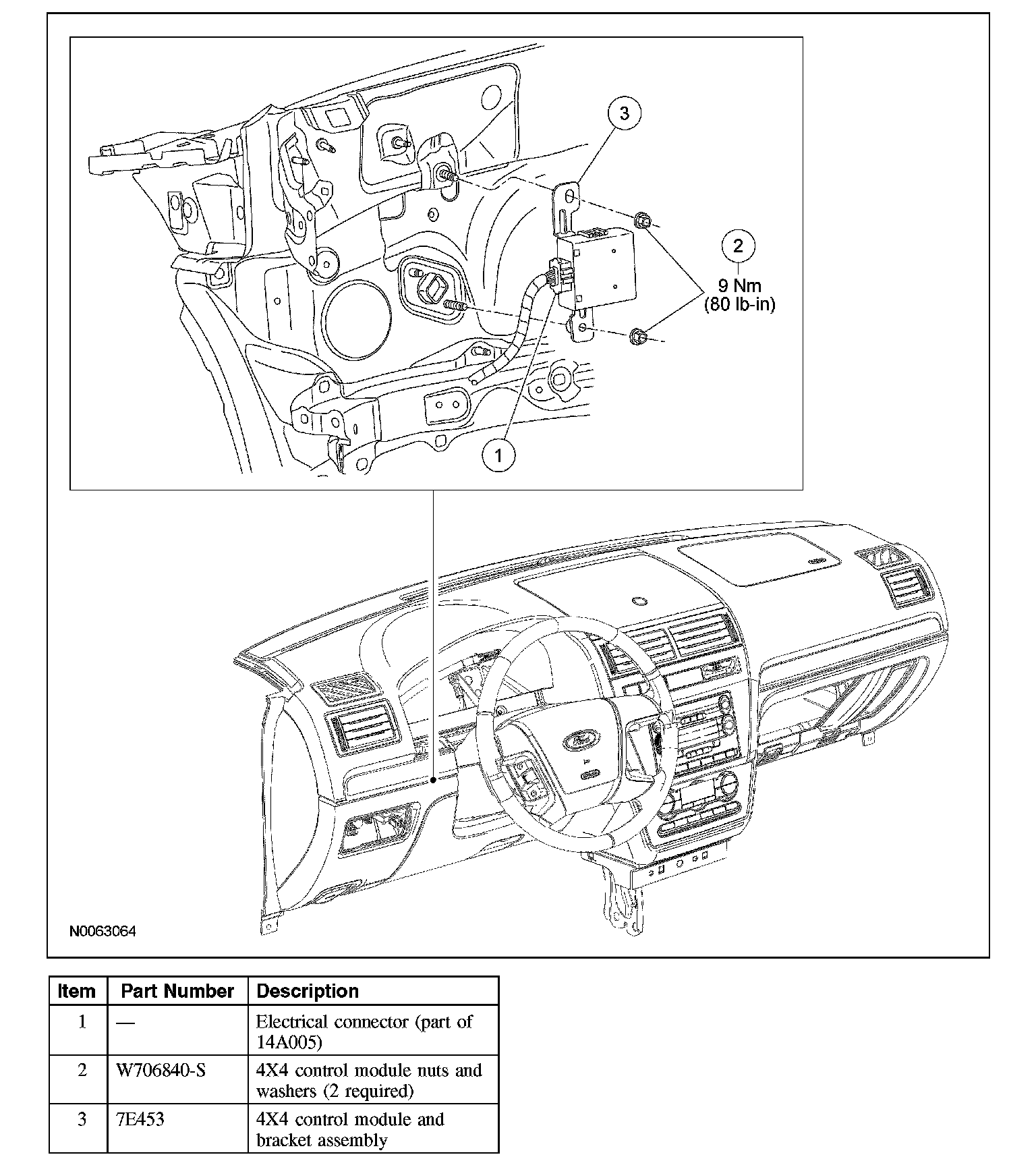

4X4 Control Module:

1. From below the LH side instrument panel, disconnect the 4X4 control module harness connector.
2. Remove the 4X4 control module nuts.
^ To install, tighten to 9 Nm (80 lb-in).

3. Remove the 4X4 control module and bracket.
4. To install, reverse the removal procedure.
