Home >> Ford >> 2008 >> Fusion AWD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case

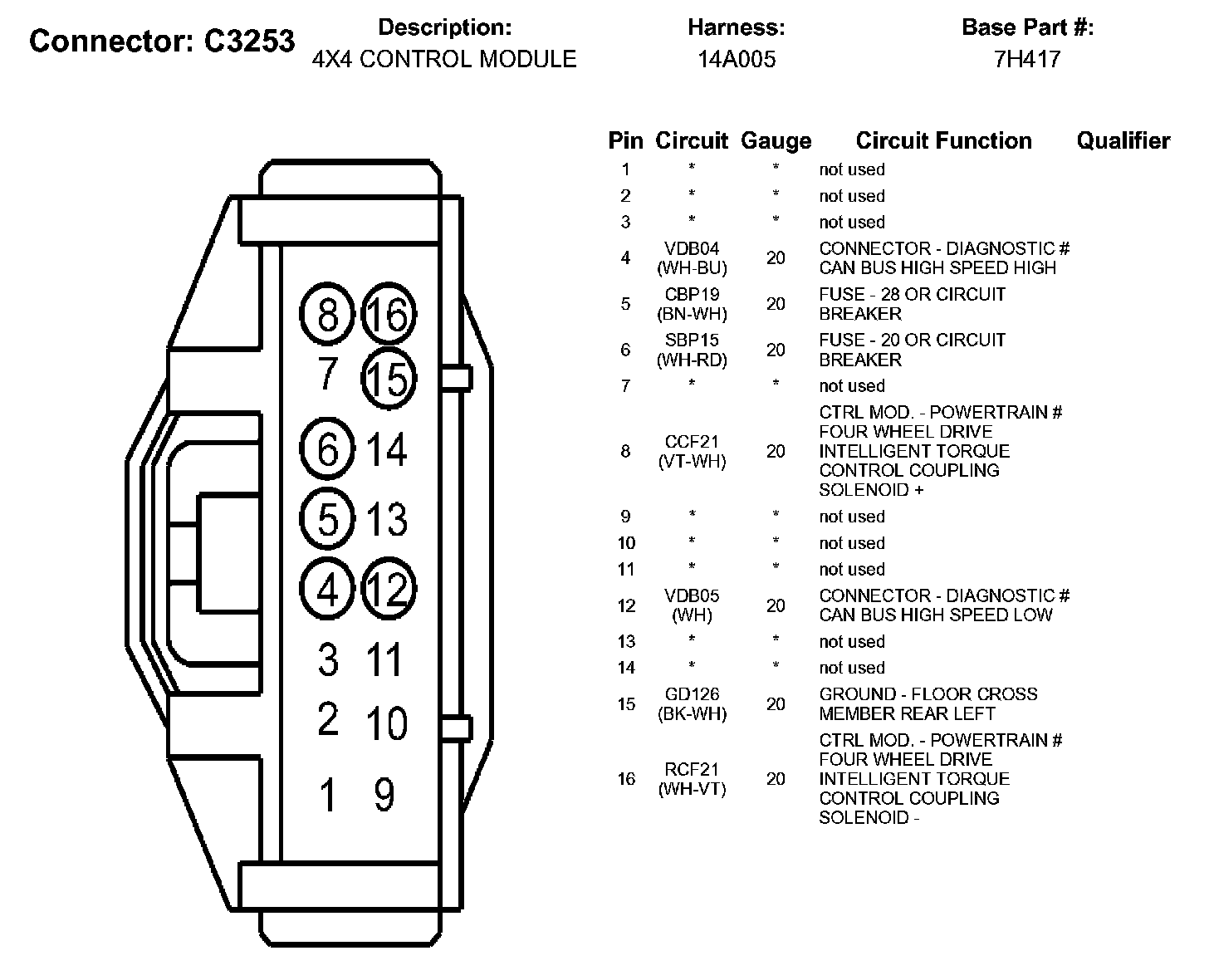

Control Module, Transfer Case

C3253:
