Home >> Ford >> 2008 >> Focus L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Rear Wheel Alignment

Rear Wheel Alignment

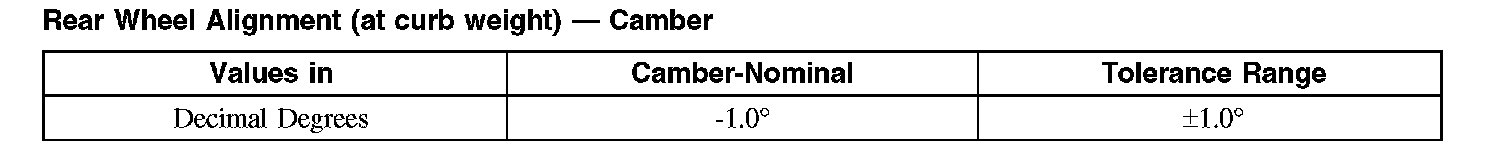

Rear Wheel Alignment (at curb weight) - Camber

Rear Wheel Alignment (at curb weight) - Camber:

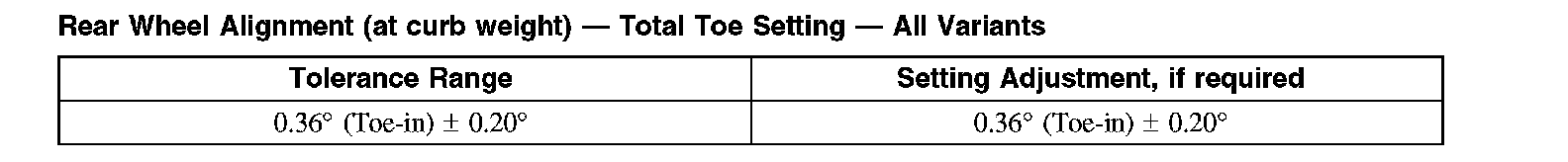

Rear Wheel Alignment (at curb weight) - Total Toe Setting - All Variants

Rear Wheel Alignment (at curb weight) - Total Toe Setting - All Variants:
