Reference Value Symptom Chart

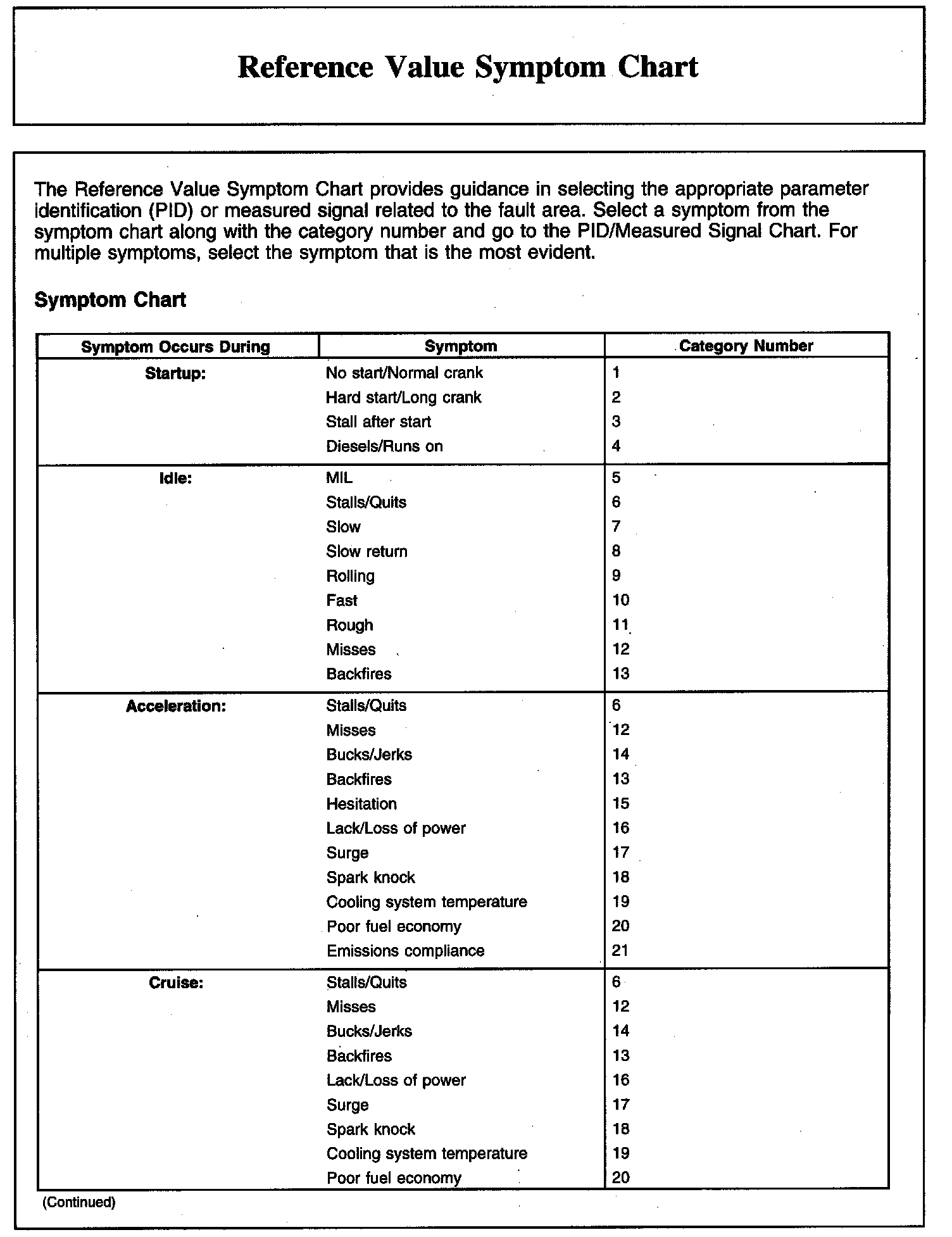

Reference Value Symptom Chart (Part 1):

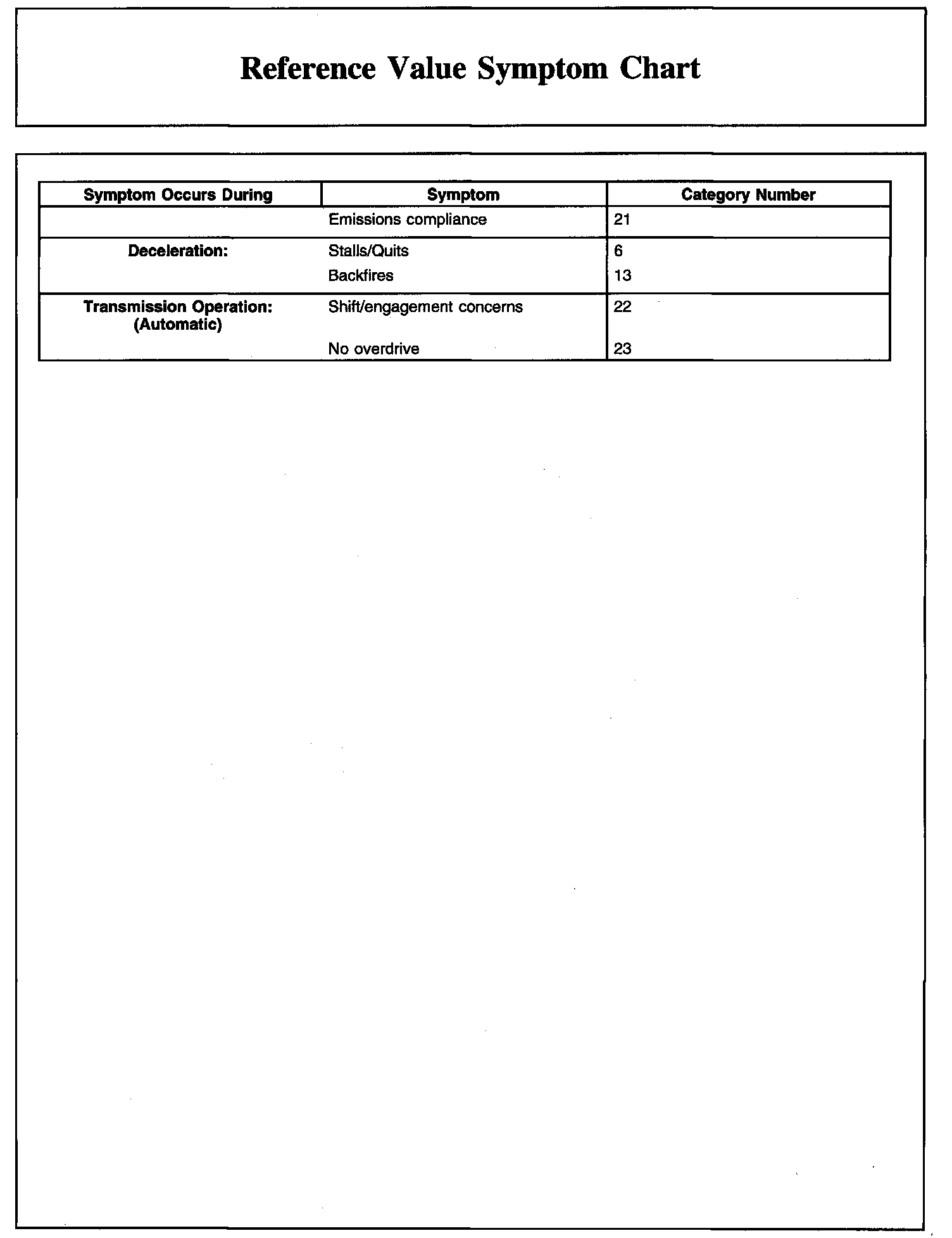

Reference Value Symptom Chart (Part 2):
