Module Configuration
Module Configuration

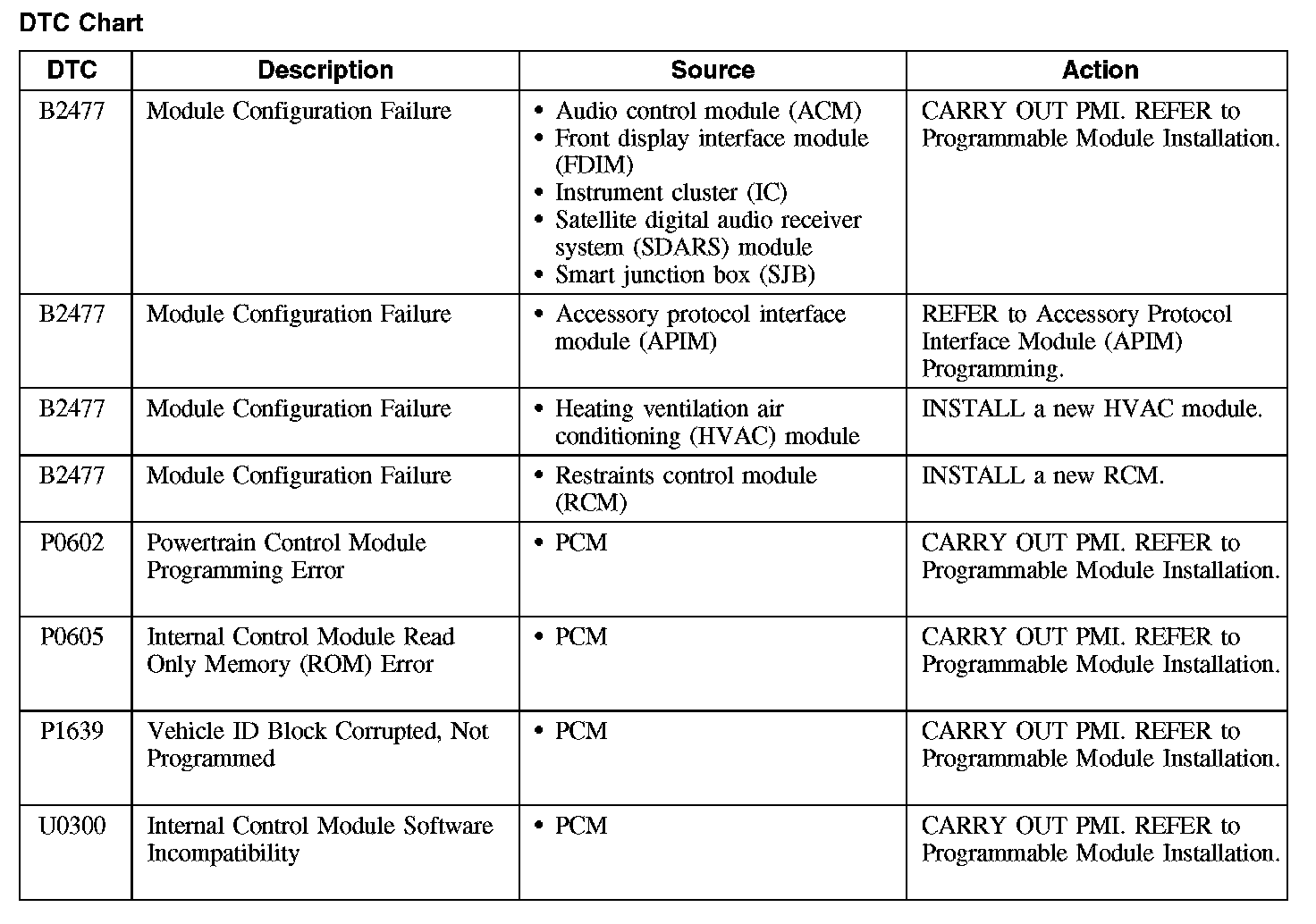

Module Configuration DTC Chart
B2477 / P0602-P1639 / U0300:

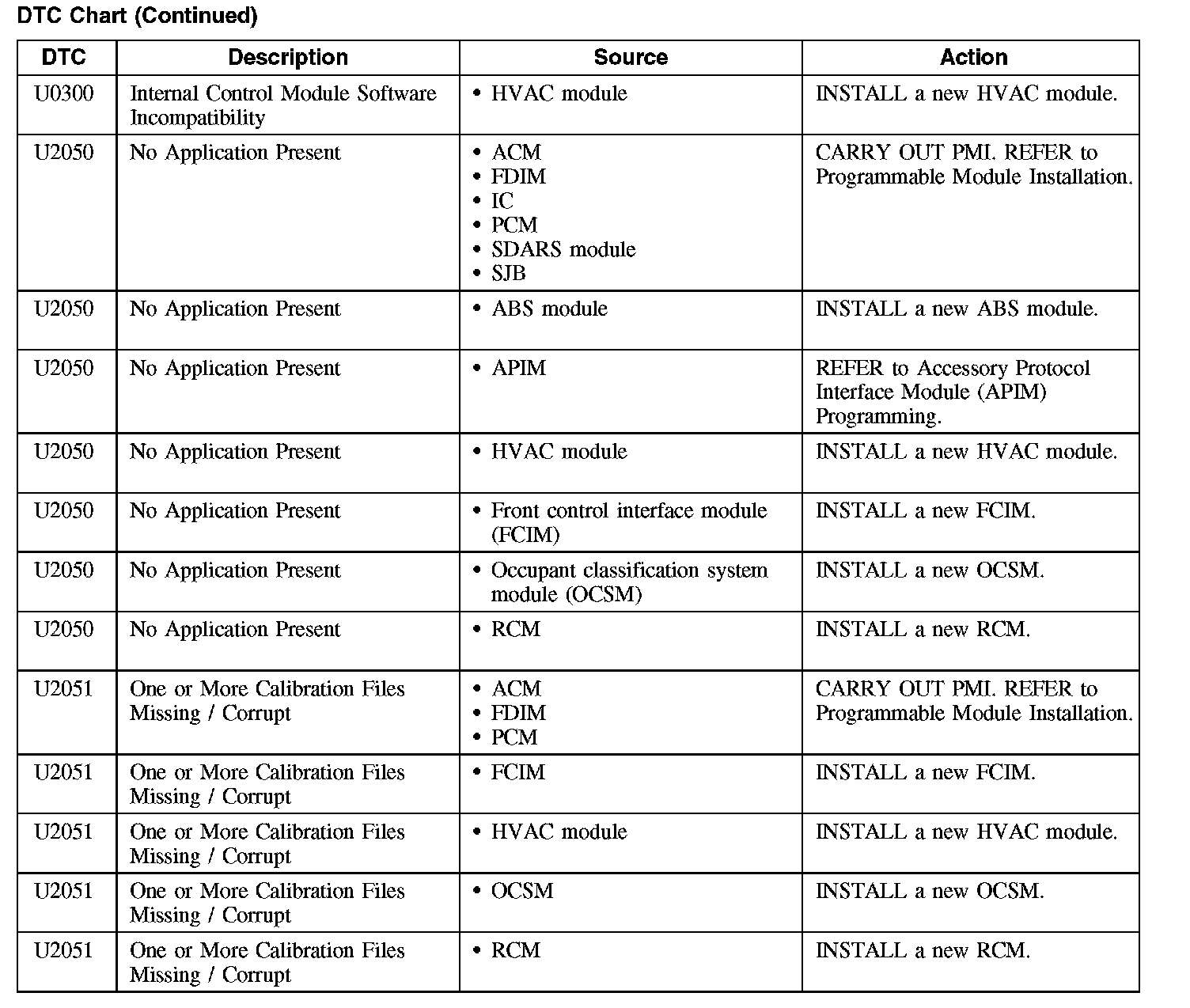

U0300-U2051:
