Oil Pan, Engine

Transaxle Bolts for Oil Pan Removal

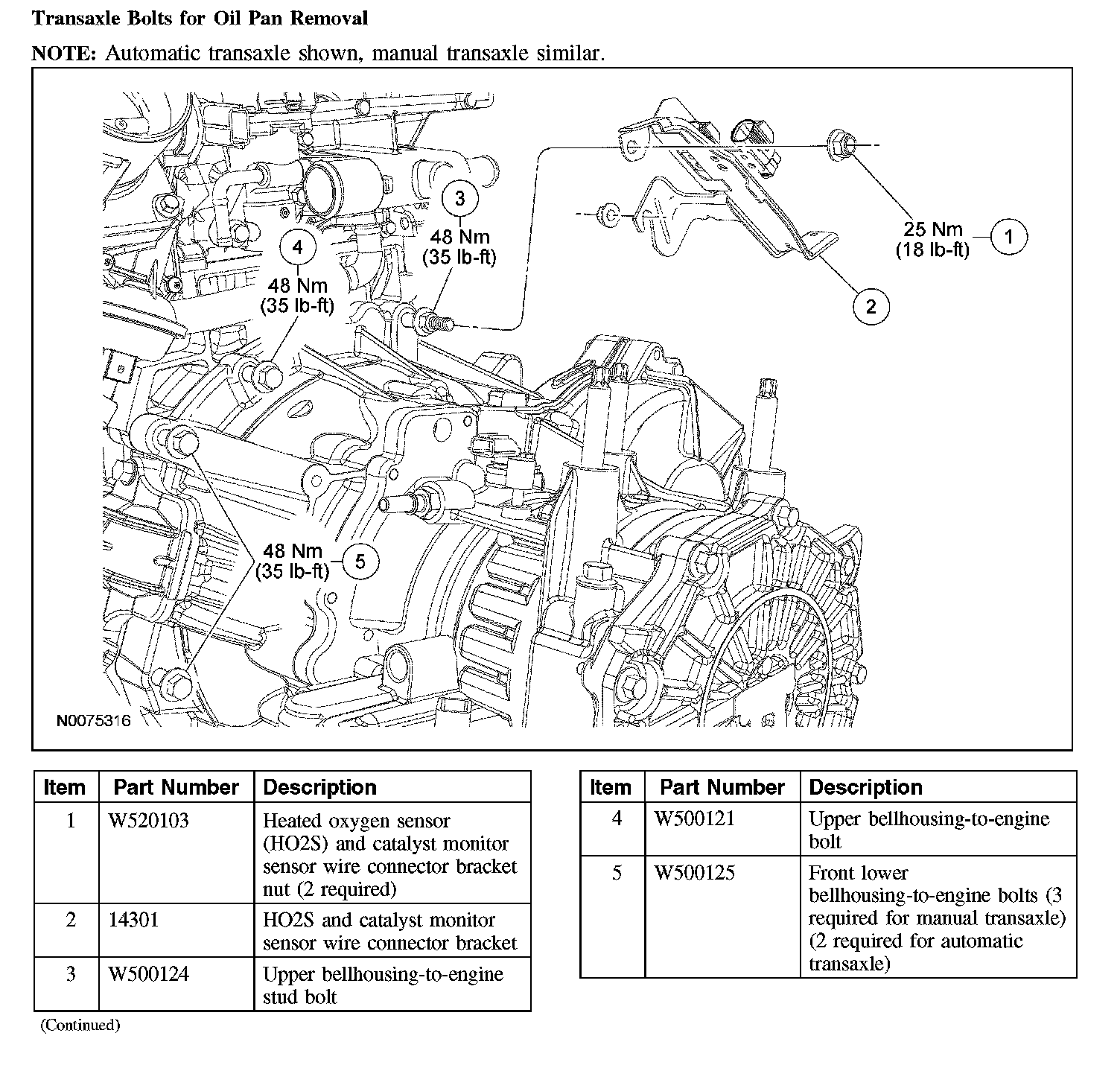

Transaxle Bolts for Oil Pan Removal:





Oil Pan, Oil Pump Screen and Pickup Tube

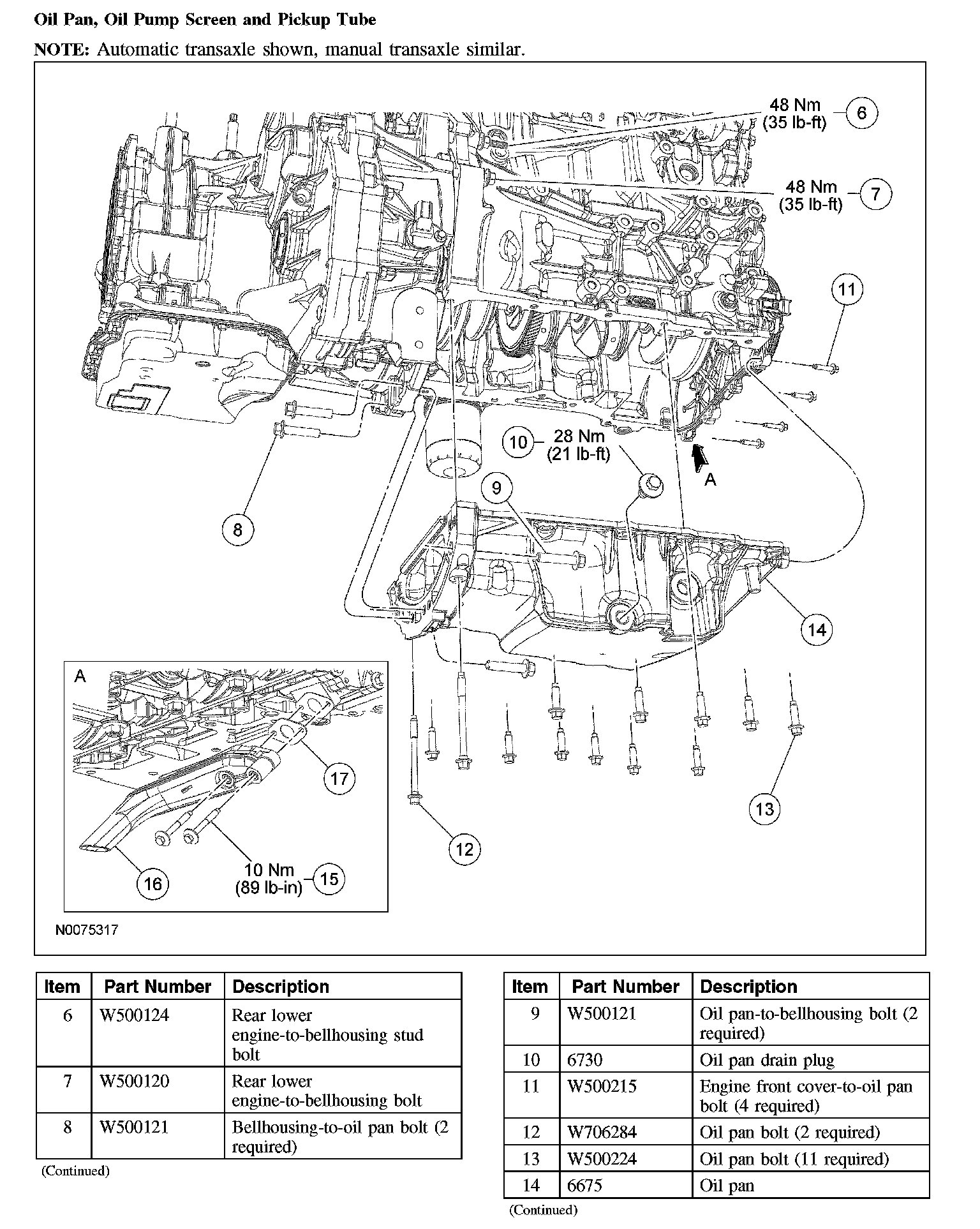

Oil Pan, Oil Pump Screen and Pickup Tube (Part 1):

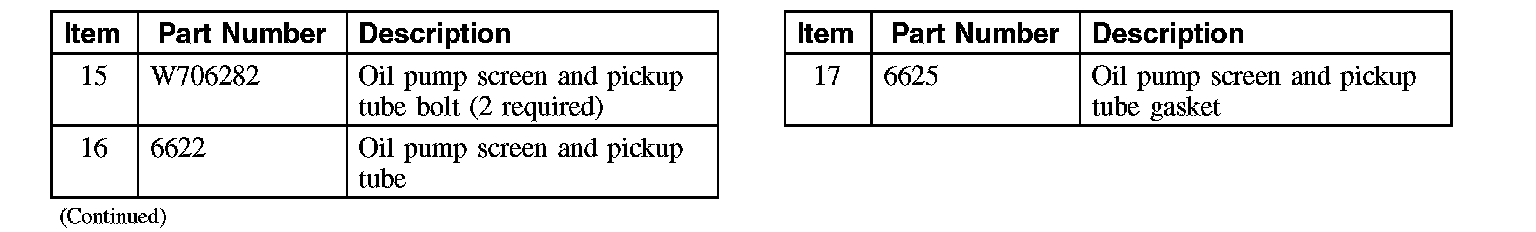

Oil Pan, Oil Pump Screen and Pickup Tube (Part 2):
