Ford
>>
2008
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Drive Belt
Drive Belt

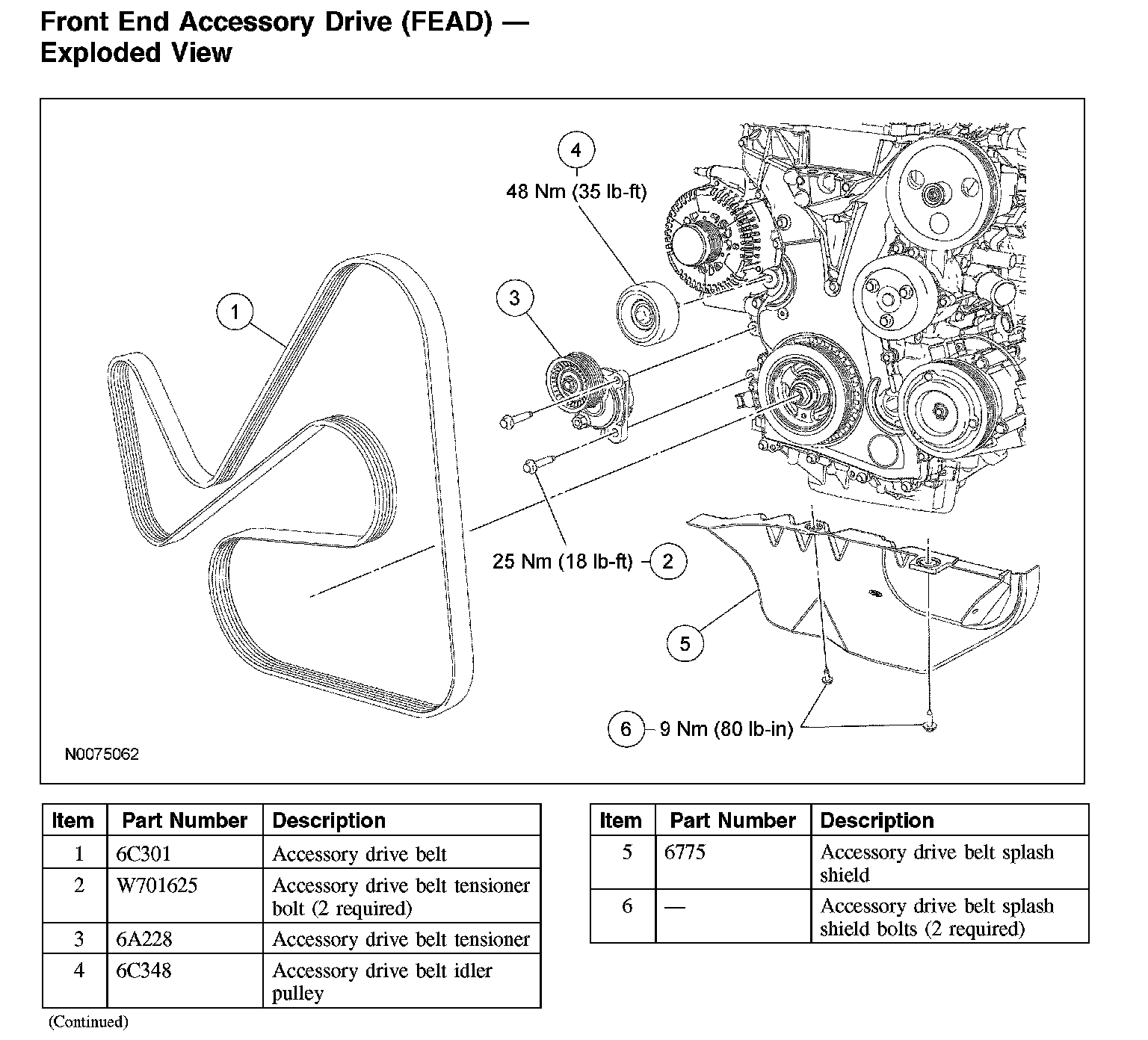

Front End Accessory Drive (FEAD) Exploded View
Front End Accessory Drive (FEAD) - Exploded View:
