Ford
>>
2008
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Master Window Adjust Switch
Master Window Adjust Switch

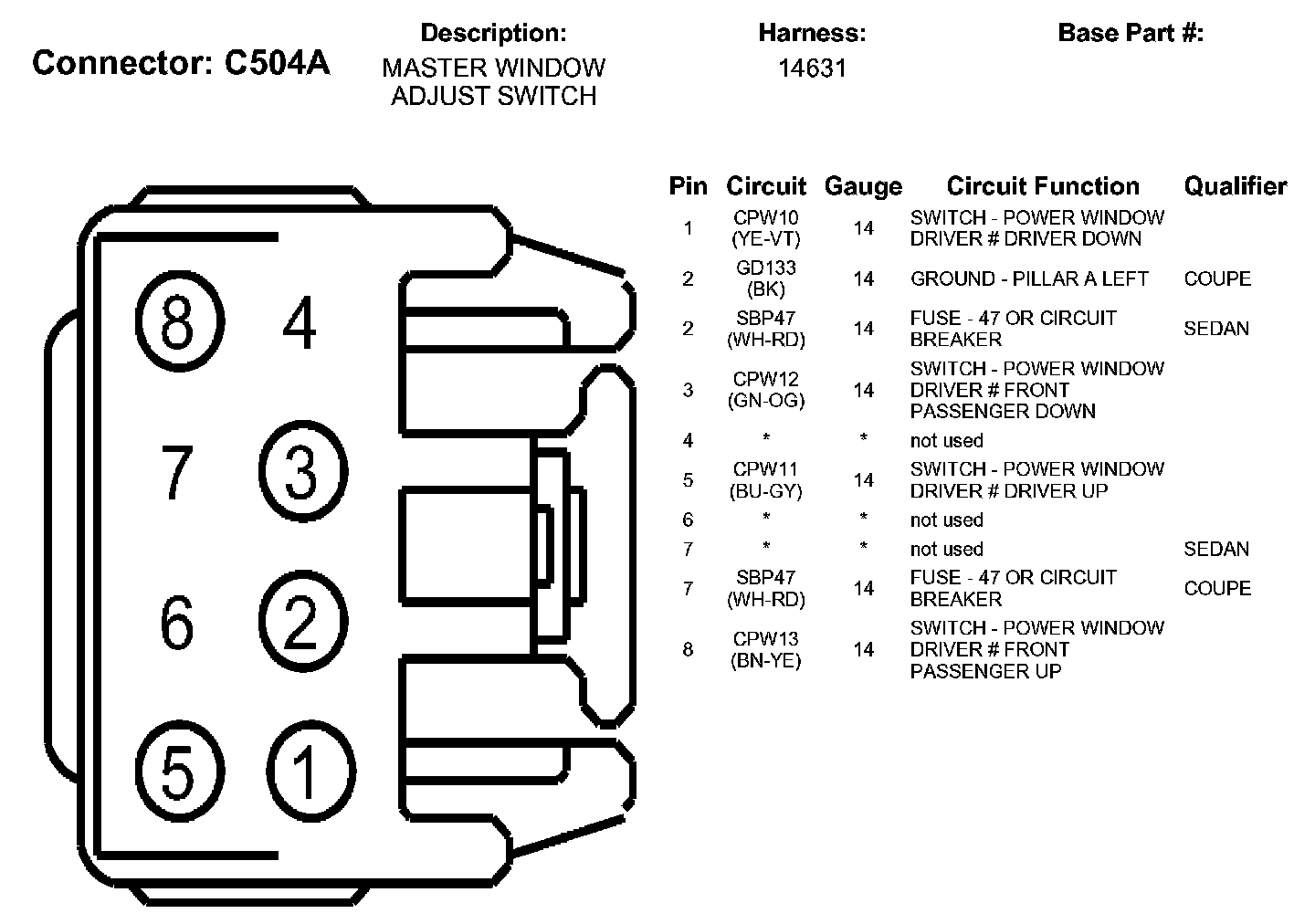

C504A:

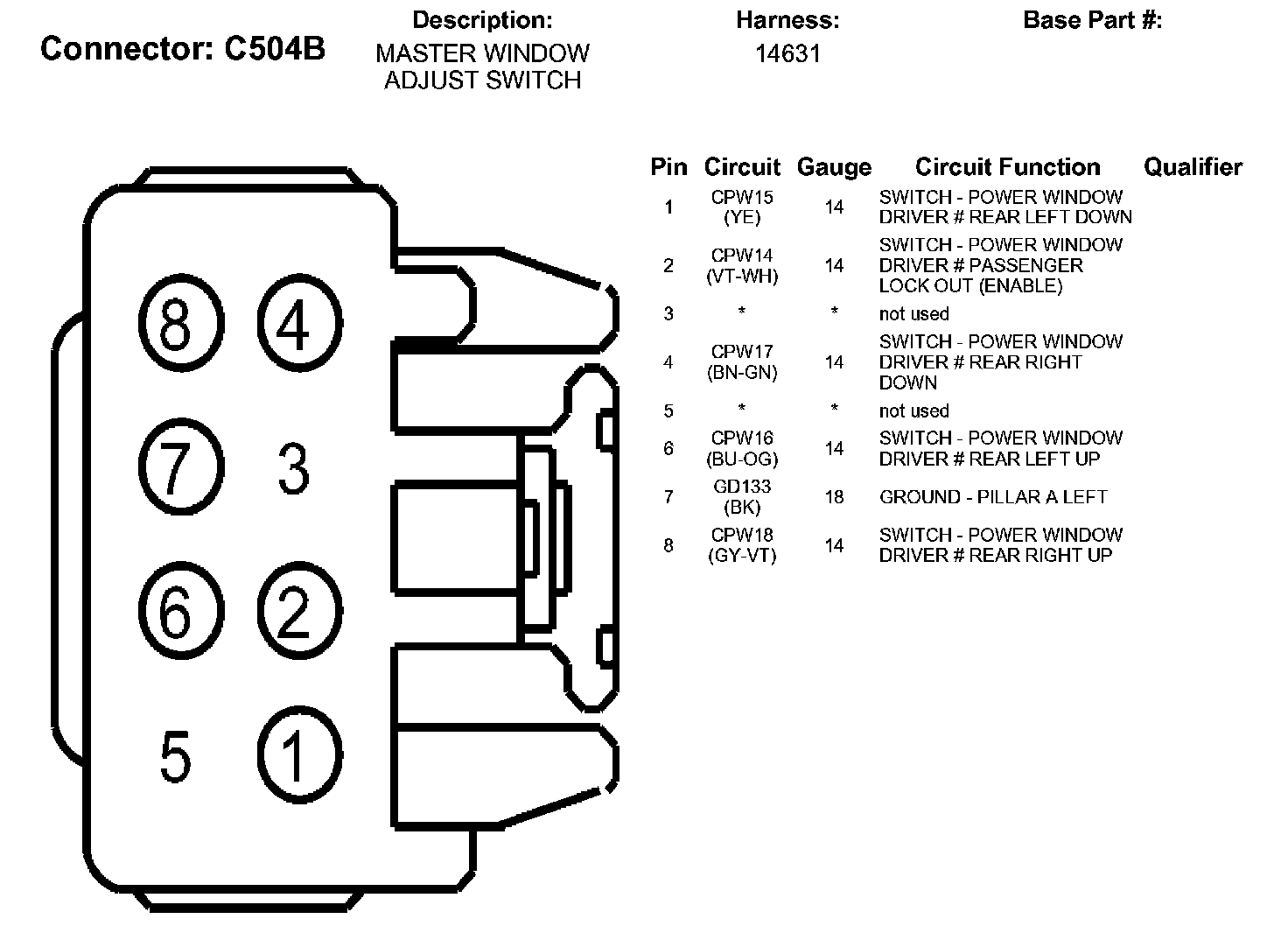

C504B:
