Home >> Ford >> 2008 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C340

C340

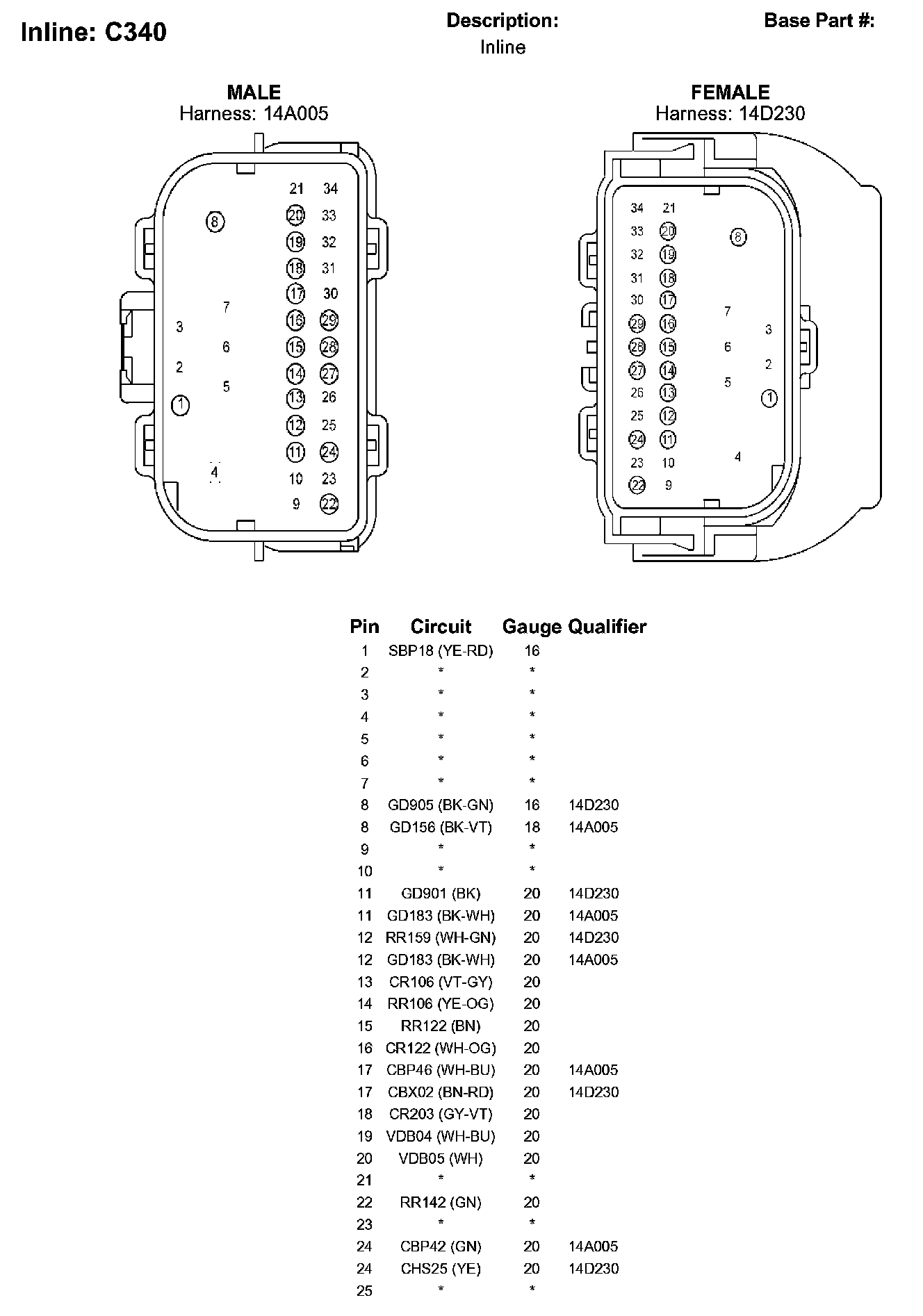

C340 (Part 1):

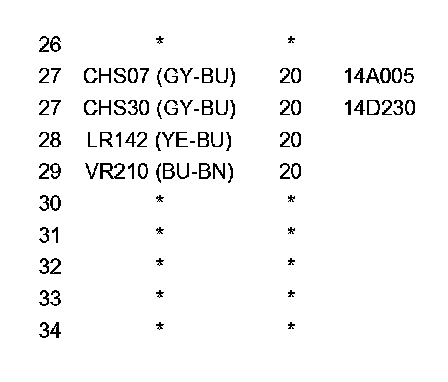

C340 (Part 2):
