Home >> Ford >> 2008 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Accessory Protocol Interface Module (APIM)

Accessory Protocol Interface Module (APIM)

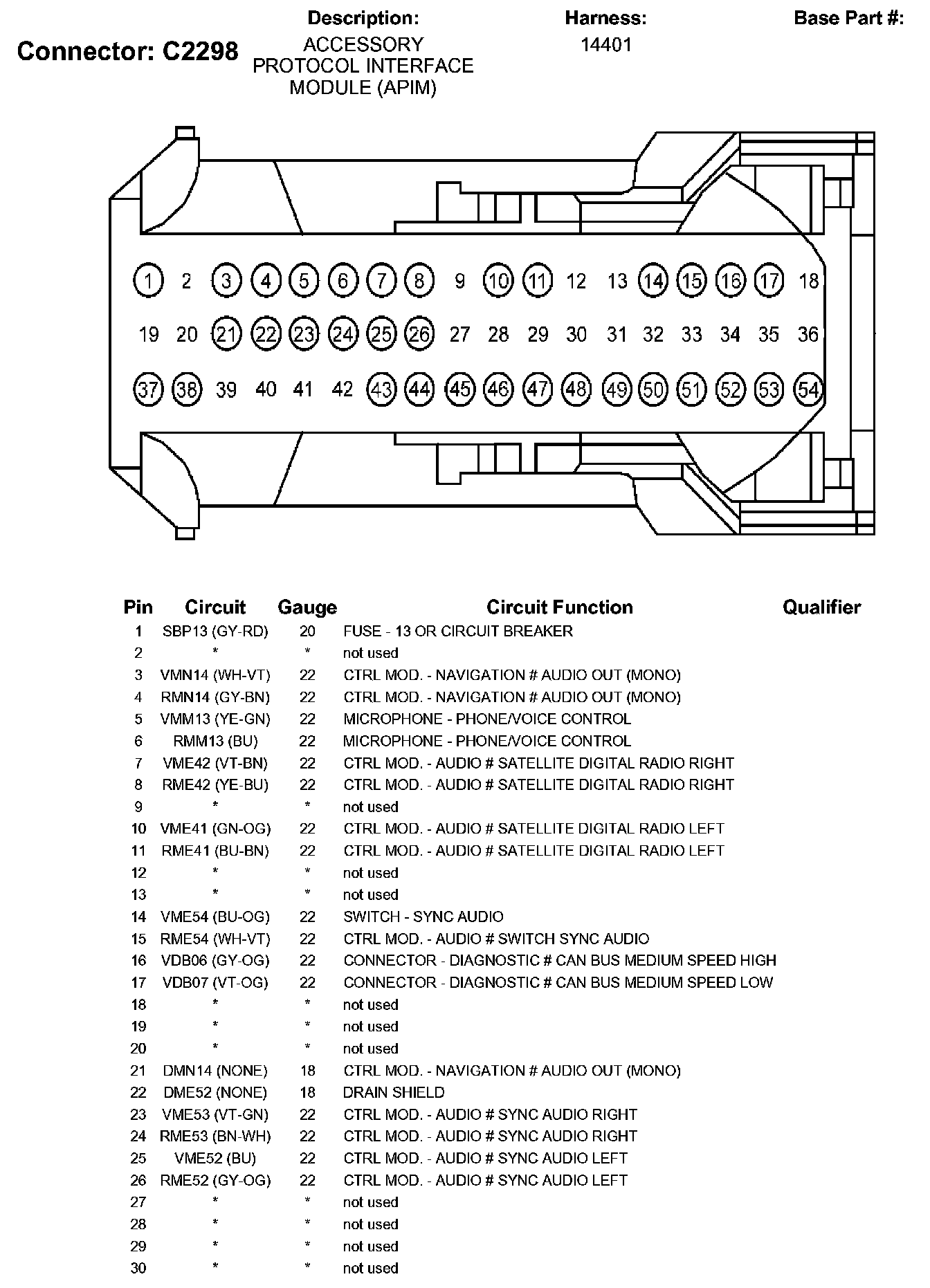

C2298 (Part 1):

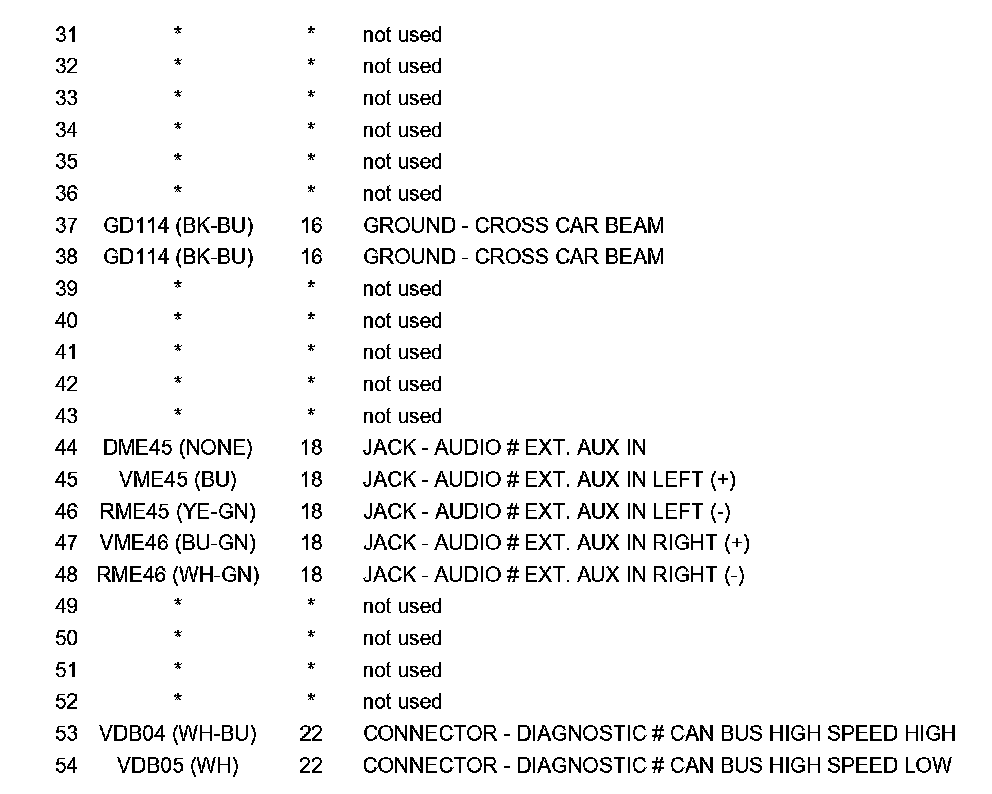

C2298 (Part 2):
