Ford
>>
2008
>>
Explorer 2WD V8-4.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Module Communications Network
Module Communications Network

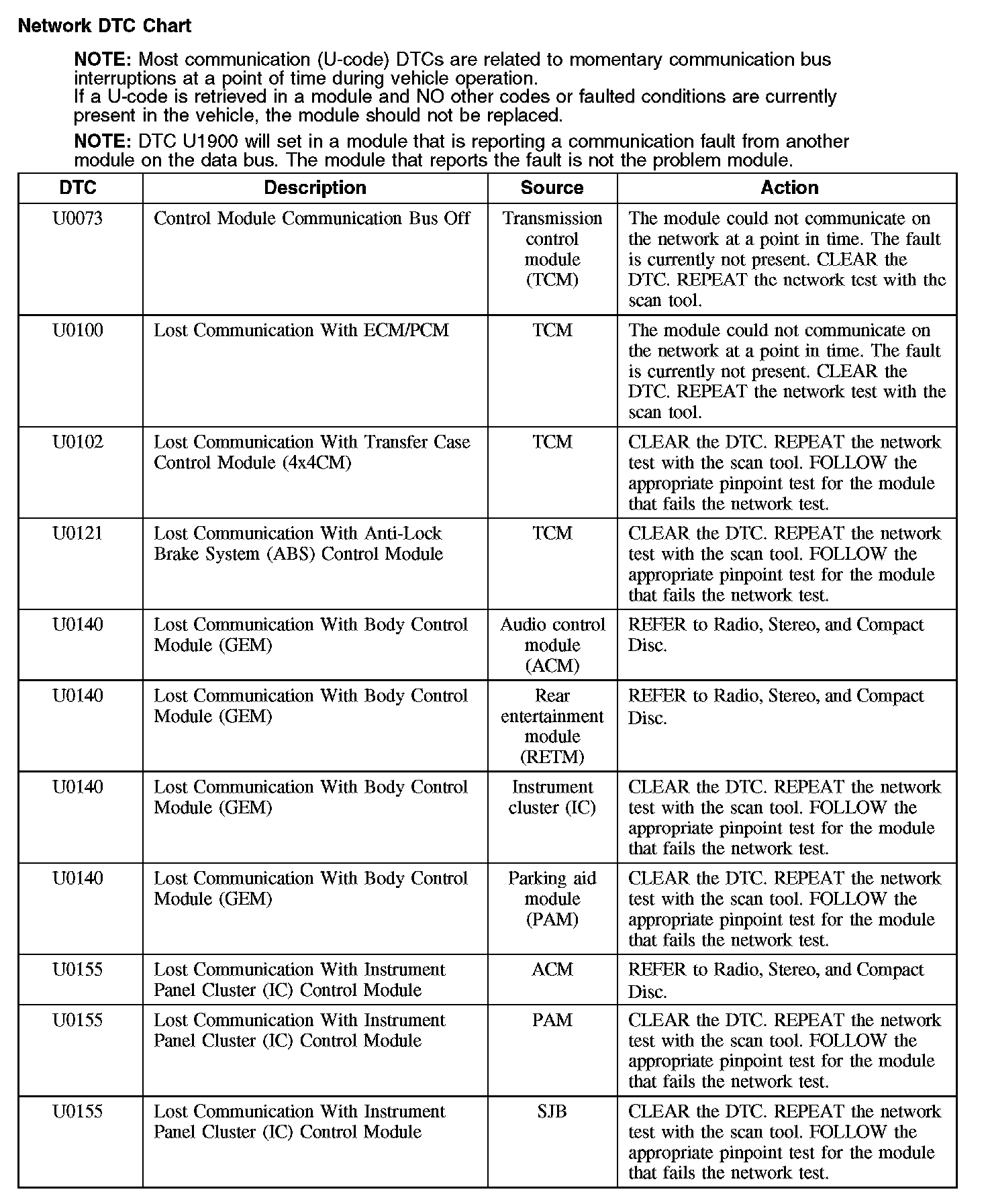

U0073-U0155:

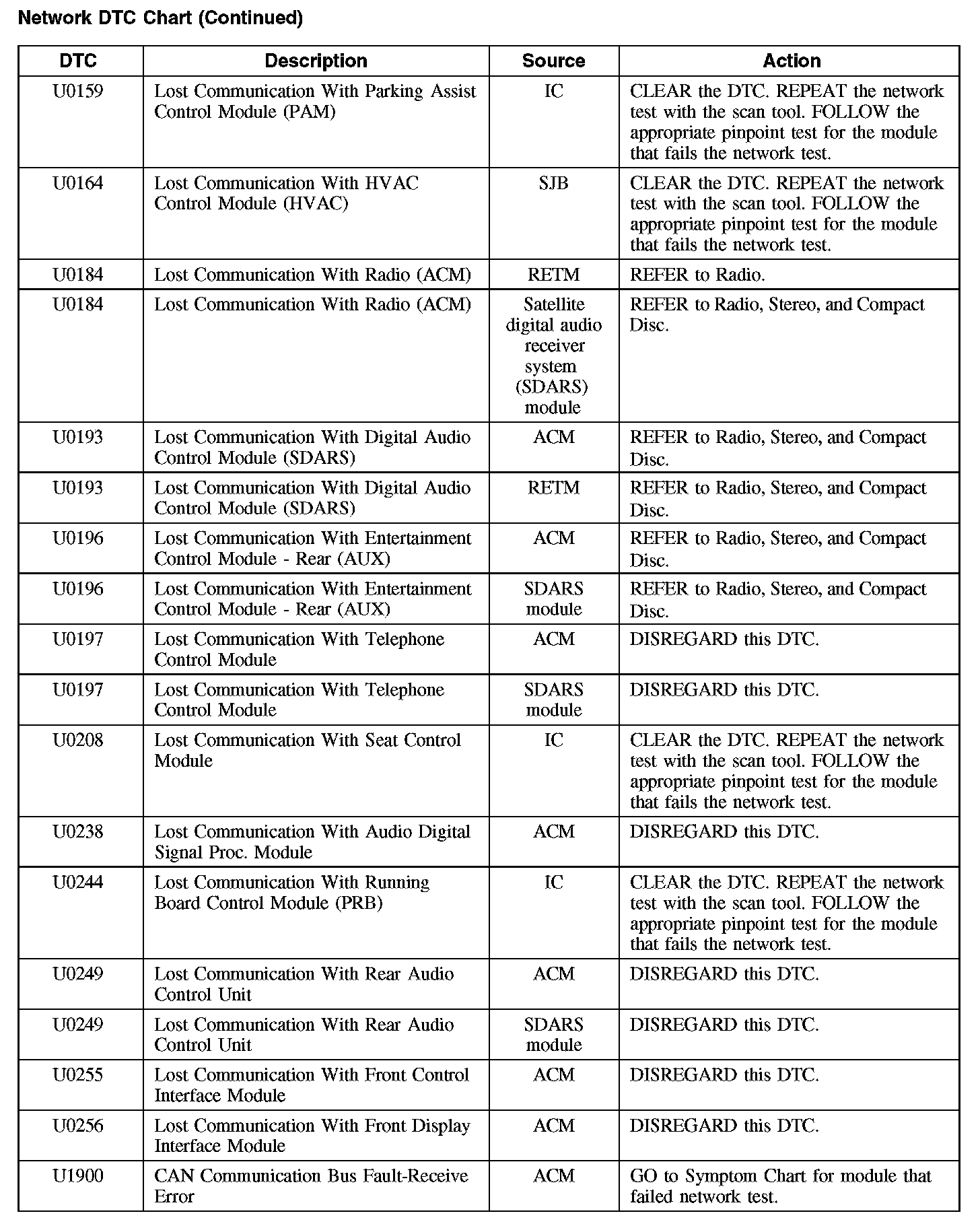

U0159-U1900:

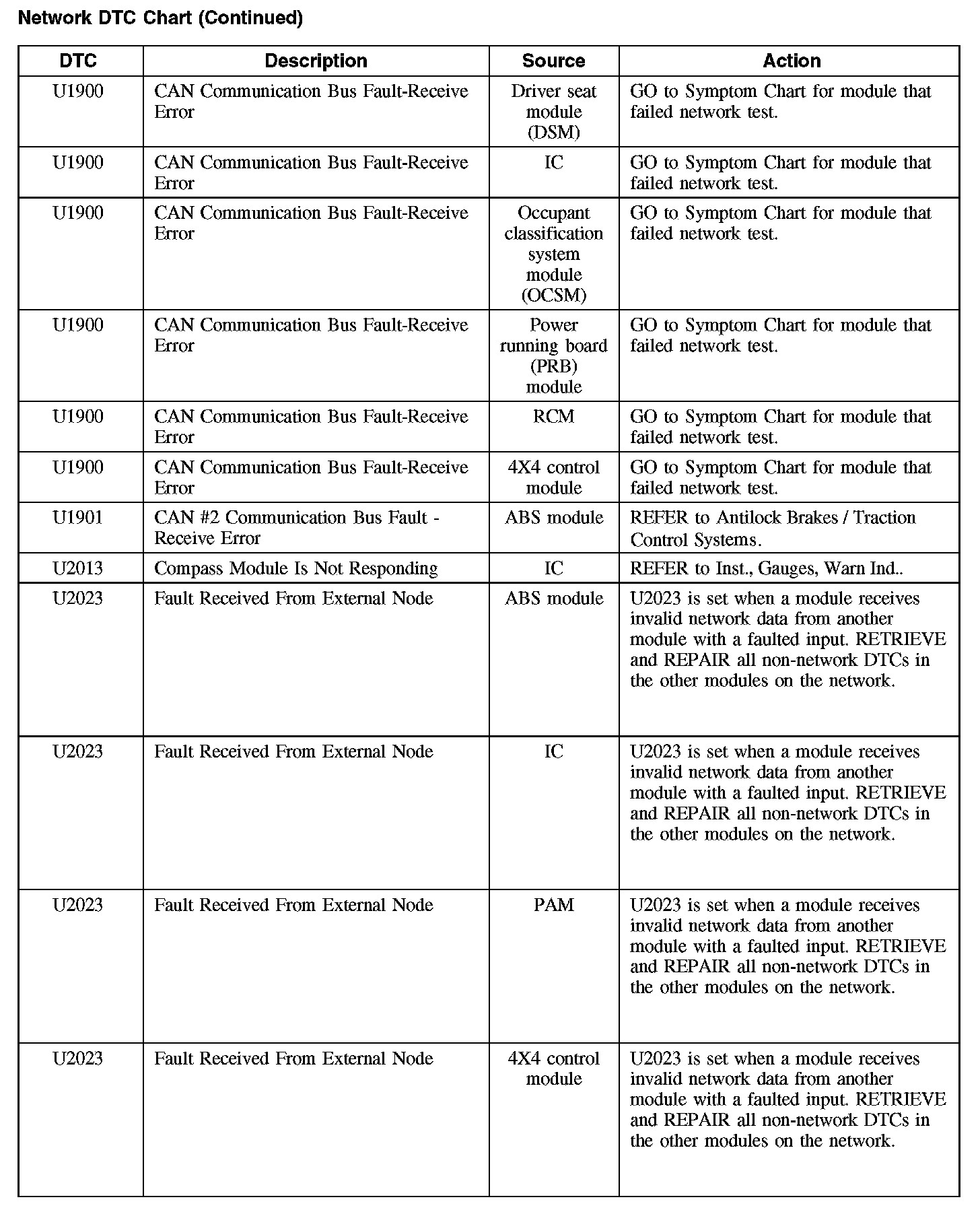

U1900-U2023:

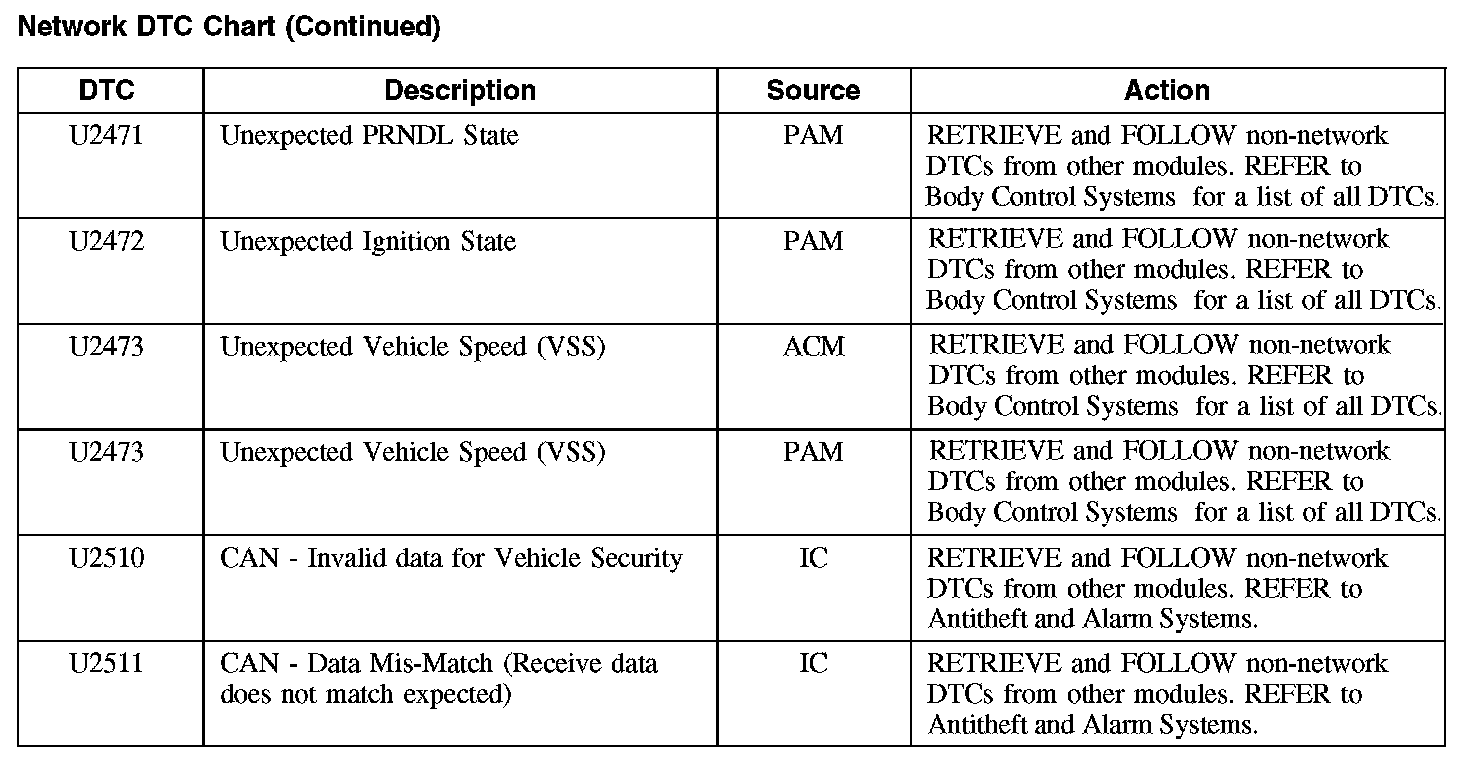

U2471-U2511:
