Compression Check: Specifications
AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.Compression Test - Test Results
The indicated compression pressures are considered within specification if the lowest reading cylinder is at least 75% of the highest reading.

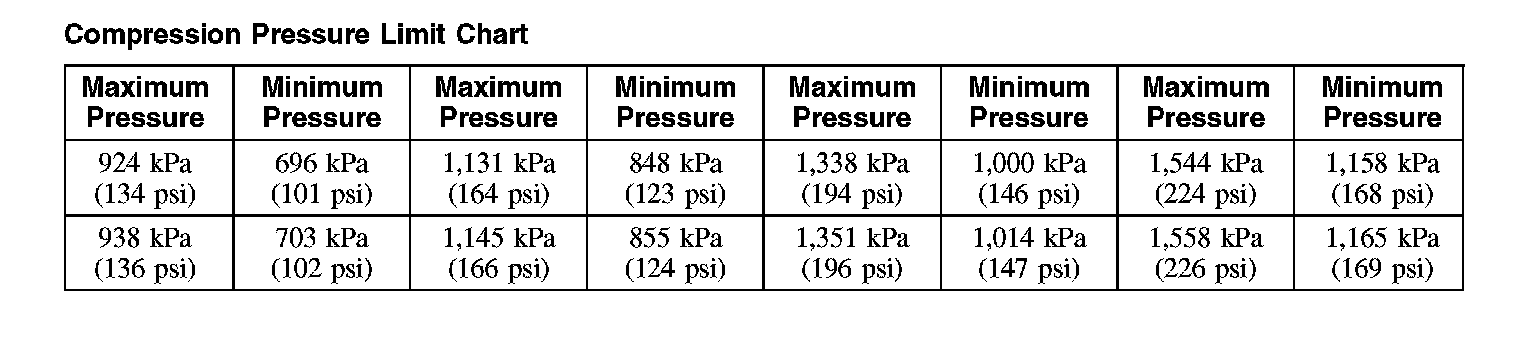

Compression Pressure Limit Chart (Part 1):

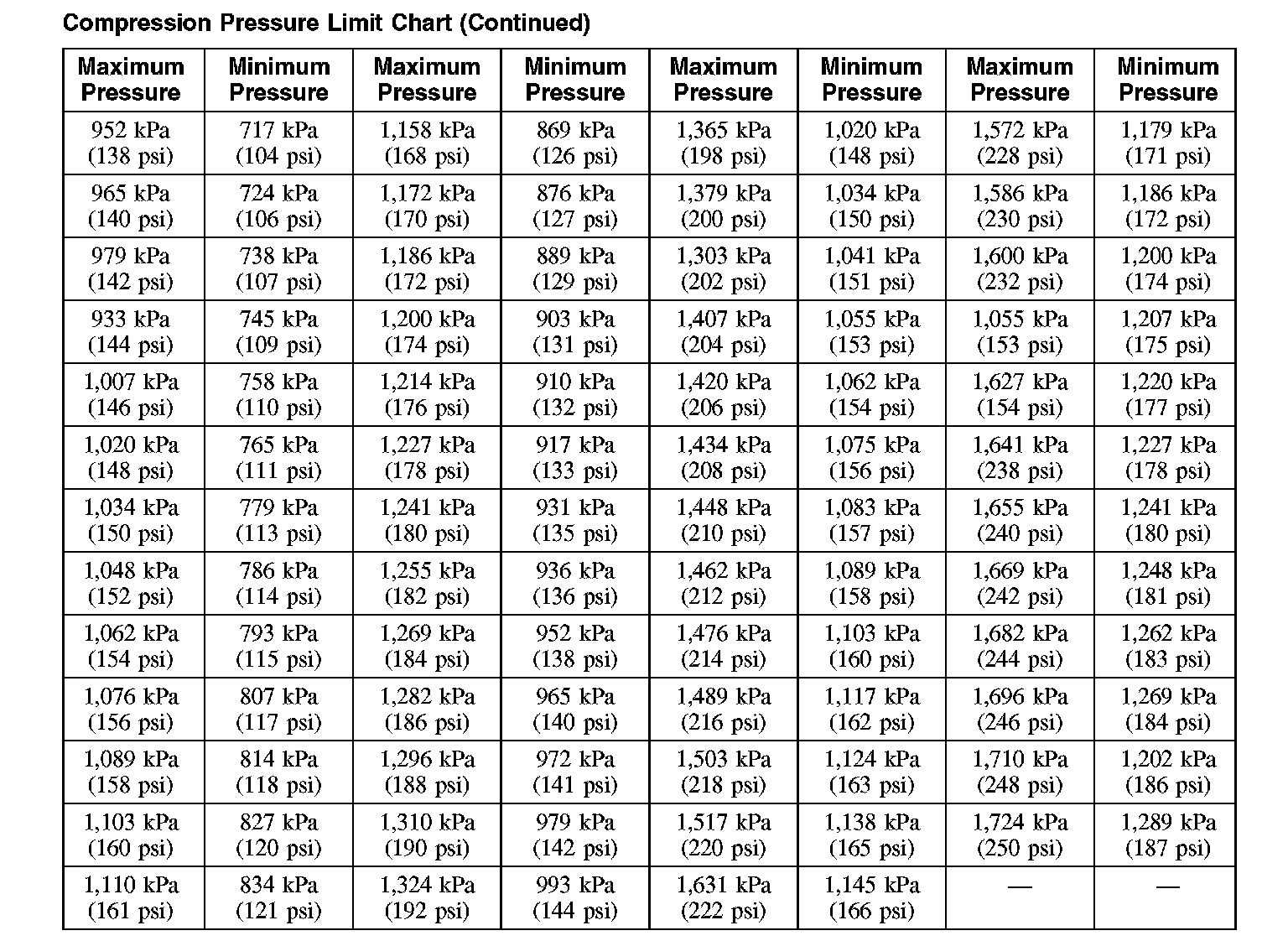

Compression Pressure Limit Chart (Part 2):
