Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR







Removal and Installation

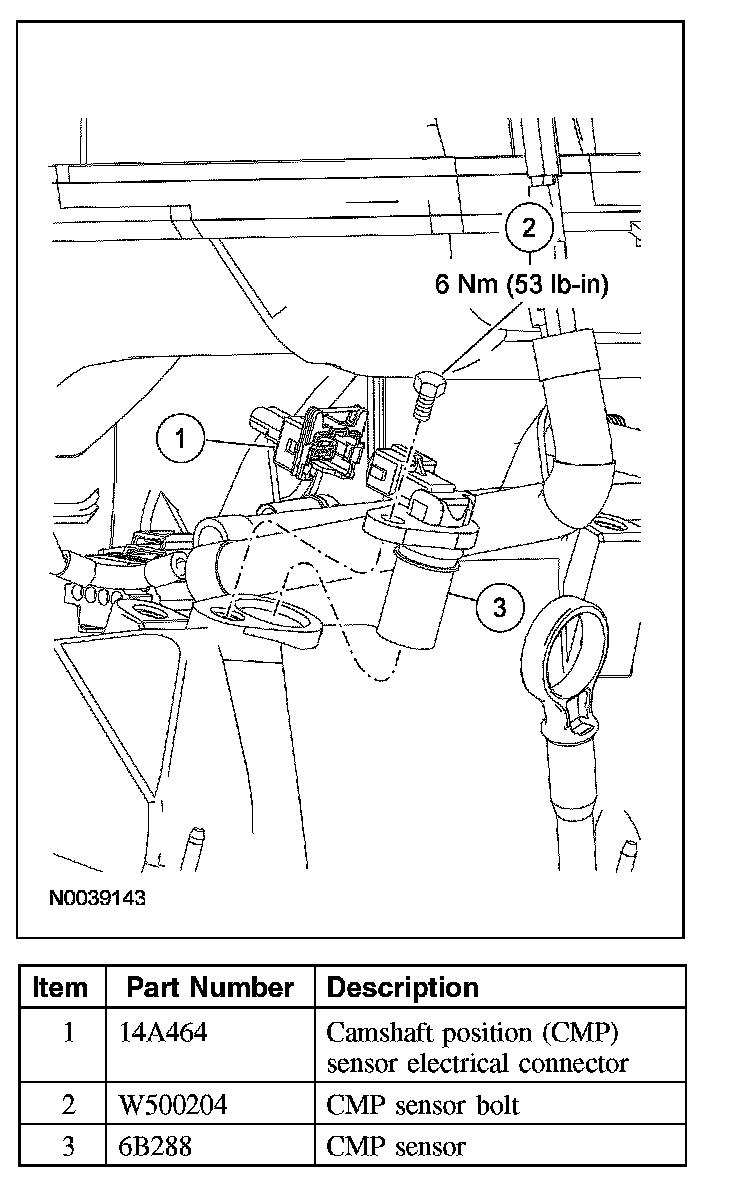

1. Disconnect the camshaft position (CMP) sensor electrical connector.
2. Remove the bolt and the CMP sensor.
- To install, tighten to 6 Nm (53 lb-in).

3. To install, reverse the removal procedure.
