Drive Belt: Service and Repair

Accessory Drive Belt - 4.0L SOHC

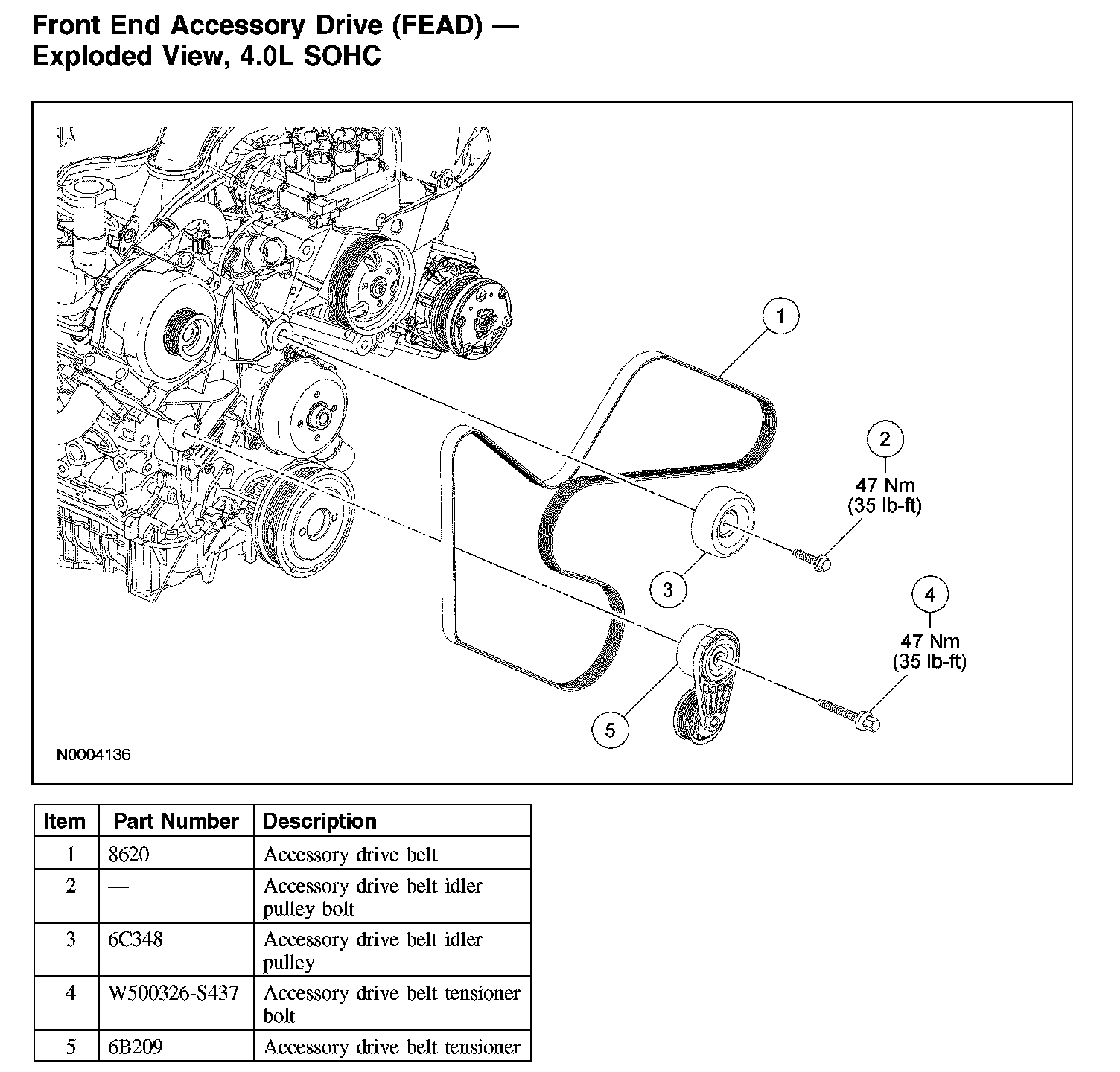

Front End Accessory Drive (FEAD) - Exploded View, 4.0L SOHC:

Removal and Installation
1. Rotate the accessory drive belt tensioner counterclockwise and remove the drive belt.





2. To install, reverse the removal procedure.
