Thermostat, Engine Cooling
Thermostat, Engine Cooling

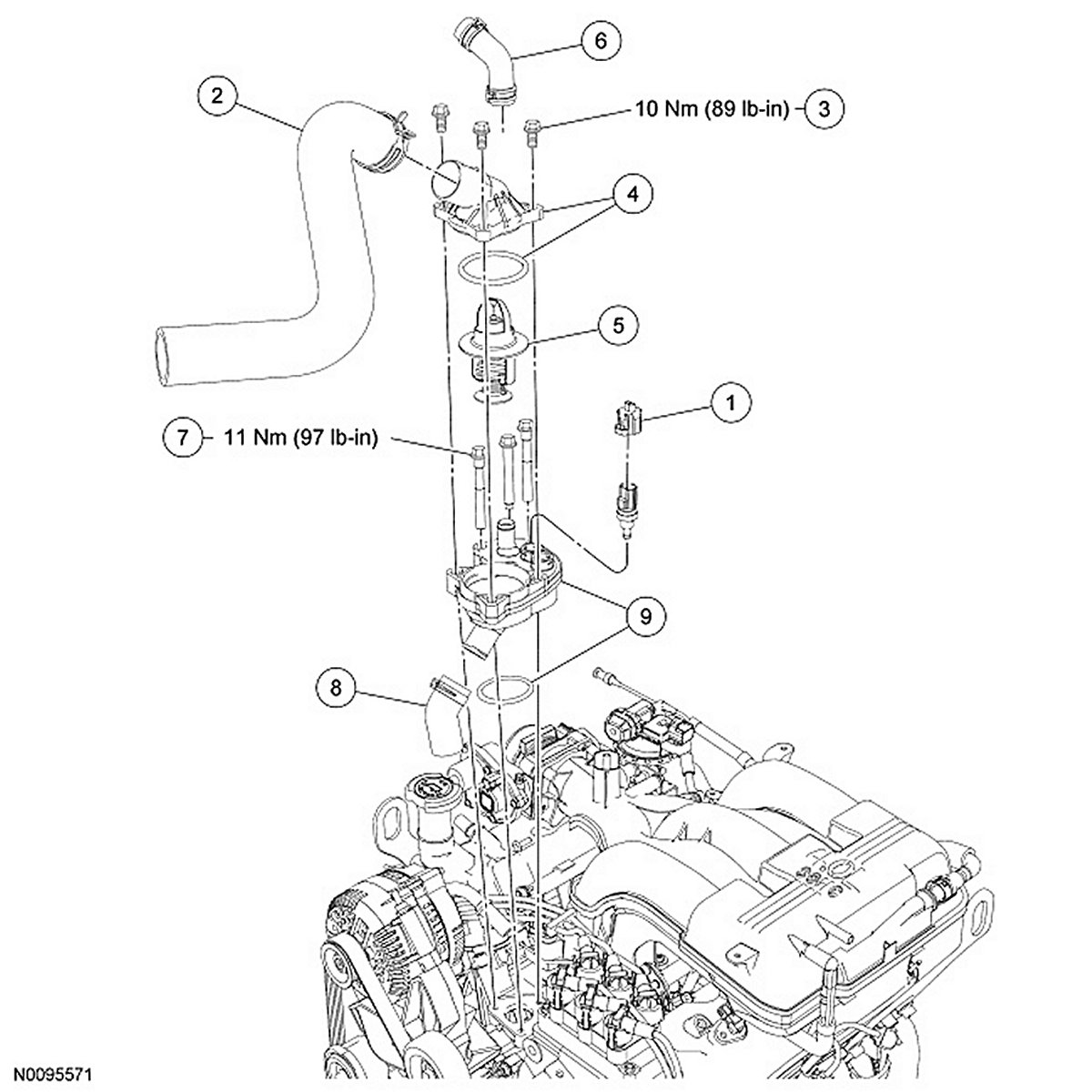

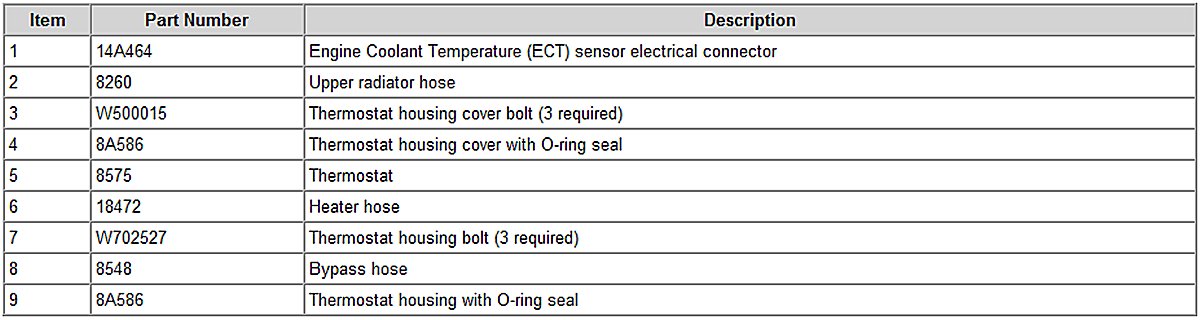

Exploded View, 4.0L SOHC (1 Of 2):
Exploded View, 4.0L SOHC (2 Of 2):
