lemon-mirror
:
Home
>>
Ford
>>
2008
>>
Expedition 4WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Front Drive Axle/Differential
>>
Axle
Axle
Axle

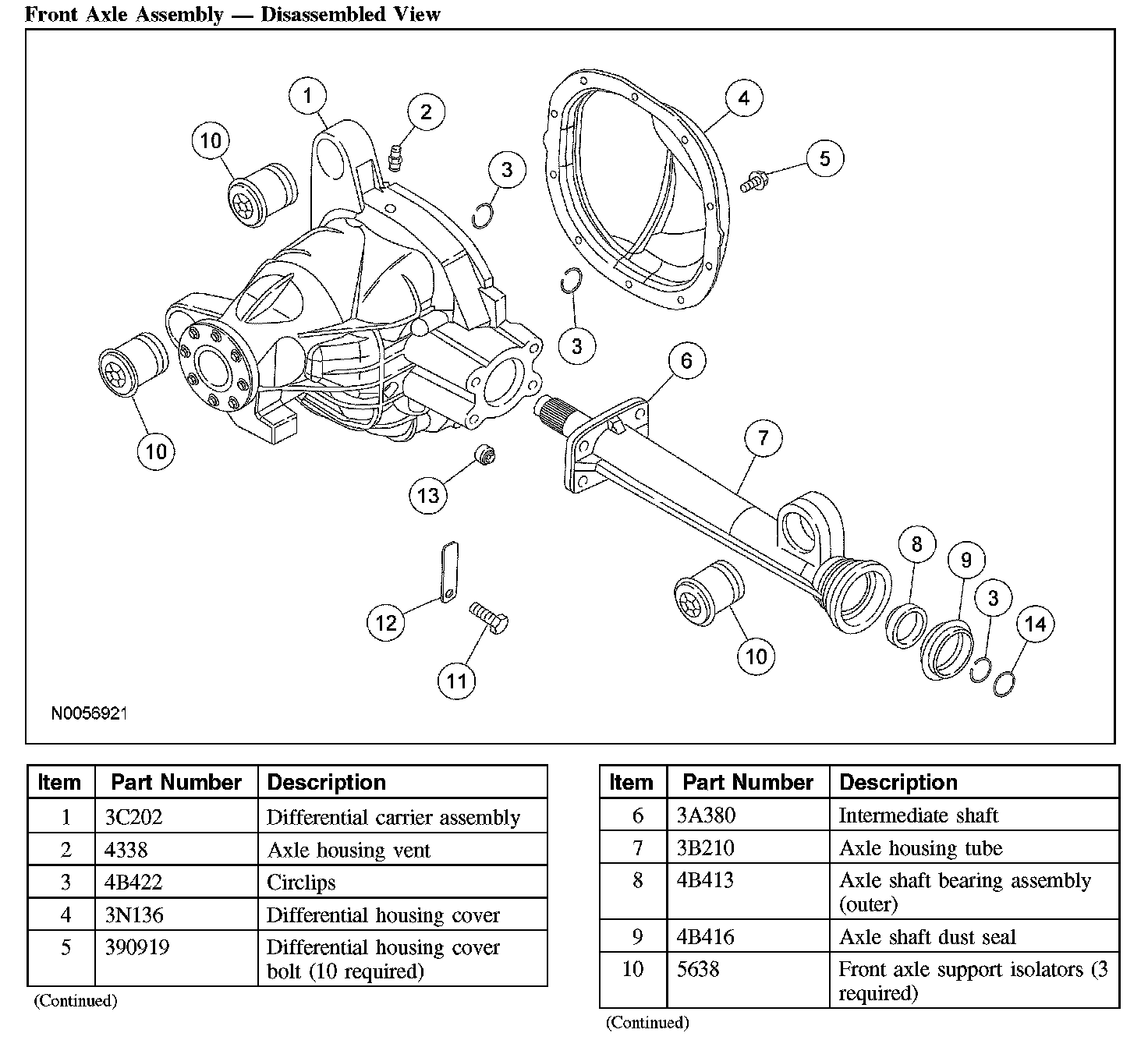

Front Axle Assembly - Disassembled View (Part 1):

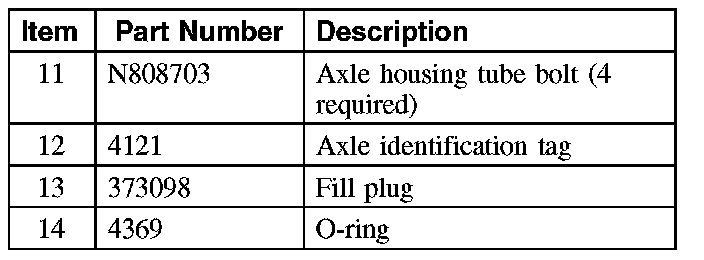

Front Axle Assembly - Disassembled View (Part 2):
