Entertainment System Control Module
>>
Rear Entertainment Module (RETM)
Rear Entertainment Module (RETM)

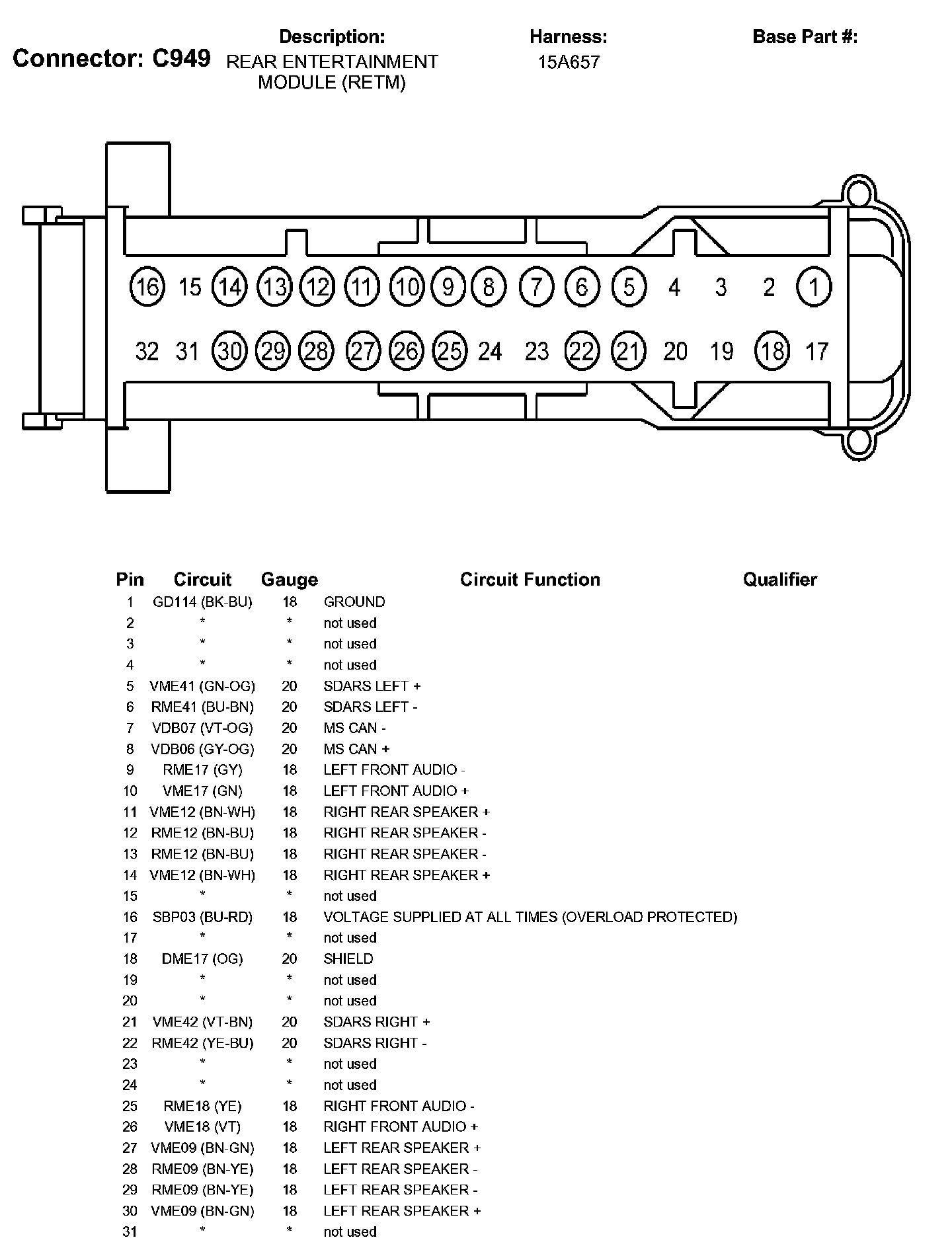

C949 (Part 1):

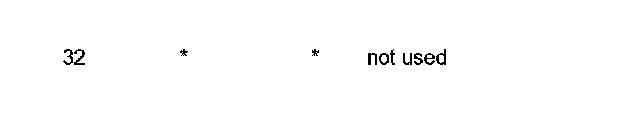

C949 (Part 2):
